Factory-integrated LED light bars built into OEM-style mirror caps for 2015-2020 Ford F-150 and Raptor. See the trail on both sides - not just what's ahead.
Product Overview

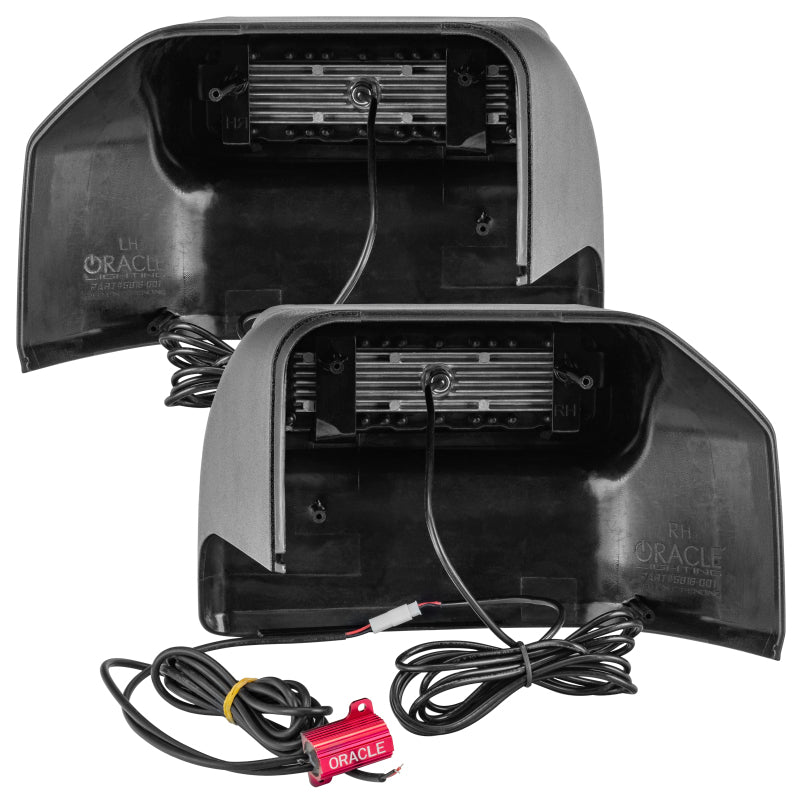

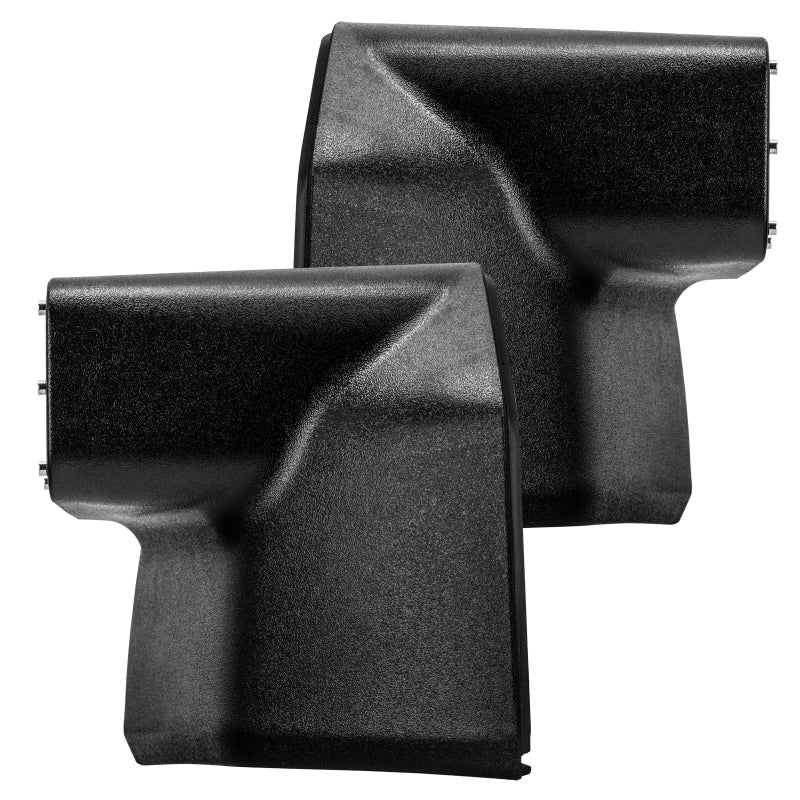

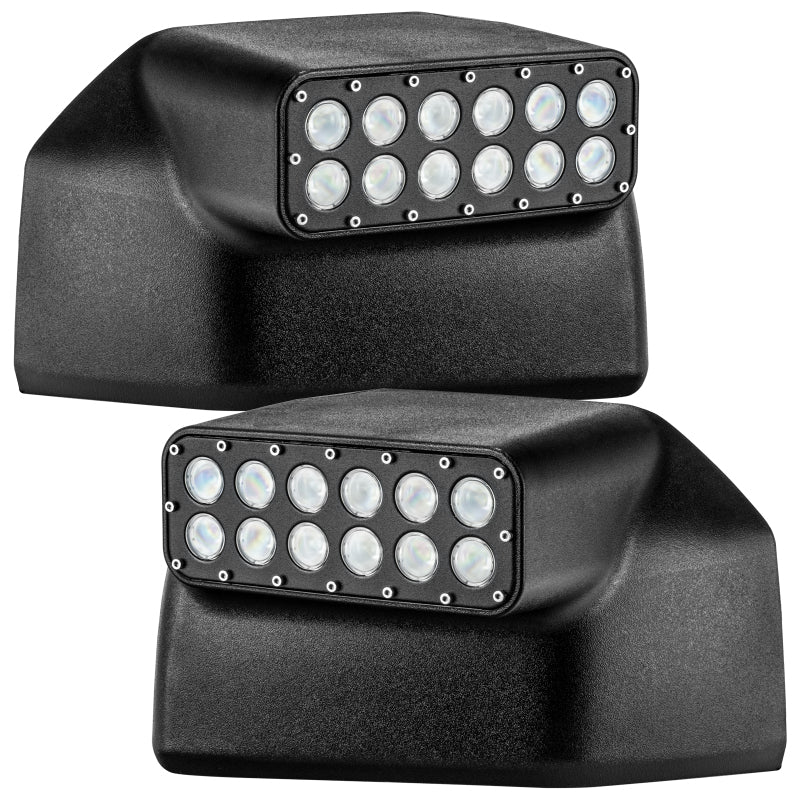

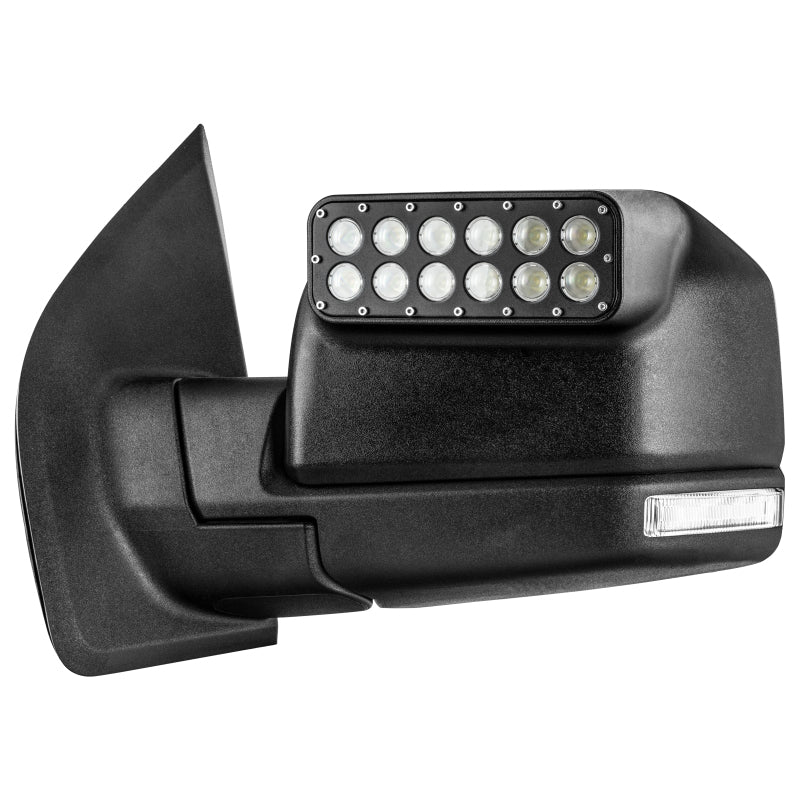

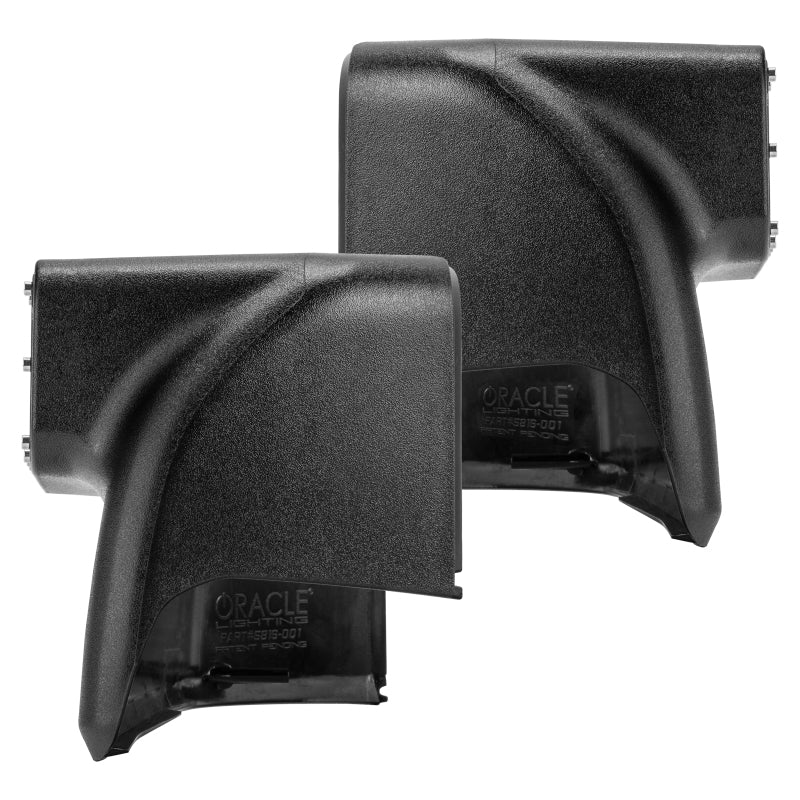

This innovative product from ORACLE Lighting features a set of high-powered LED light bars integrated into factory-style side mirror caps for 2015-2020 Ford F-150 trucks and Raptor models. The result is easy installation, a clean near-OEM appearance, and functional peripheral illumination that actually matters on the trail.
Factory headlights and most auxiliary lights only illuminate the area directly in front of the vehicle. For off-road use - trail riding, desert running - the driver also needs to clearly see the sides of the trail to spot obstacles before they become hazards. The side mirror is the only part of the truck already in your field of vision while driving, making it the ideal platform for targeted peripheral lighting.
ORACLE Lighting is the original designer of this product. Do not be fooled by lower-quality copies - Chinese imitations do not match the illumination output, build quality, or durability of the original ORACLE design.
Looking for the 2009-2014 F-150 version?
Key Features
- 24x 1W Cree LEDs for powerful, efficient output
- 2,200 lm total light output
- 45° beam angle optimized for peripheral driver visibility
- Advanced DBM Reflex LED optics focus light for maximum effectiveness from the driver seat
- Installs using factory mirror mounts - no drilling or modifications
- 6000K cool white color temperature
- Multiple aluminum heat sinks with passive airflow cooling
- Anodized rock guards protect the LED acrylic lenses
- Polycarbonate housing - 2x stronger than factory ABS
- 2-Year Warranty
- Trademarked ORACLE design
Will not fit F-150 vehicles equipped with Tow Mirrors.
Performance & Technical Specifications
-
LED Count: 24x 1W Cree LEDs (per pair)
-
Total Lumen Output: ~2,200 lm
-
Beam Angle: 45°
-
Color Temperature: 6000K
-
Power Draw: 2 Amps
-
Housing Material: Polycarbonate (2x stronger than OEM ABS)
-
Lens Protection: Anodized rock guards
-
Optics: DBM Reflex LED optics
-
Cooling: Multiple aluminum heat sinks with passive airflow
-
Mount Type: Factory OEM mounts
-
Warranty: 2 Years
Vehicle Fitment
- 2015-2020 Ford F-150 (all trims)
- 2015-2020 Ford F-150 Raptor
Not compatible with Tow Mirror-equipped vehicles.
What's Included
- 1x Driver Side ORACLE 2015-2020 Ford F-150/Raptor LED Off-Road Side Mirror Cap
- 1x Passenger Side ORACLE 2015-2020 Ford F-150/Raptor LED Off-Road Side Mirror Cap
