SKU: SKU: BAJ524003

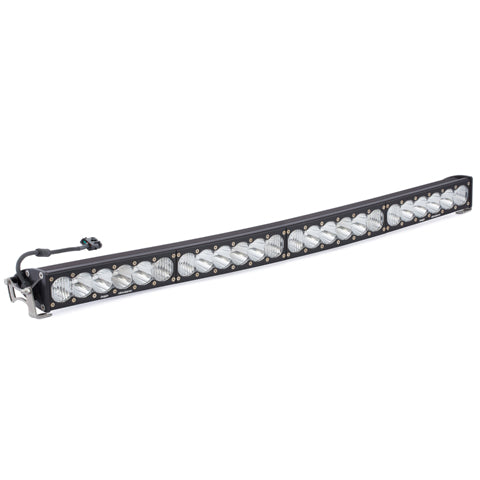

The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 40 |
| Weight (lbs.) | 15.05 |
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,220 (High); 32,760 (Low) |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 40 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 340 (High); 284 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Installation Instructions
Brochure / Owner's Manual
WARNING: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
