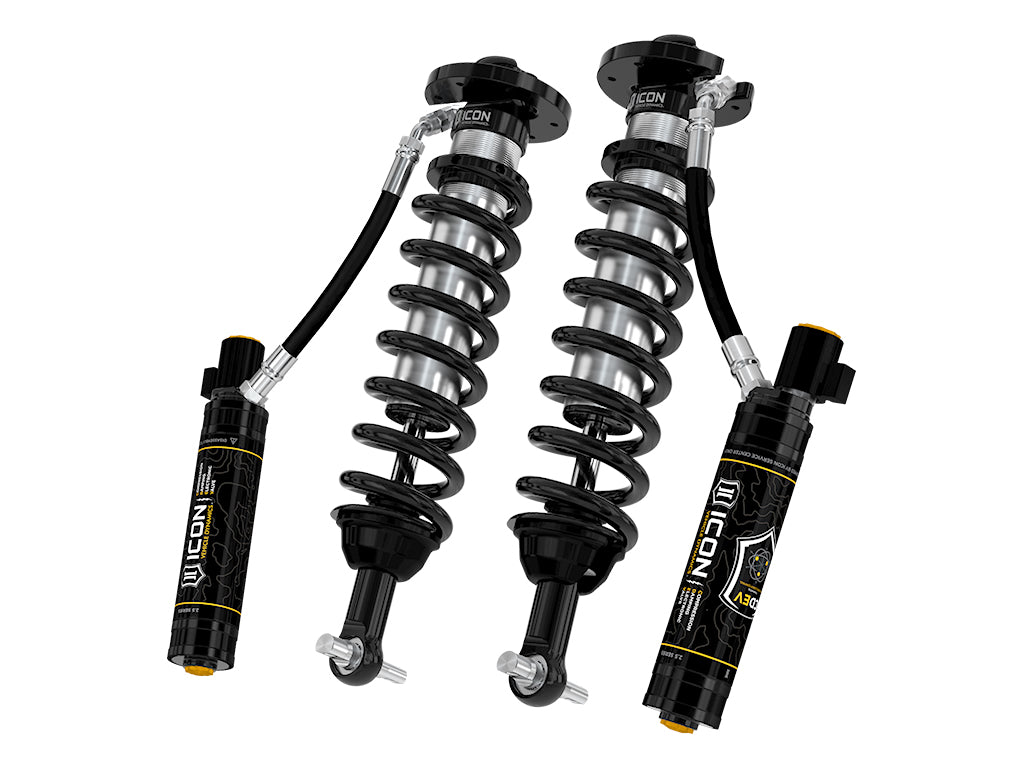

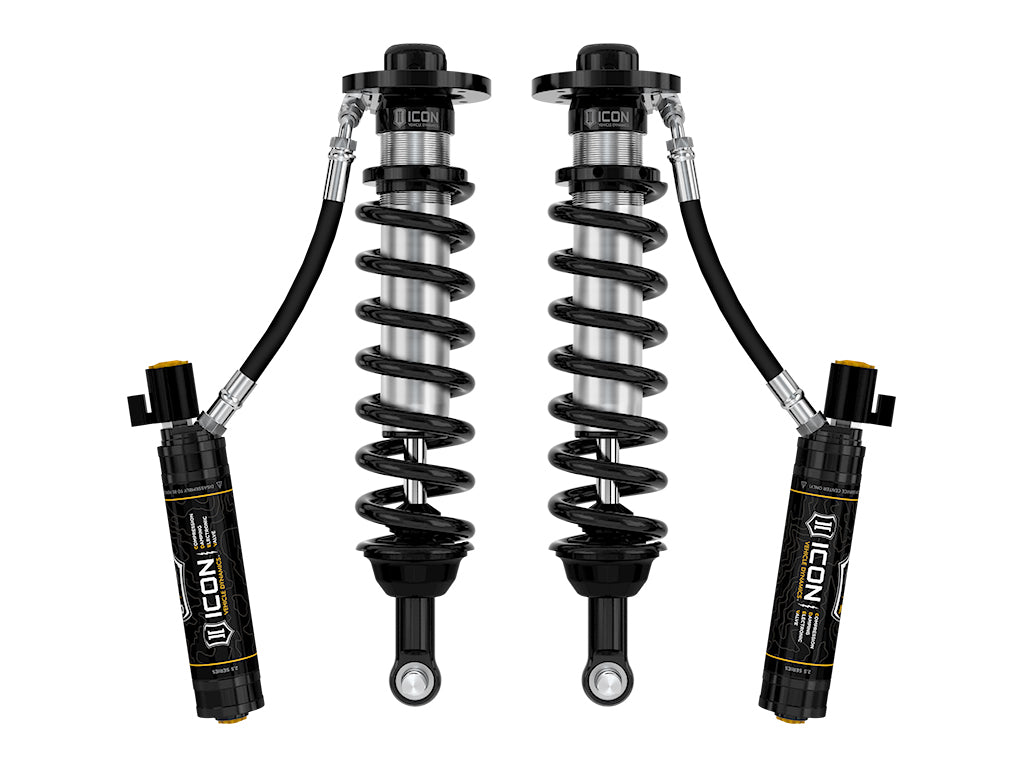

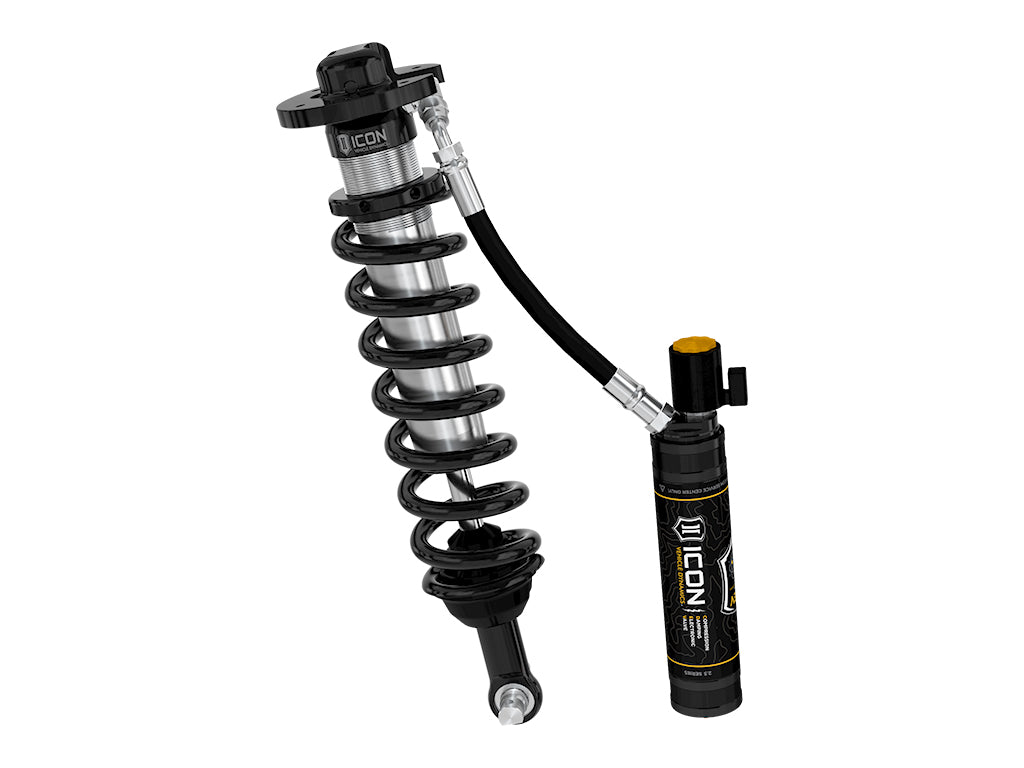

ICON 22-23 Ford F150 Lightning Lowered Front 2.5 VS RR CDEV Coilover Kit - 91831E

Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-2023 Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable front lowered height range of 0-2" under stock. With ICON's vehicle specific shock length, valving, and the larger 2.5" shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components.

Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning.

Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV rear coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.

Features

• Height-adjustable coilovers offer 0-2" of lowered height adjustment
• Vehicle specific tuned front shocks for superior shock damping and vehicle control
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Remote reservoir to maintain cooler operating temperatures and house CDE Valves
• Increased compression travel compared to stock
• ICON engineered coil springs with opmized spring rates for improved ride quality
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• High strength alloy CNC machined lower bar pins
• FK Rod End bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no cutting or welding necessary for installation

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: 20x9" w/ 6” Backspace / 25mm Offset

Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications may be required)

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LOWERED HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.

TECH NOTE: Also requires installation of IIC kit (Part # 93501) and CDEV rear coilovers (Part # 91836E)

Specifications

Documents

• I91831E_REVA.pdf
