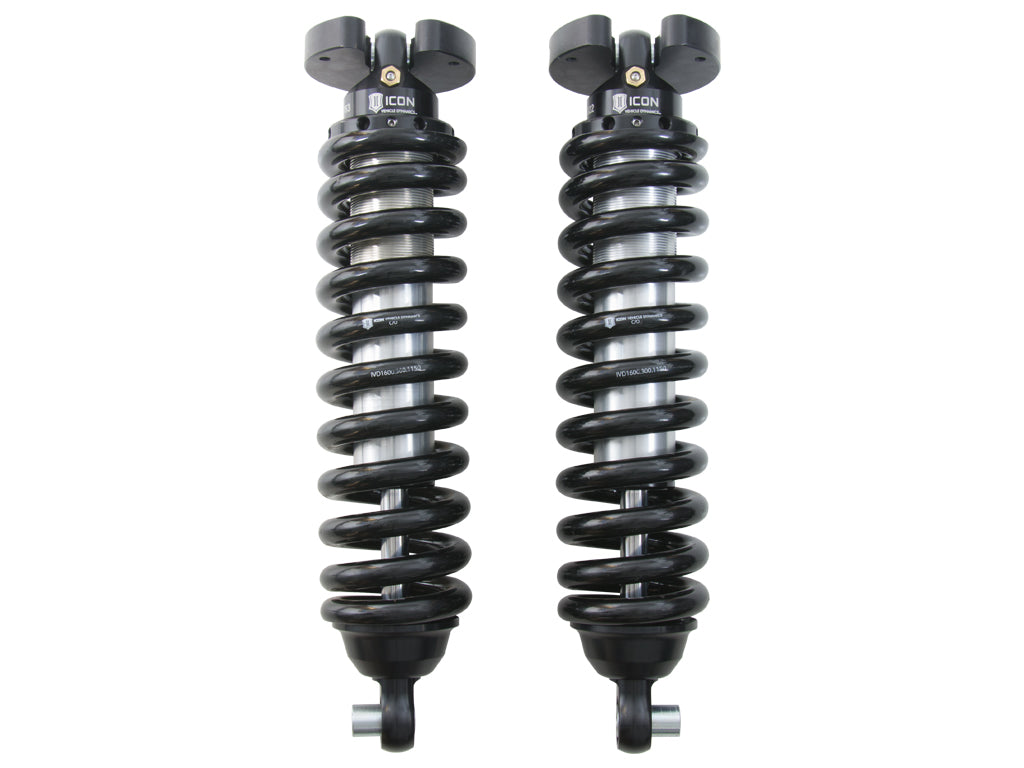

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2016-2023 Nissan Titan XD. These adjustable coilovers allow up to 2.5-3” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Nissan Titan XD.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33 x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping | No |
| Adjustable Height | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 16.03 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Extended Length | 20.98 IN |
| Gas Charged | Yes |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Lift | 3 IN |
| Minimum Lift | 2.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Rate Type | Linear |
| Travel Length | 4.96 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
