SKU: SKU: HKS80310-AT008
Application
Specifications

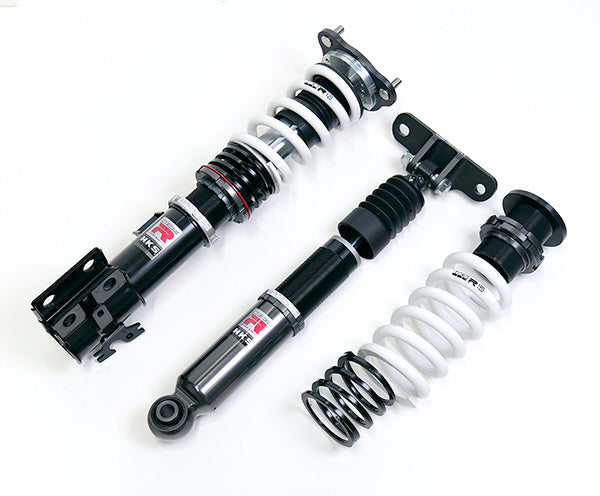

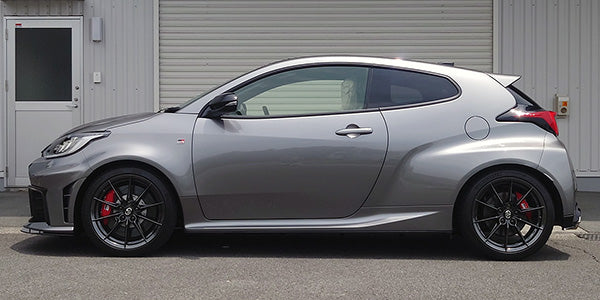

GR YARIS GXPA16 The fun of controlling it at will and the versatility to adapt to anything from circuits to winding roads. Refine your ride with ease (the ultimate multi-performer) With the body rigidity increased in the Gen2, the damping characteristics have been reviewed. While pursuing responsiveness, even at the limit, gentle characteristics have been achieved. The rear spring rate has been increased compared to the previous model, and high roll rigidity and stability have been achieved for circuit driving with high-grip tires, a re-tuning has been performed so that you can step on the accelerator boldly even in high-speed corners. Assuming that the car will be driven to and from the circuit, we paid particular attention to suppressing high-rate thrust and vibration by adjusting the damping force to a softer setting. We tested the main course of Fuji Speedway with ADVAN A052 265/35-18. Excellent results were obtained with the front camber at -4°40’, front and rear toe out at 1.9mm, and the damping force dial set to 7 steps for the front and 6 steps for the rear. *Please use this as a reference when setting up. ▲The model in the photo is MT. Application Engine G16E-GTS Model Year 24/04 - Remarks MT Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Spherical bearing Inverted/Normal typ
Source: HKS Japan · Detail page
