SKU: SKU: HKS80300-AH011
S (-2025)
Application
Specifications

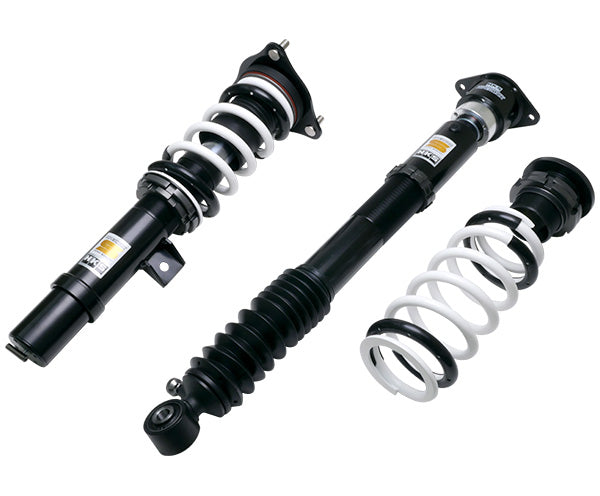

CIVIC FL1 HIPERMAX S, which has evolved damping force characteristics, durability, and aesthetics, offers the best "Driving Comfort" in the history of HKS suspension. The kit includes an upper plate positioning bolt for camber adjustment on the front side. It is fixed at the standard position of the stock, and the camber adjustment can be possible in plus or minus 0.5 deg. The product is set to a stable suspension; the roll speed has been optimized based on the setting that moves flexibly while increasing the roll rigidity with the inverted front suspension and increased spring rate. The setting is the best match for the powerful engine and solid body. Please enjoy the ride comfort that HIPERMAX produces. Application Engine L15C Model Year 21/09 - Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket × 〇 Upper mount Rubber Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Impossible Impossible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 646 ← 658 ～ 615 658 ～ 633 Against stock -30 ← -18 ～ -61 -18 ～ -43 REAR Ride height *1 649 ← 678 ～ 570 678 ～ 632 Against stock -30 ← -1 ～ -109 -1 ～ -47 *1. Height from road
