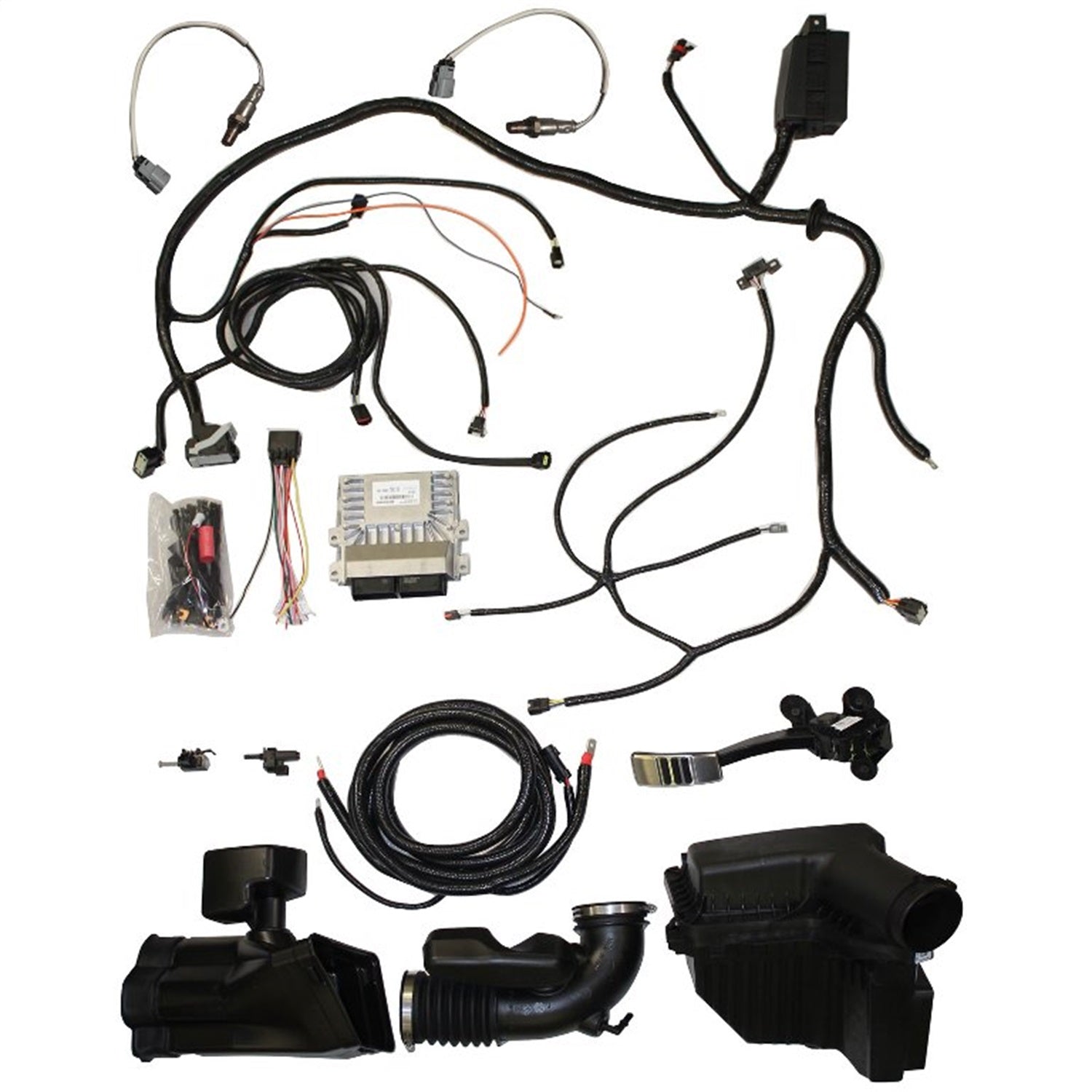

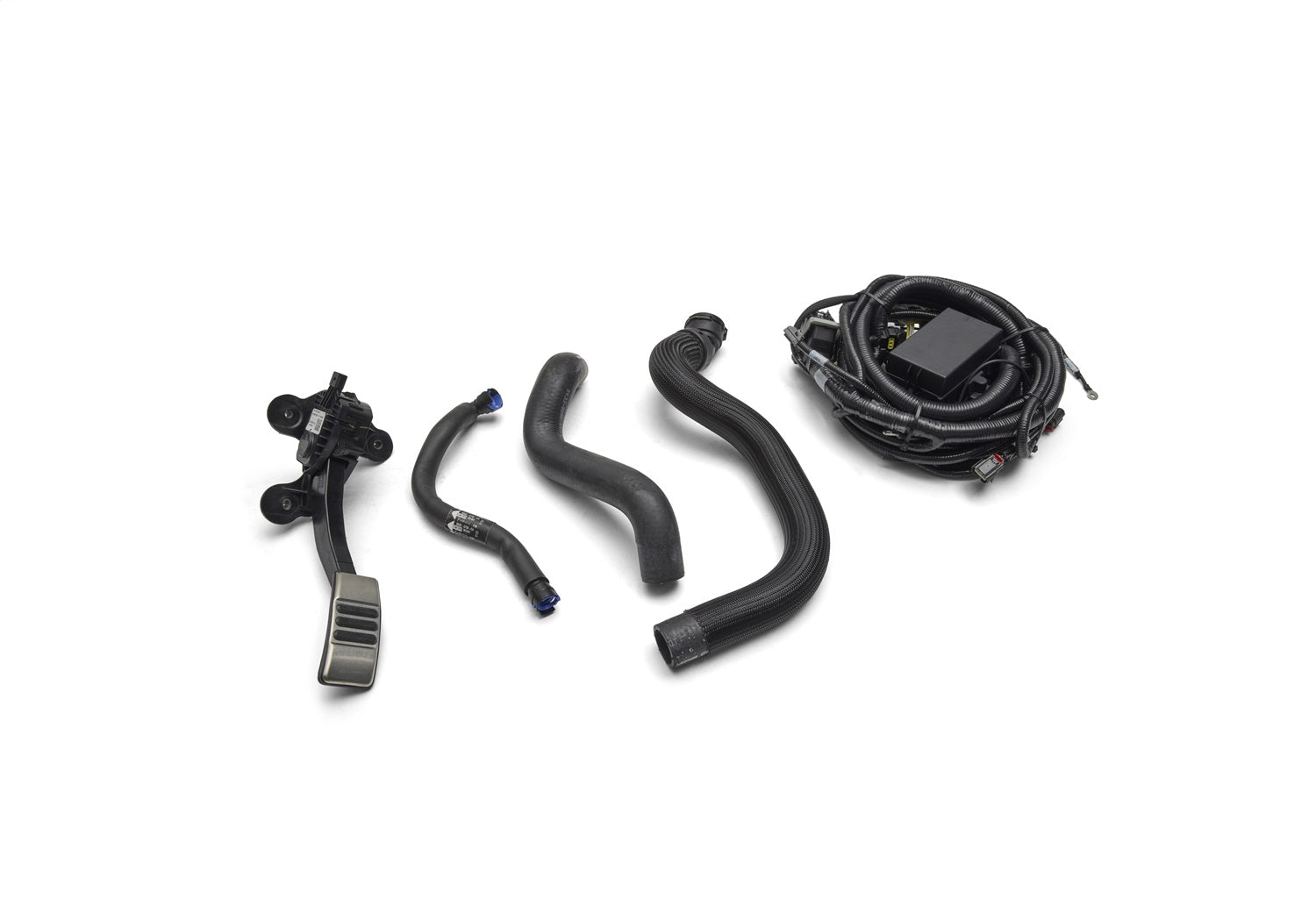

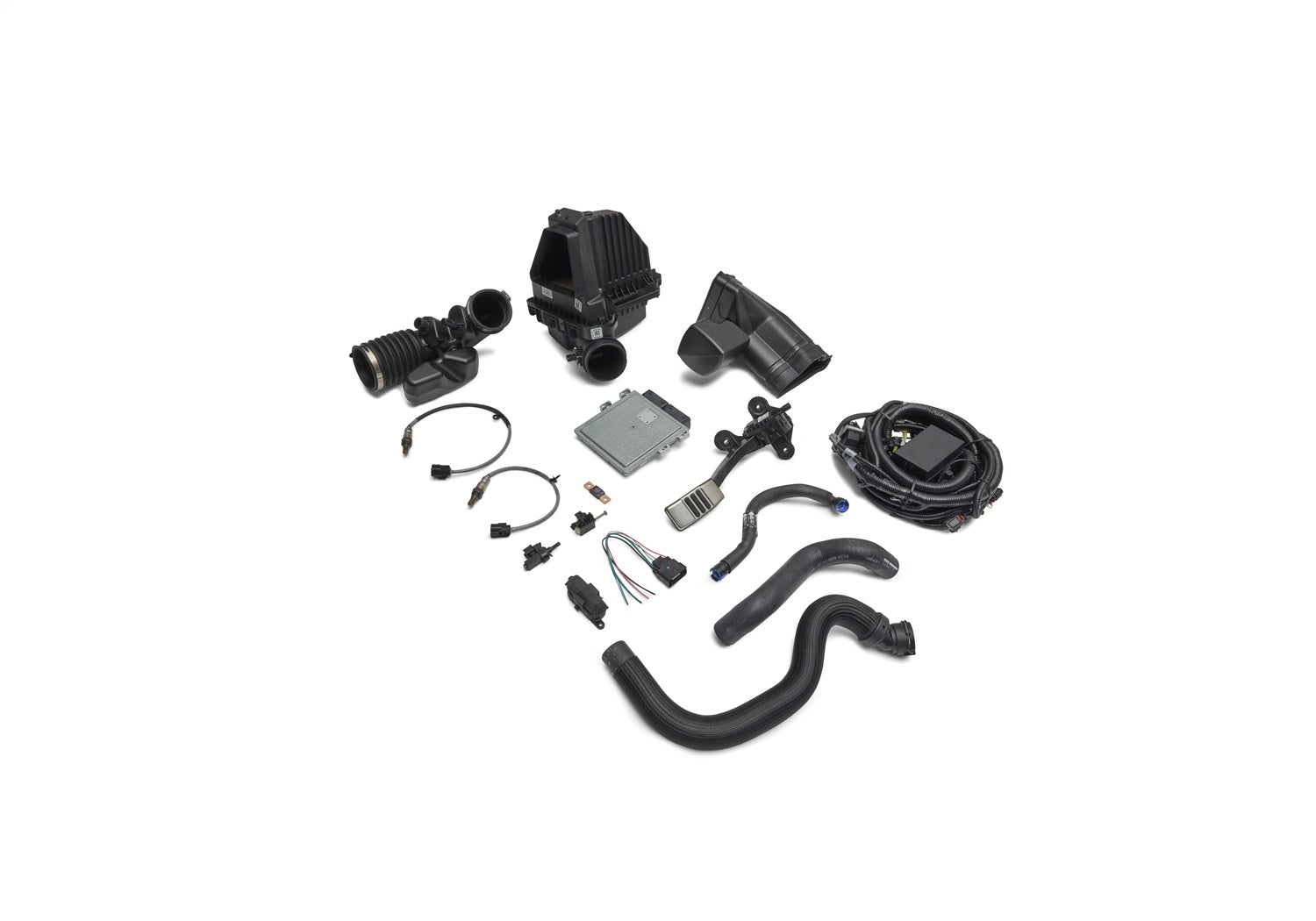

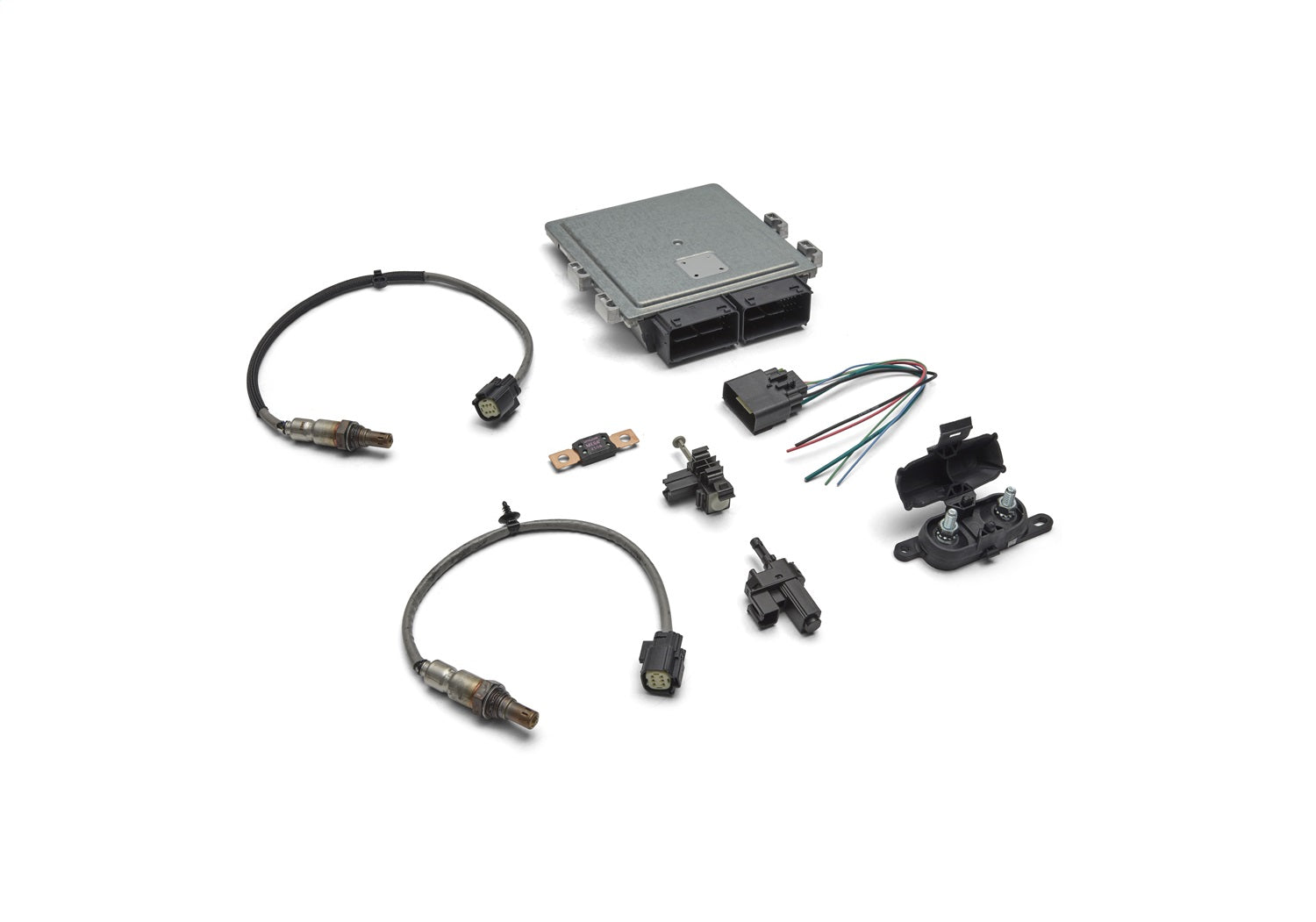

Ford Racing - Control Pack - 2015-17 Coyote 5.0l Manual Transmission - M-6017-504V

• Take the complexity and mystery out of wiring a late model 5.0L Coyote engine!
• Designed to run 2015-17 5.0L 4V Mustang Coyote engines, M-6007-M50A , and M-6007-A50NAA 5.0L 4V Ti-VCT crate engines with manual transmission
• NOTE: Not for use with 2015-2017 F-150 5.0L Coyote Engines
• Includes PCM with Ford Performance calibration
• Includes Electronic Throttle Control accelerator pedal which eliminates throttle cable routing problems
• Unique control pack harness replaces stock body harness and is designed for custom vehicle builds
• Features OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis
• Includes power distribution module, air box, air inlet tube, MAF sensor, upper and lower radiator hoses and HEGO sensors
• PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
• For 2011-2014 engines use controls pack M-6017-A504VA
• For 2015-2017 Automatic transmission version controls pack which works in conjunction with 6R80 transmission use M-6017-M50A
• NOTES: Supercharged versions and M-6007-A50SCA (lower compression ratio) require custom calibration
• Installation of this PCM in a 2015-17 Mustang GT will result in a no-start condition
• Remanufactured PCM

Installation Instructions:

• Installation Instructions (PDF)
