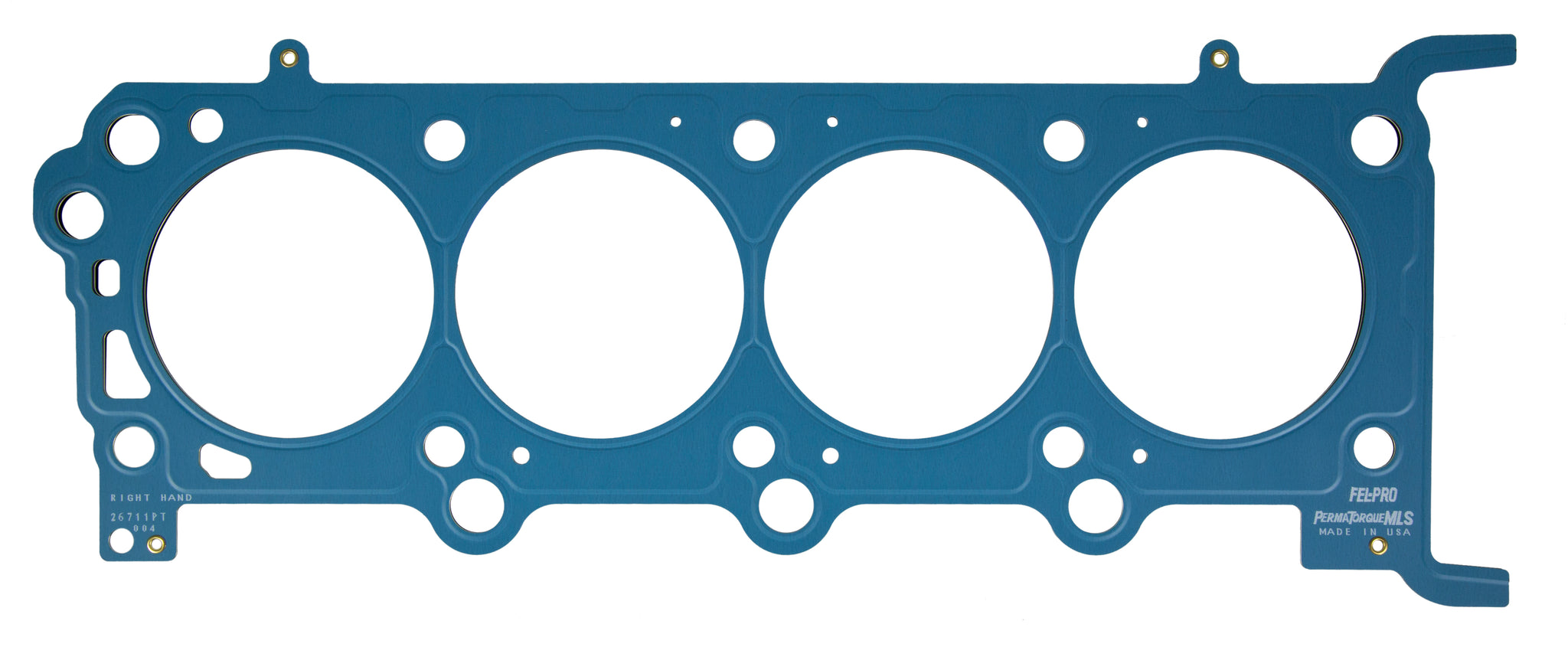

Fel-Pro Ford F-150 26711 PT PermaTorque Engine Cylinder Head Gasket - 26711PT

FEL-PRO 26711 PT PermaTorque Engine Cylinder Head Gasket for Ford F-150

Features

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra
• UNIQUE COMBUSTION SEAL -- Exclusive LaserWeld stopper layer technology reduces gasket damage from blow out and helps ensure a stronger combustion seal
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• HANDLES EXTREME ENGINE CONDITIONS -- Engineered and manufactured to inhibit over-compression of embossments to maintain a superior seal under peak combustion pressures and temperatures
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: steel
• Grade Type: Premium
• Cylinder Bore Diameter: 3.67 IN, 3.670 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.670 IN

Application

• 2007-2010 Ford Explorer Sport Trac (Right) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0); 2005-2014 Ford Expedition (Right) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2006-2010 Ford Explorer (Right) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0); 2004-2010 Ford F-150 (Right) (Liter: 5.4, 4.6 & Engine(ci): 330, 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17, 3.54 & Stroke(mm): 105.7, 90.0 & Engine VIN: 8 & Valves: 24); 2005-2010 Ford F-250 Super Duty (Right) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2005-2010 Ford F-350 Super Duty (Right) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2009-2010 Ford Lobo (Right) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0 & Valves: 24); 2006-2008 Lincoln Mark LT (Right) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2005-2014 Lincoln Navigator (Right) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2006-2010 Mercury Mountaineer (Right) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0)
