Fel-Pro Ford F-150 26306 PT PermaTorque Engine Cylinder Head Gasket - 26306PT

FEL-PRO 26306 PT PermaTorque Engine Cylinder Head Gasket for Ford F-150

Features

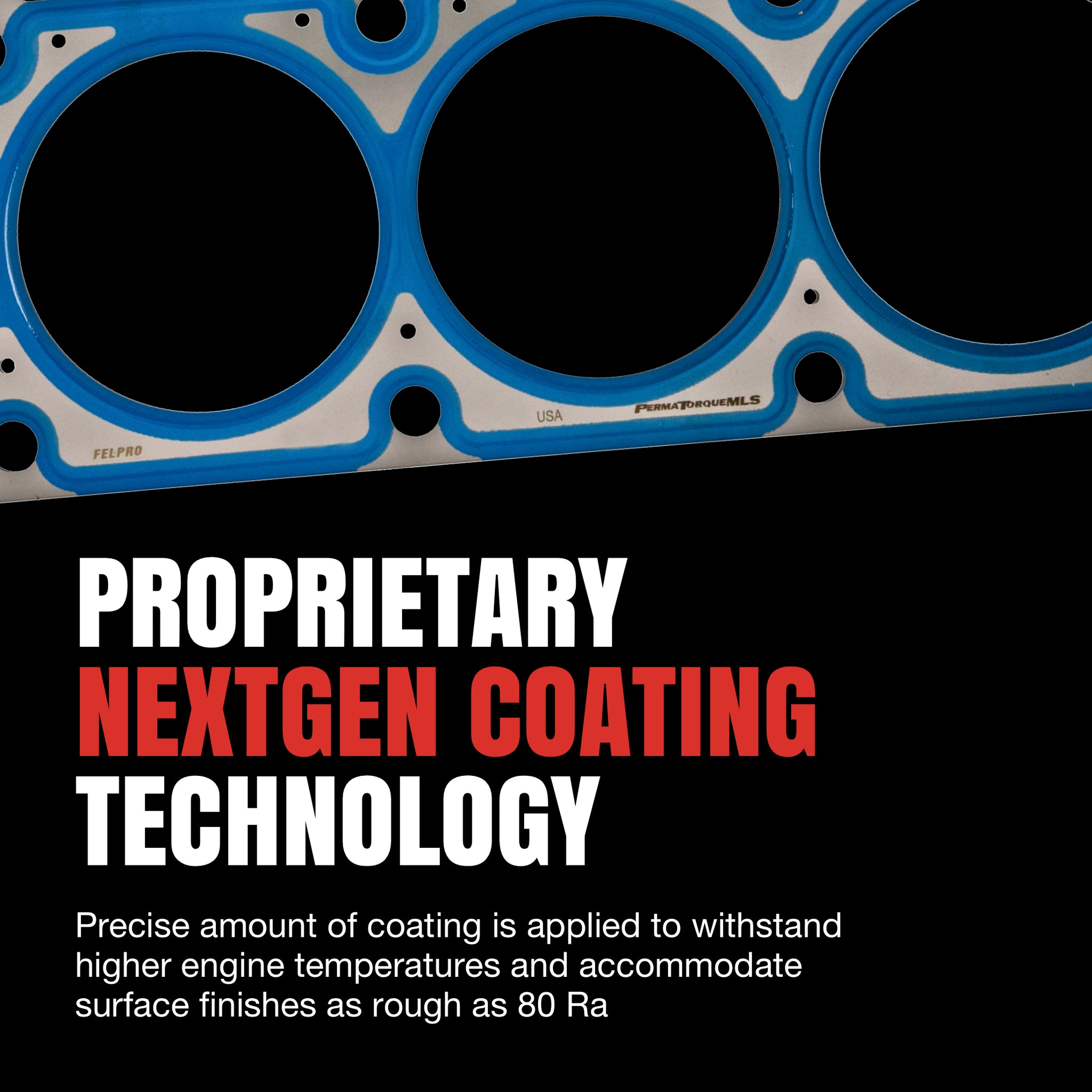

• PROPRIETARY NEXTGEN COATING TECHNOLOGY -- Precise amount of coating is applied to withstand higher engine temperatures and accommodate surface finishes as rough as 80 Ra
• UNIQUE COMBUSTION SEAL -- Exclusive LaserWeld stopper layer technology reduces gasket damage from blow out and helps ensure a stronger combustion seal
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• SUPERIOR SEAL -- Precise embossed sealing beads at vital areas to eliminate leak paths
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.033 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.640 IN, 3.630 IN, 3.63 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.670 IN, 3.63 IN

Application

• 2007-2010 Ford Explorer Sport Trac (Left) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0); 2005-2014 Ford Expedition (Left) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2006-2010 Ford Explorer (Left) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0); 2004-2010 Ford F-150 (Left) (Liter: 5.4, 4.6 & Engine(ci): 330, 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17, 3.54 & Stroke(mm): 105.7, 90.0 & Engine VIN: 8 & Valves: 24); 2005-2010 Ford F-250 Super Duty (Left) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2005-2010 Ford F-350 Super Duty (Left) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2009-2010 Ford Lobo (Left) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0 & Valves: 24); 2006-2008 Lincoln Mark LT (Left) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2005-2014 Lincoln Navigator (Left) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7); 2006-2010 Mercury Mountaineer (Left) (Liter: 4.6 & Engine(ci): 281 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54 & Stroke(mm): 90.0)
