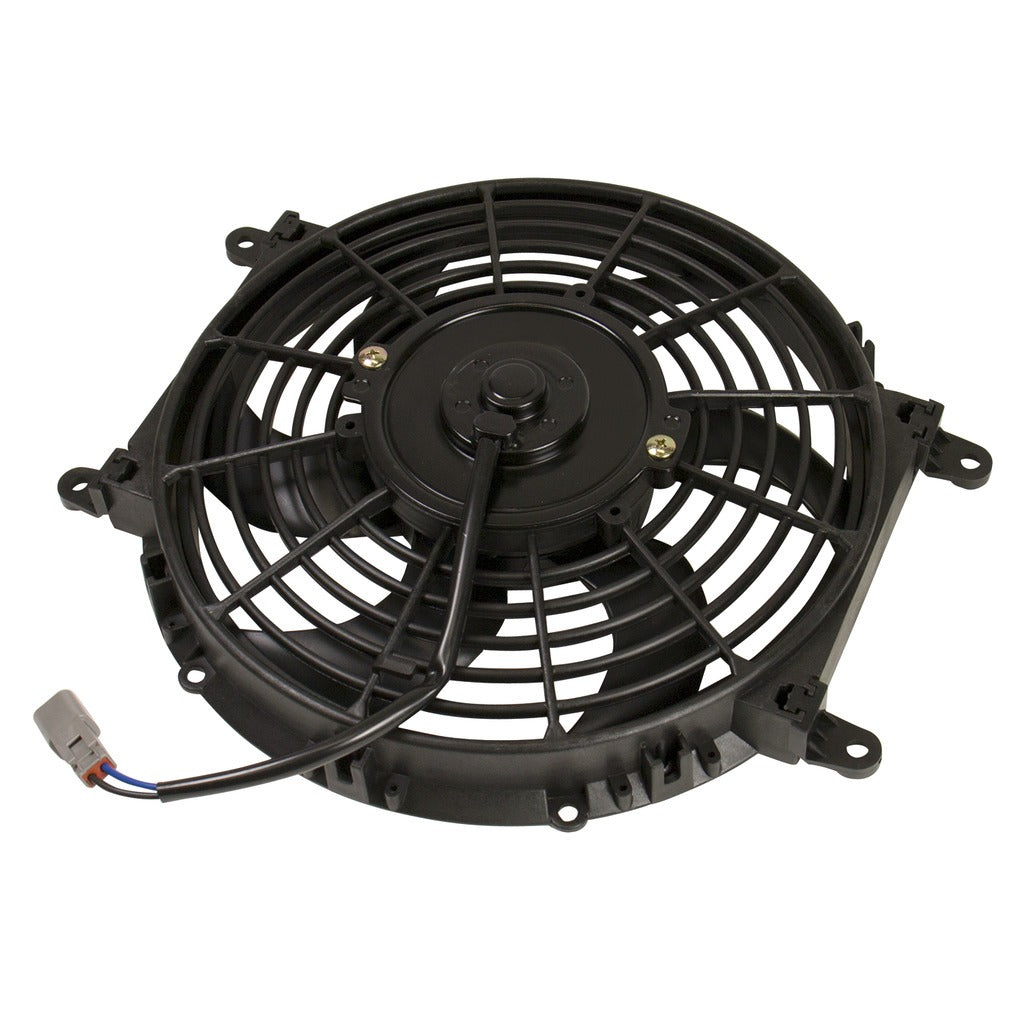

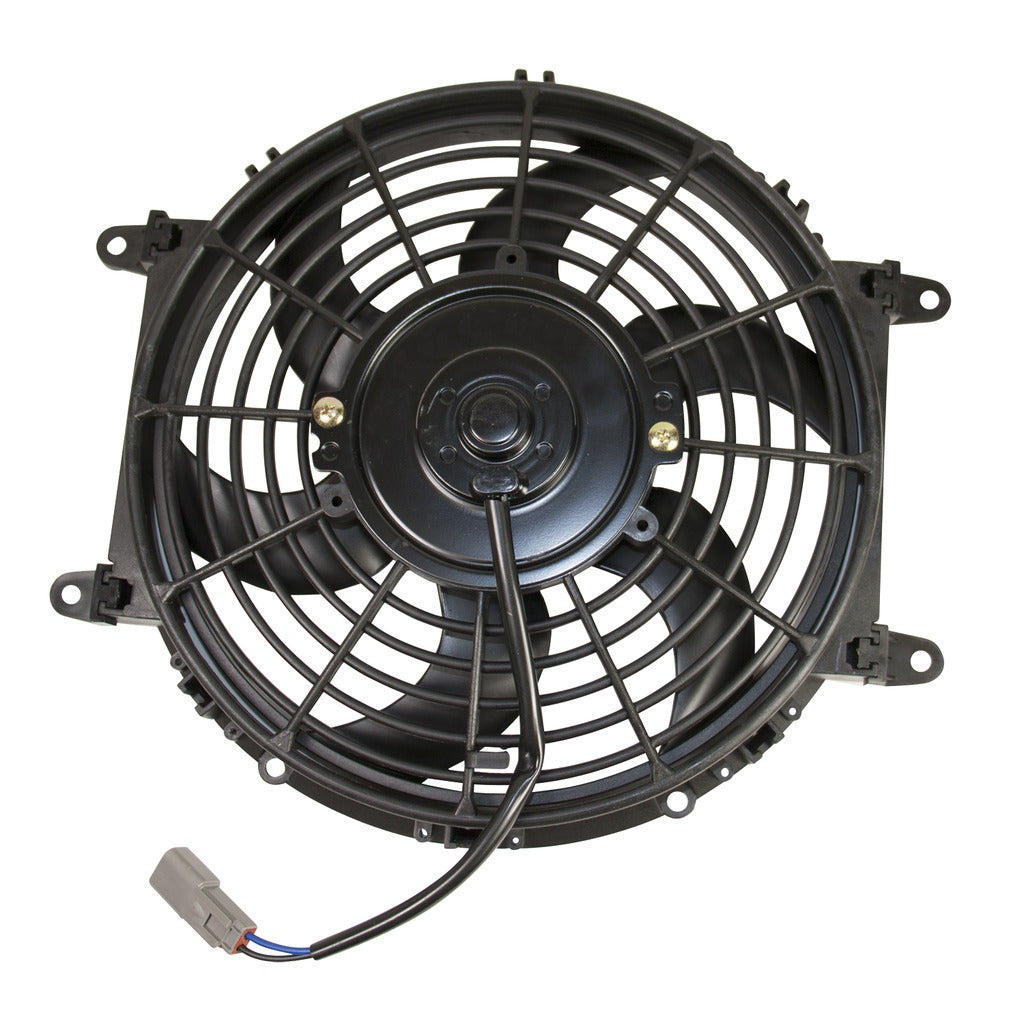

BD Diesel Universal Transmission Cooler Electric Fan Assembly - 10 inch 800 CFM - 1030607

80-watt, 10-inch, 800 CFM universal electric fan. The fan is supplied as a "pusher" fan from factory which will draw air in through the grille of the fan and push that air into the radiator. This is ideal for installation on the front side of the vehicles radiator. The fan may be converted to a "puller" fan so that it will draw air through the radiator fins, and then out through the fan grille. This is ideal for installation on the rear side of the vehicle radiator. Intended for installation on transmission oil coolers, engine oil coolers, engine radiators or other universal applications.

Features

• Use as pusher (default) or puller
• 10-inch diameter
• 800 CFM flow
• 80-watt electric motor

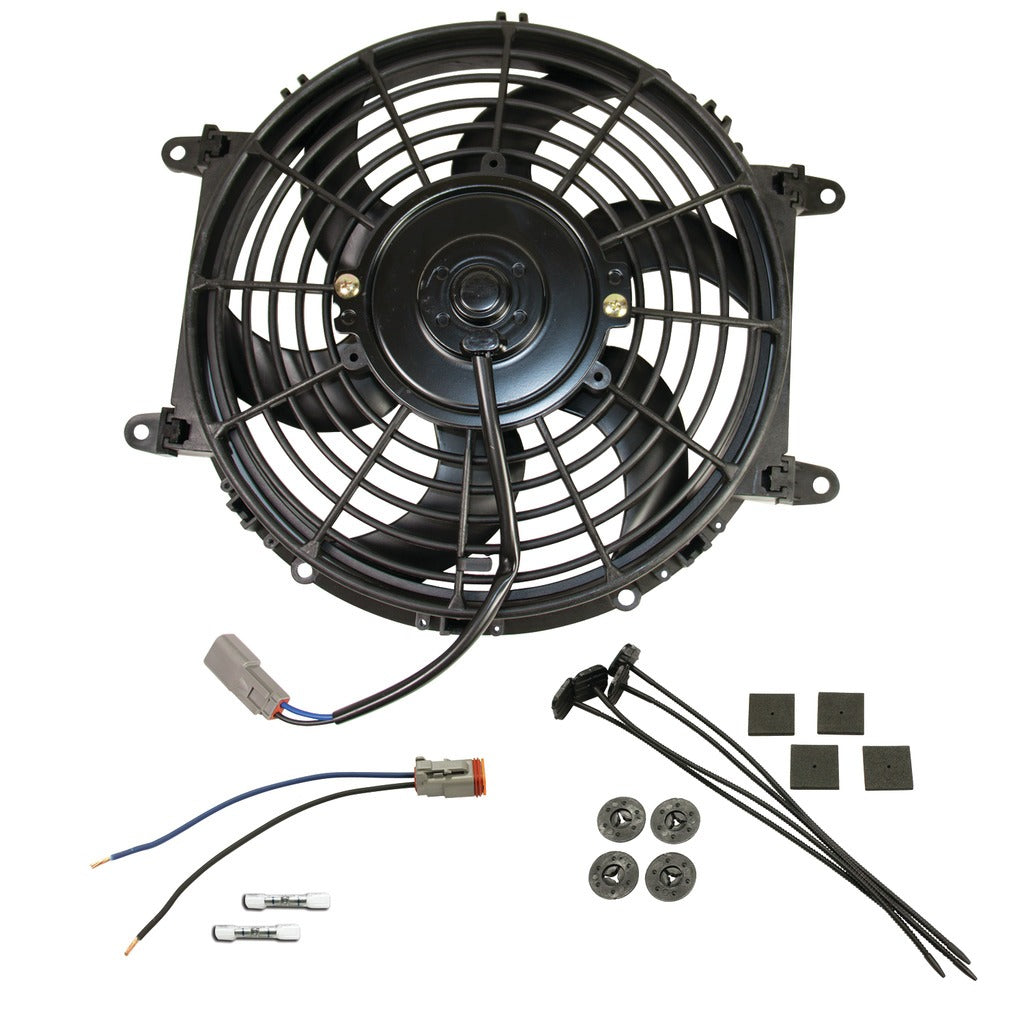

• Universal mounting kit
• Motor is IP54 with 65% duty cycle

Specifications

Warranty

12 months or 12000 miles, whichever comes first.

NOTE: Physical damage not eligible

Documentation

• 1030607 - Universal Radiator Fan (PDF)

Country of Origin: Canada
