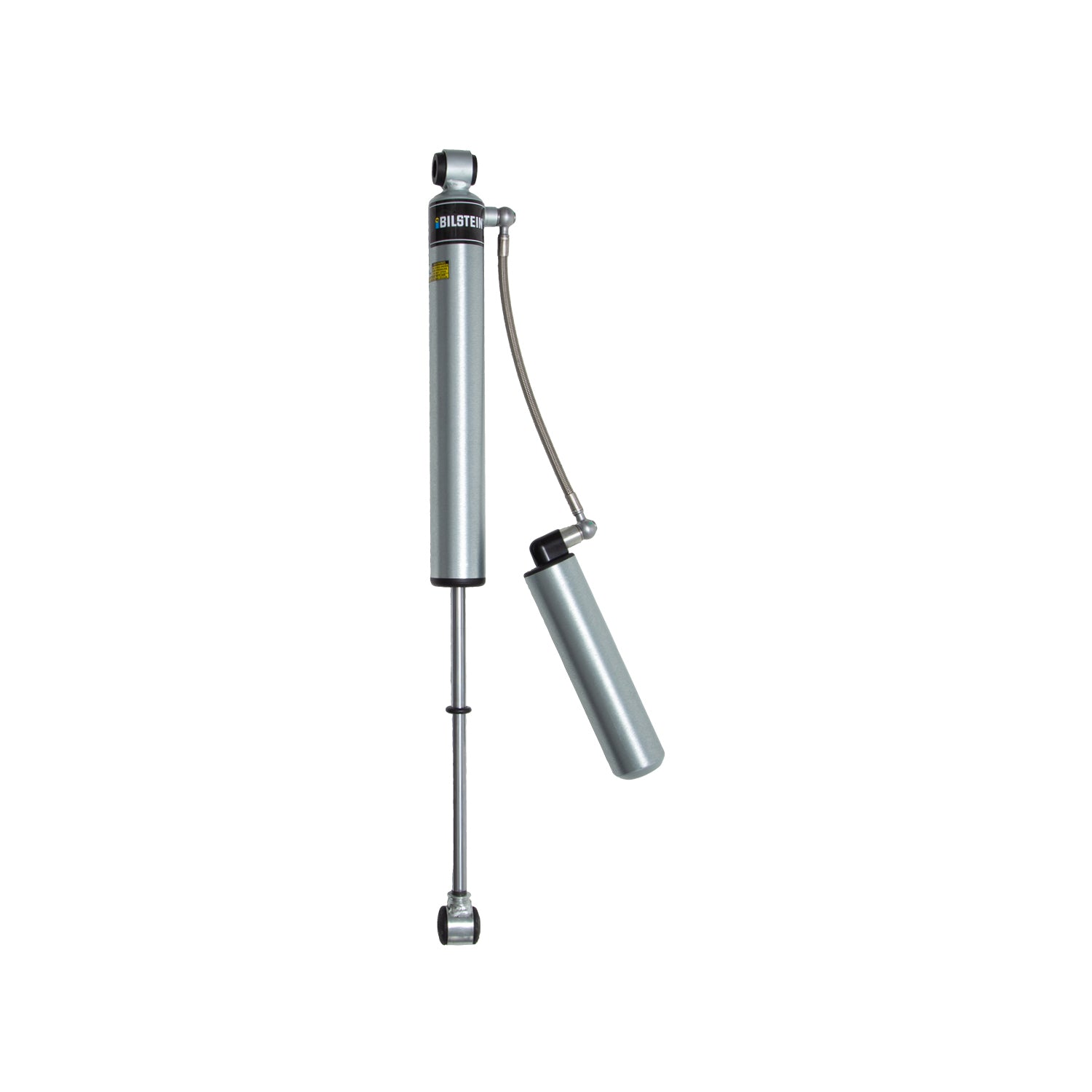

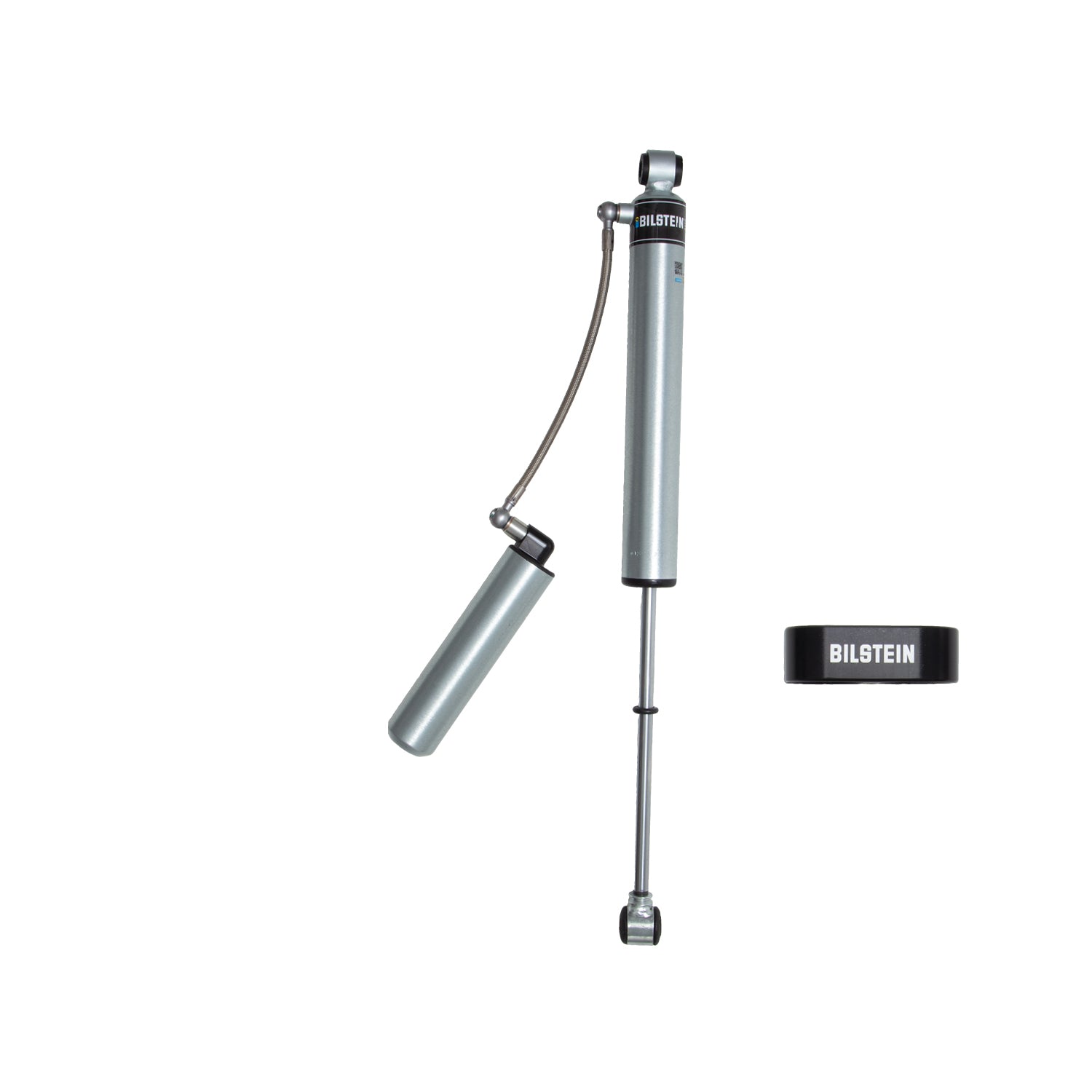

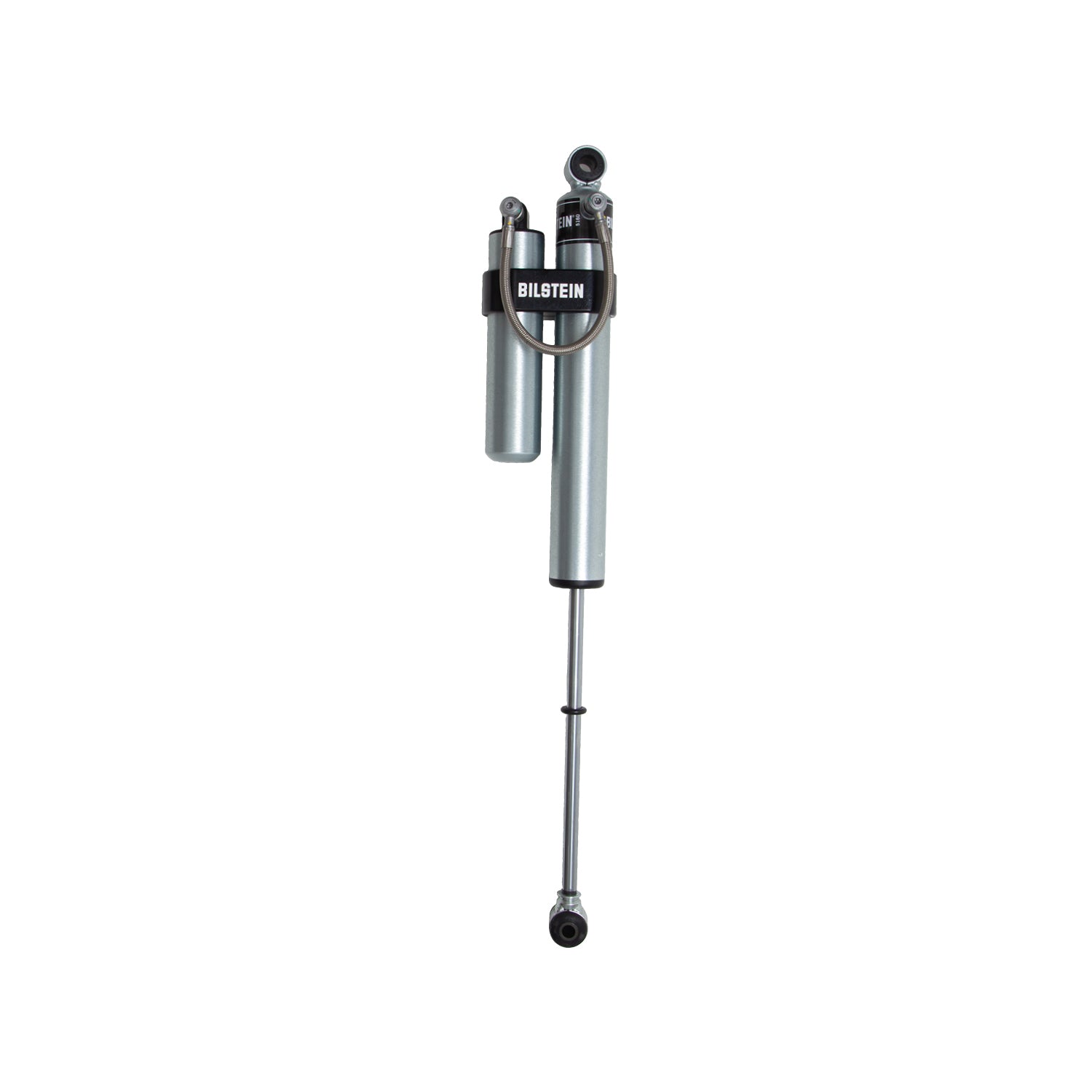

Bilstein 5160 Series 99-04 Ford F250/350 Super Duty Front Shock Absorbers for 4-6in Lift - 25-311877

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Specifications

• Internal Design: Monotube
• Adjustable Damping: Non-Adjustable
• Boot Included: No
• Body Design: Smooth Body (Non-Coilover)
• Finish: Zinc Plated
• Spring Seat Included: No
• Series: B8 5160
• Lower Mount Type: Eye 12mm
• Upper Mount Type: Eye 16mm
• Collapsed Length (in): 15.96
• Reservoir: Yes
• Billet Reservoir Clamp Included: Yes
• Collapsed Length (mm): 405.5
• Extended Length (in): 27.13
• Extended Length (mm): 689.2
• Piston Diameter: 46mm
• Stroke/Travel Length (in): 11.06
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 280.9

Application

• Ford F-250 Super Duty 1999-2004, F-350 Super Duty 1999-2004
