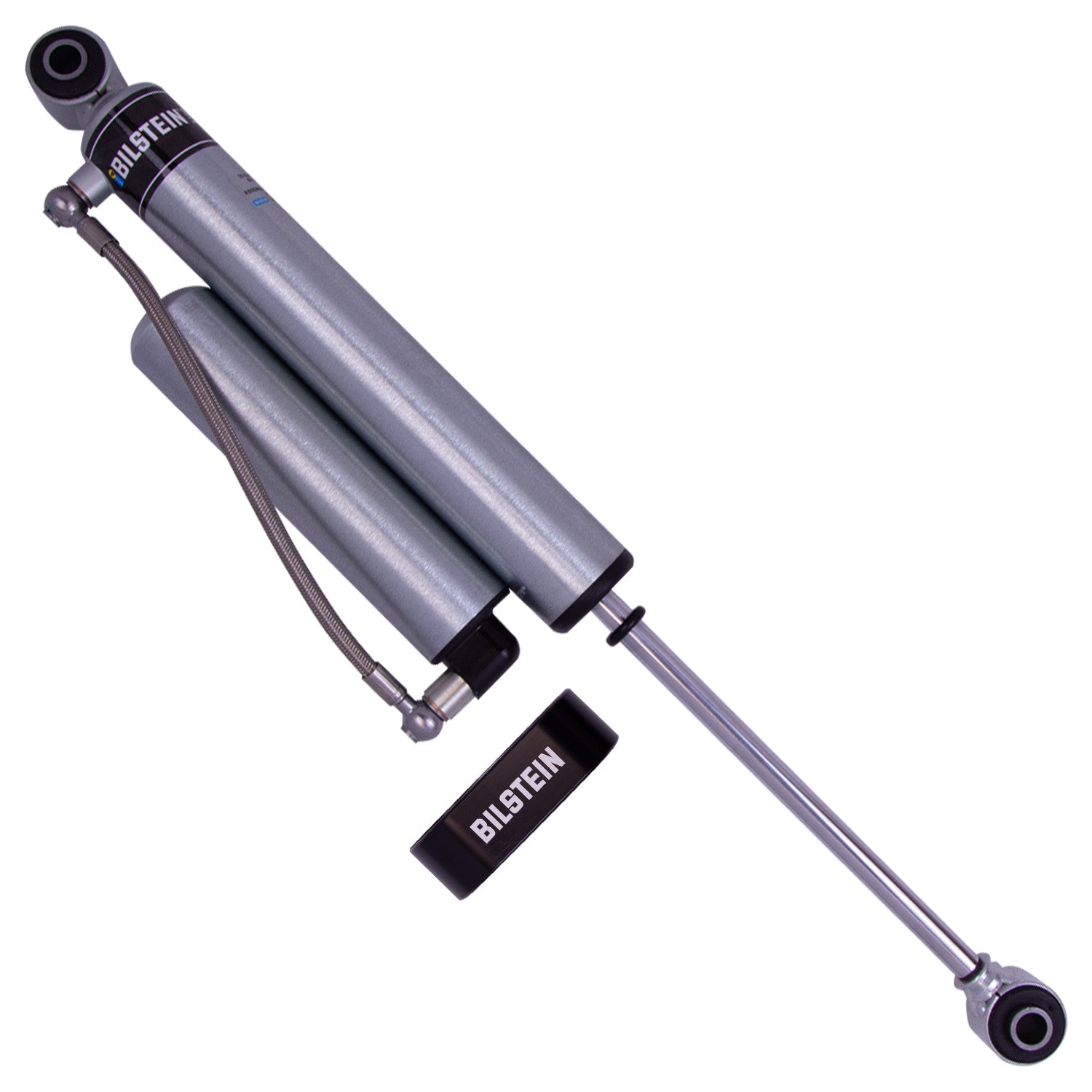

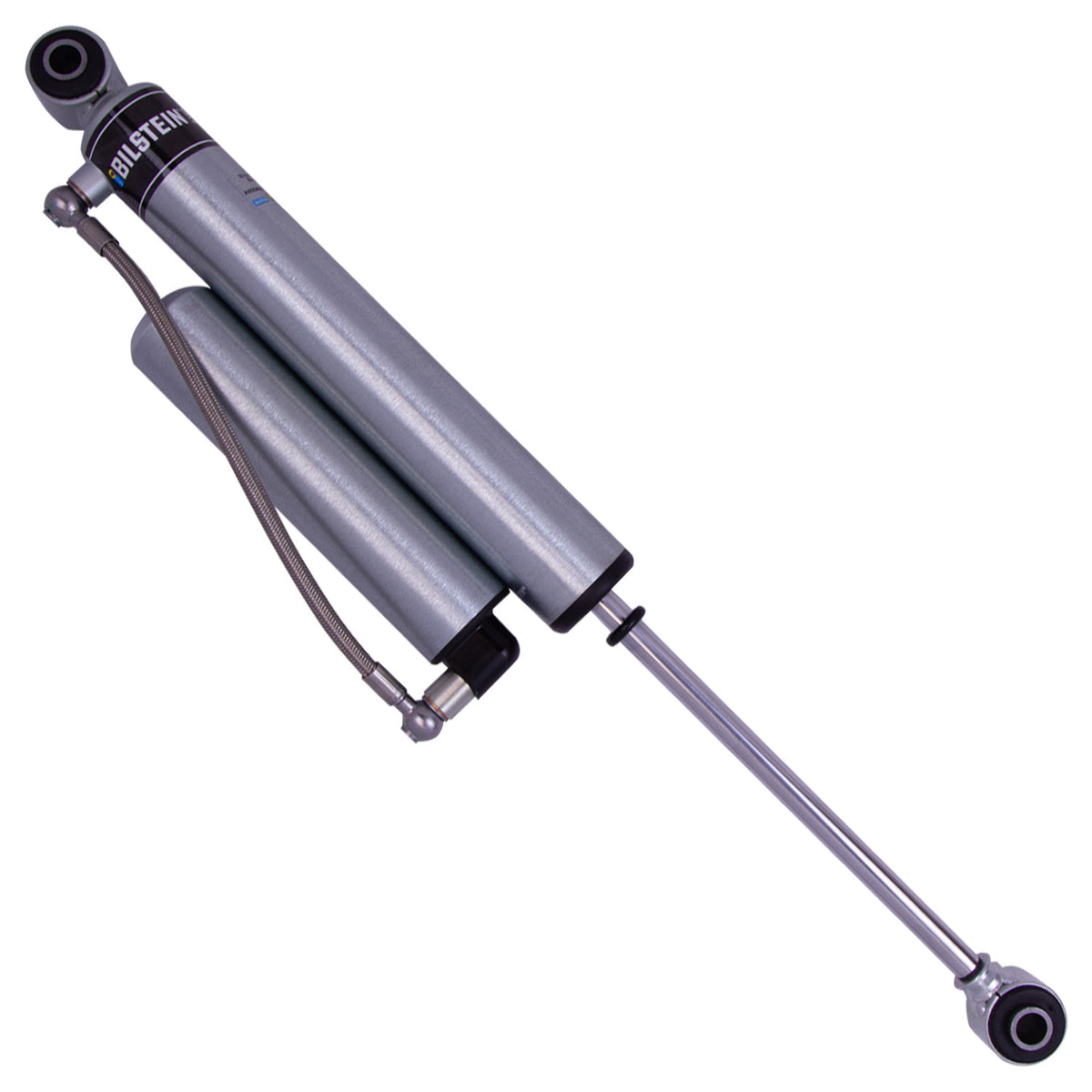

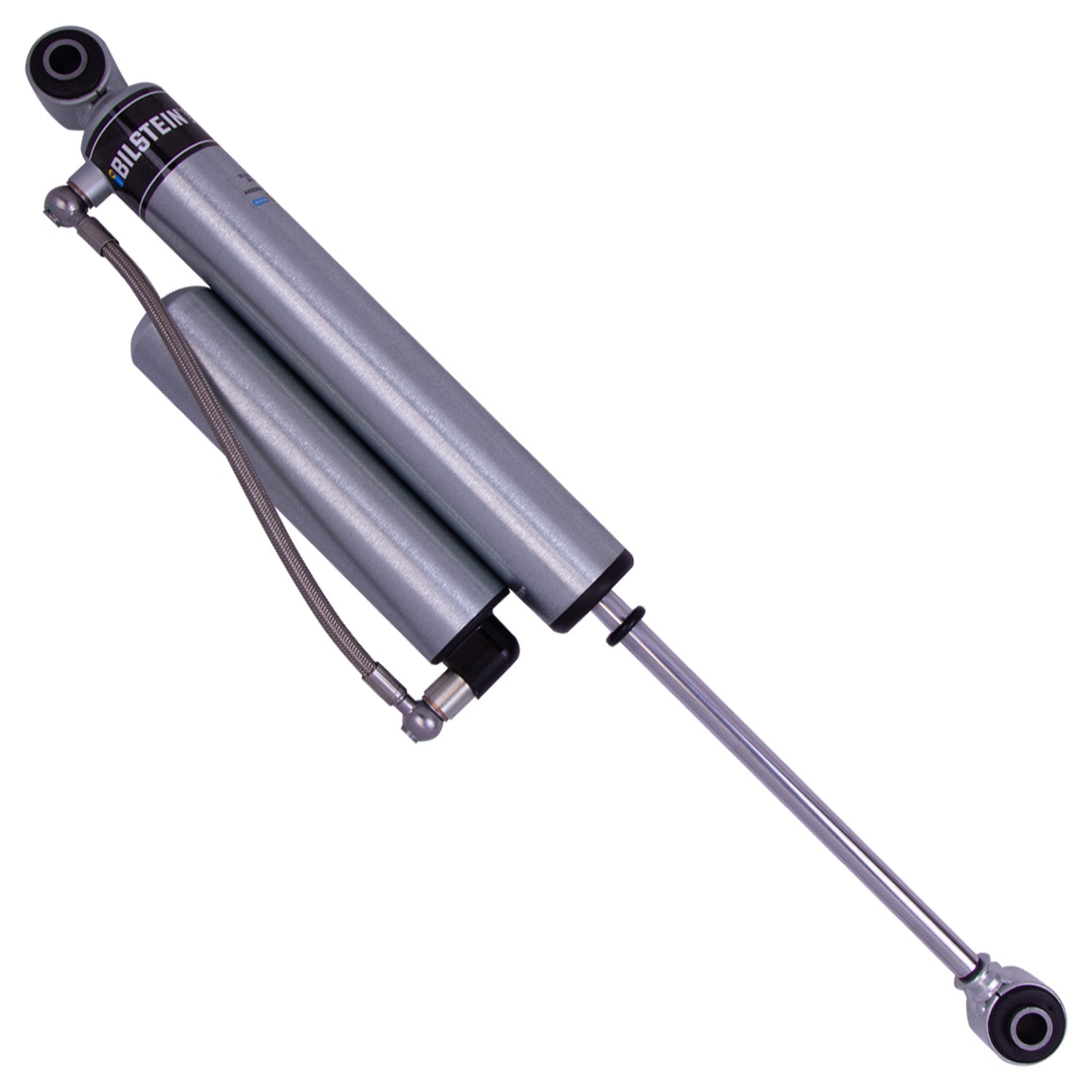

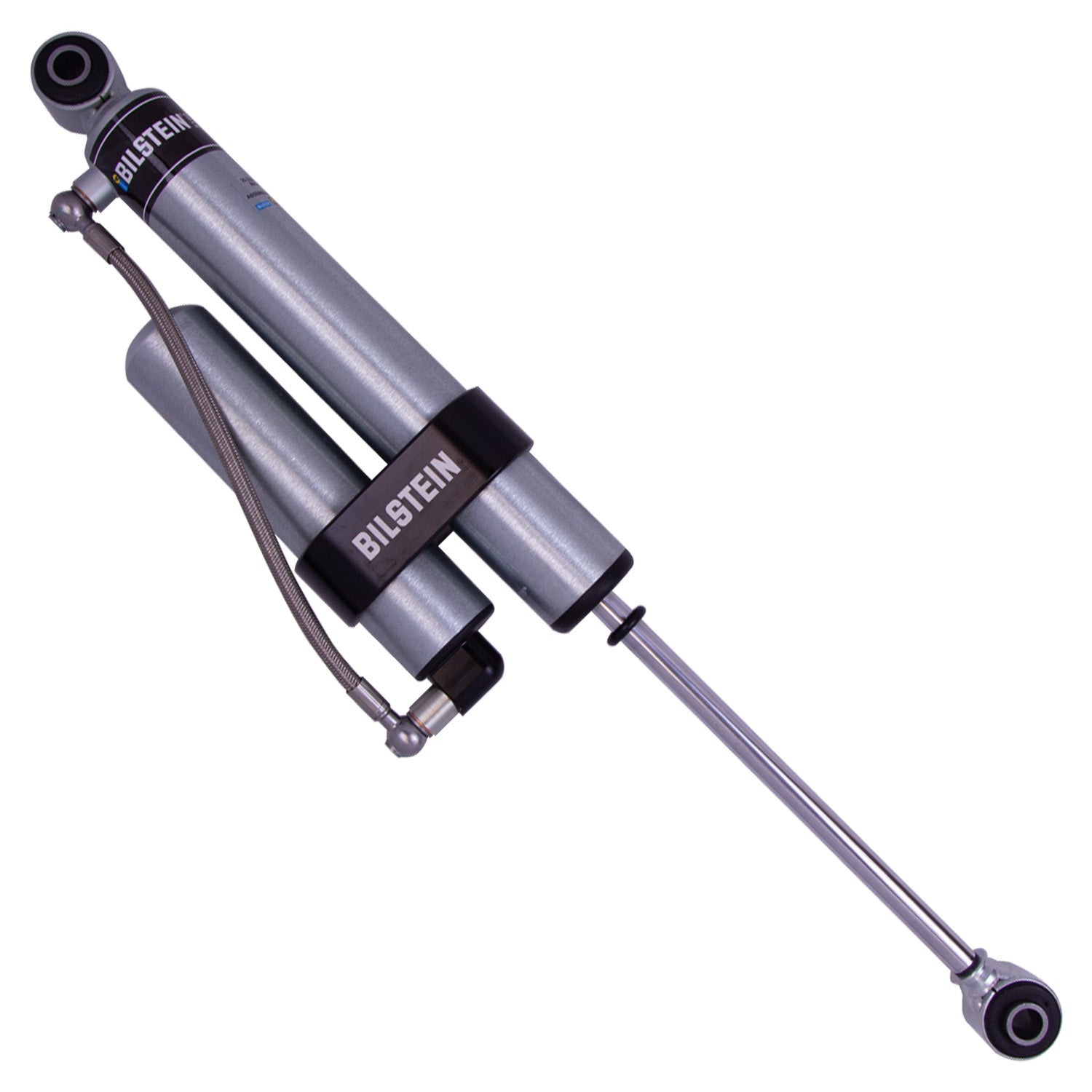

Bilstein 5160 Series 00-14 Chevrolet Tahoe / 07-13 Chevy Avalanche Rear 46mm Monotube Shock Absorber - 25-325072

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Specifications

• Series: B8 5160
• Upper Mount Type: Eye 14.4mm
• Adjustable Damping: Non-Adjustable

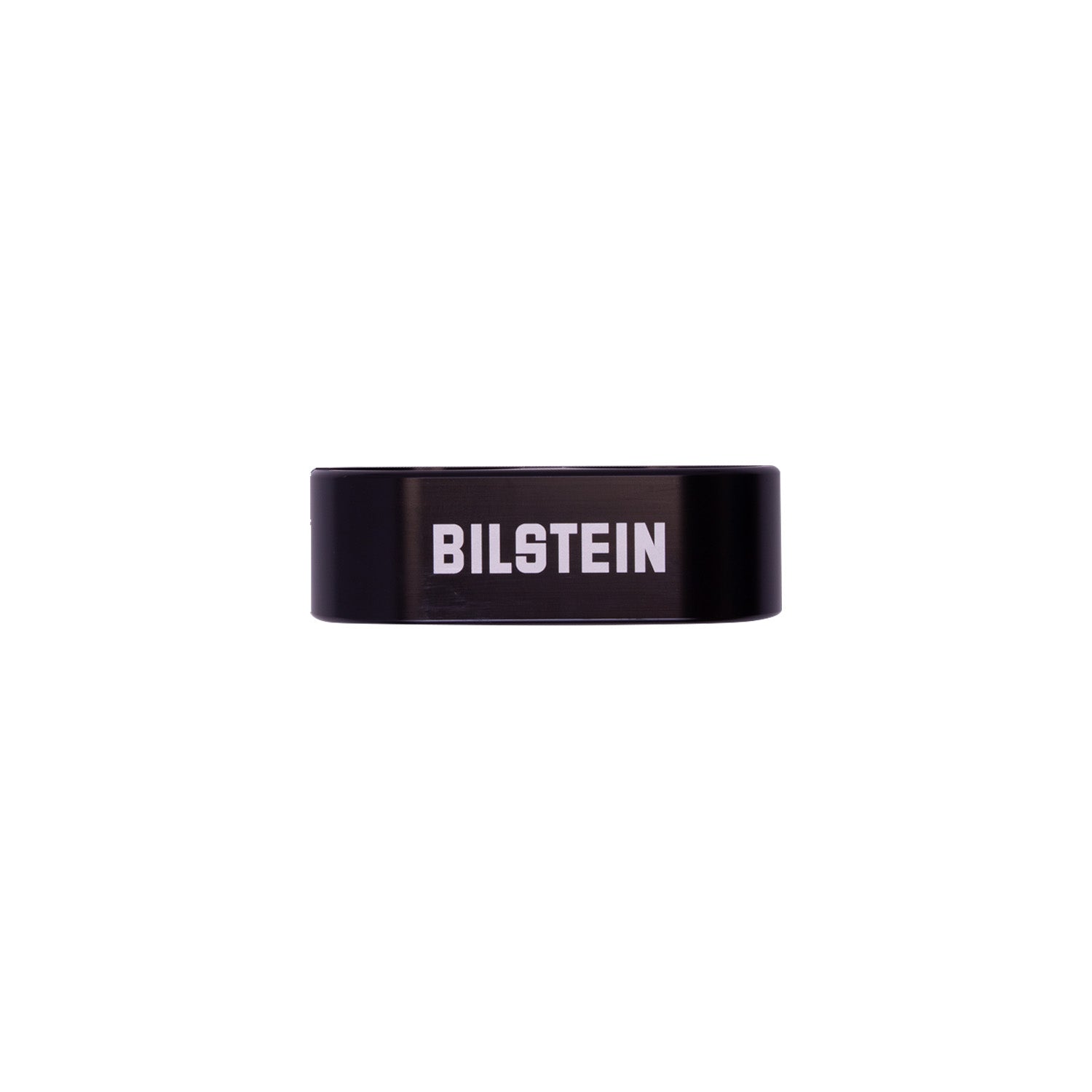

• Billet Reservoir Clamp Included: Yes
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (in): 14.82
• Spring Seat Included: No
• Extended Length (in): 24.47
• Extended Length (mm): 621.5
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 244.9
• Stroke/Travel Length (in): 9.64
• Reservoir: Yes
• Lower Mount Type: Eye 14.4mm
• Finish: Zinc Plated
• Collapsed Length (mm): 376.5
• Boot Included: No
• Internal Design: Monotube

Application

• Chevrolet Avalanche 2007-2013, Avalanche 1500 2002-2006, Suburban 1500 2000-2014, Tahoe 2000-2014, GMC Yukon 2000-2014, Yukon XL 1500 2000-2014
