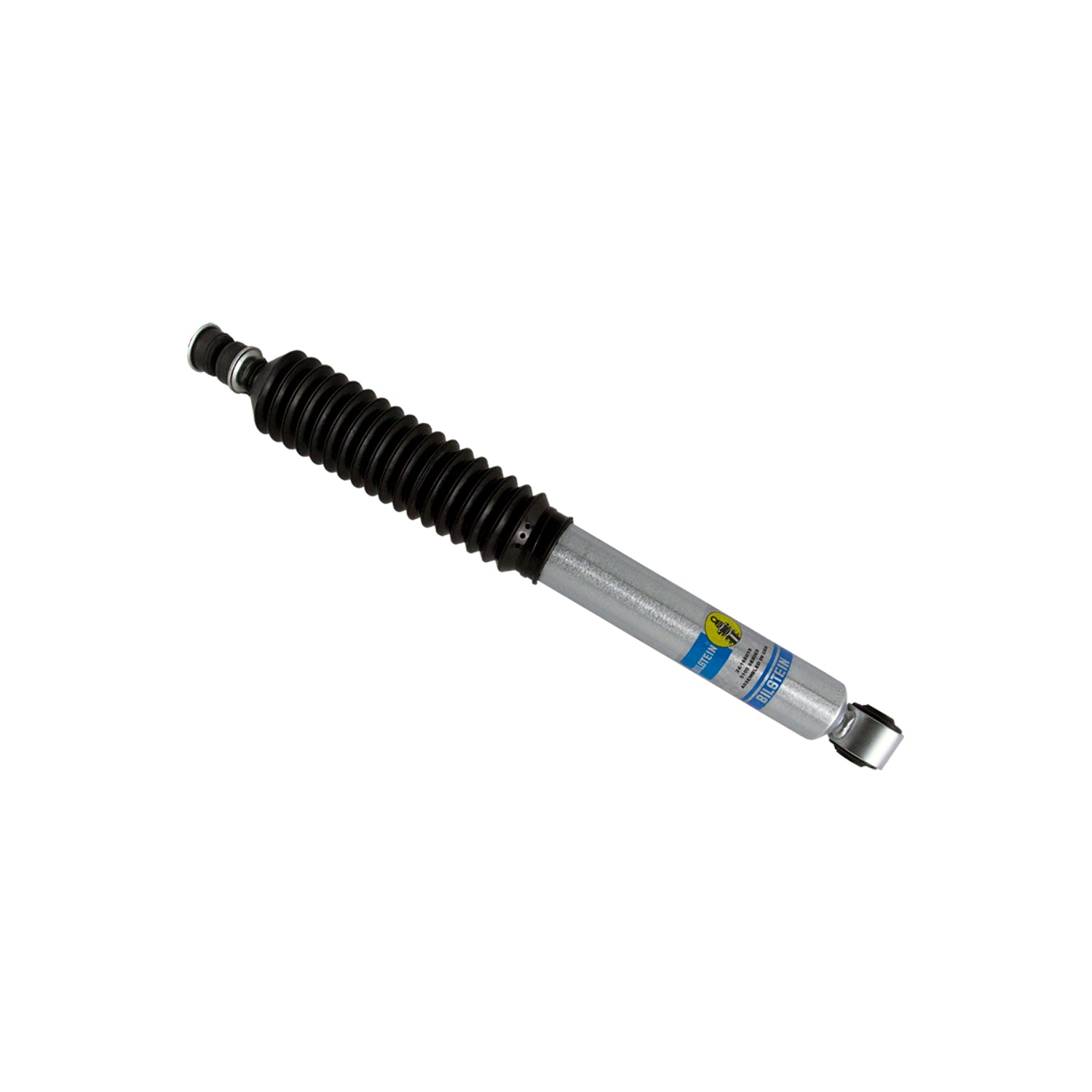

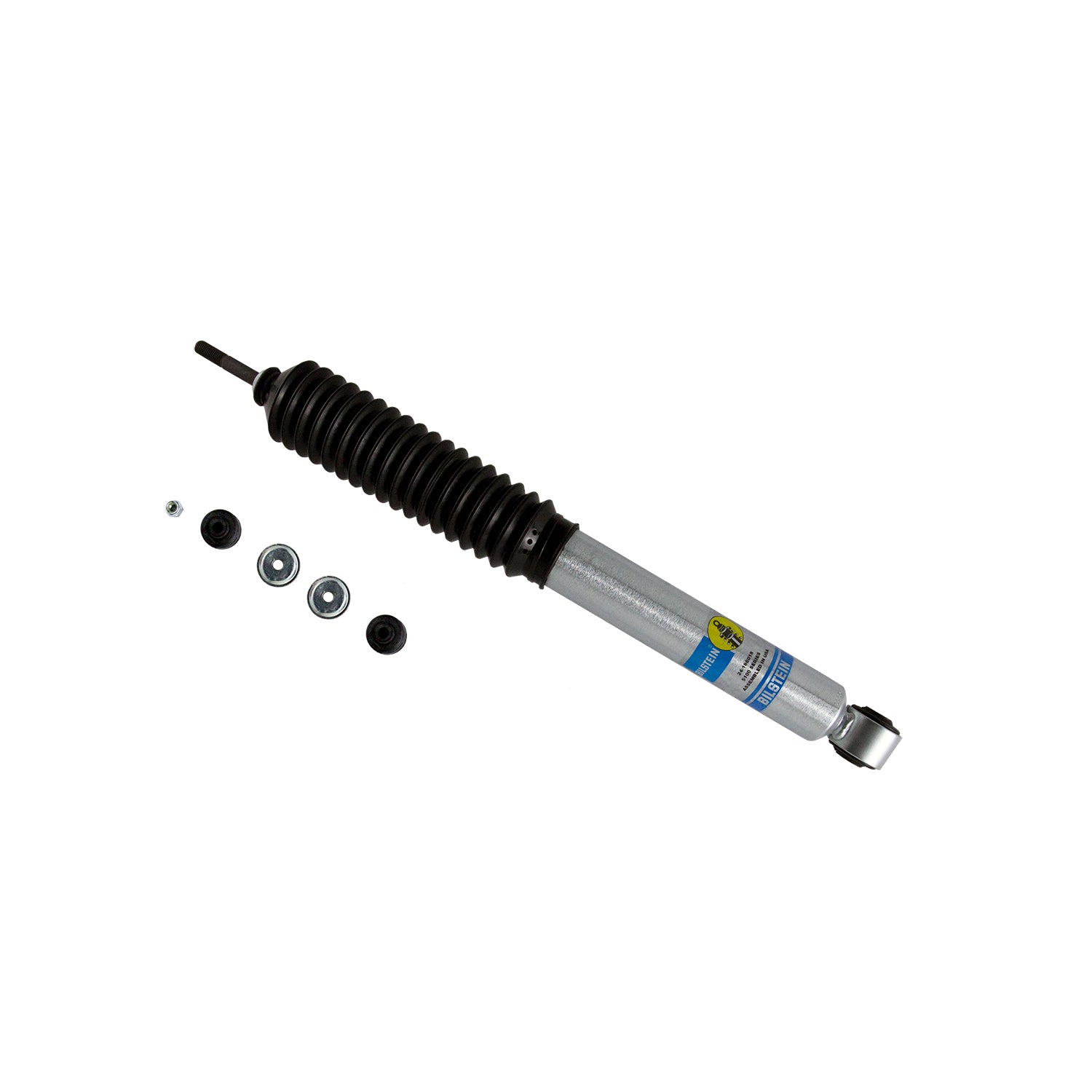

Bilstein 5100 Series Ford F-250/F-350 Super Duty 4WD Front 46mm Monotube Shock Absorber - 24-186018

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Reservoir: No
• Boot Included: Black Bellows
• Collapsed Length (in): 13.59
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-Coilover)
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 198.9
• Stroke/Travel Length (in): 7.83
• Extended Length (in): 21.42
• Extended Length (mm): 544.0
• Internal Design: Monotube
• Series: B8 5100
• Upper Mount Type: Stem
• Collapsed Length (mm): 345.3
• Lower Mount Type: Eye 14.4mm

Application

• Ford F-250 Super Duty 2005-2016, F-350 Super Duty 2005-2016
