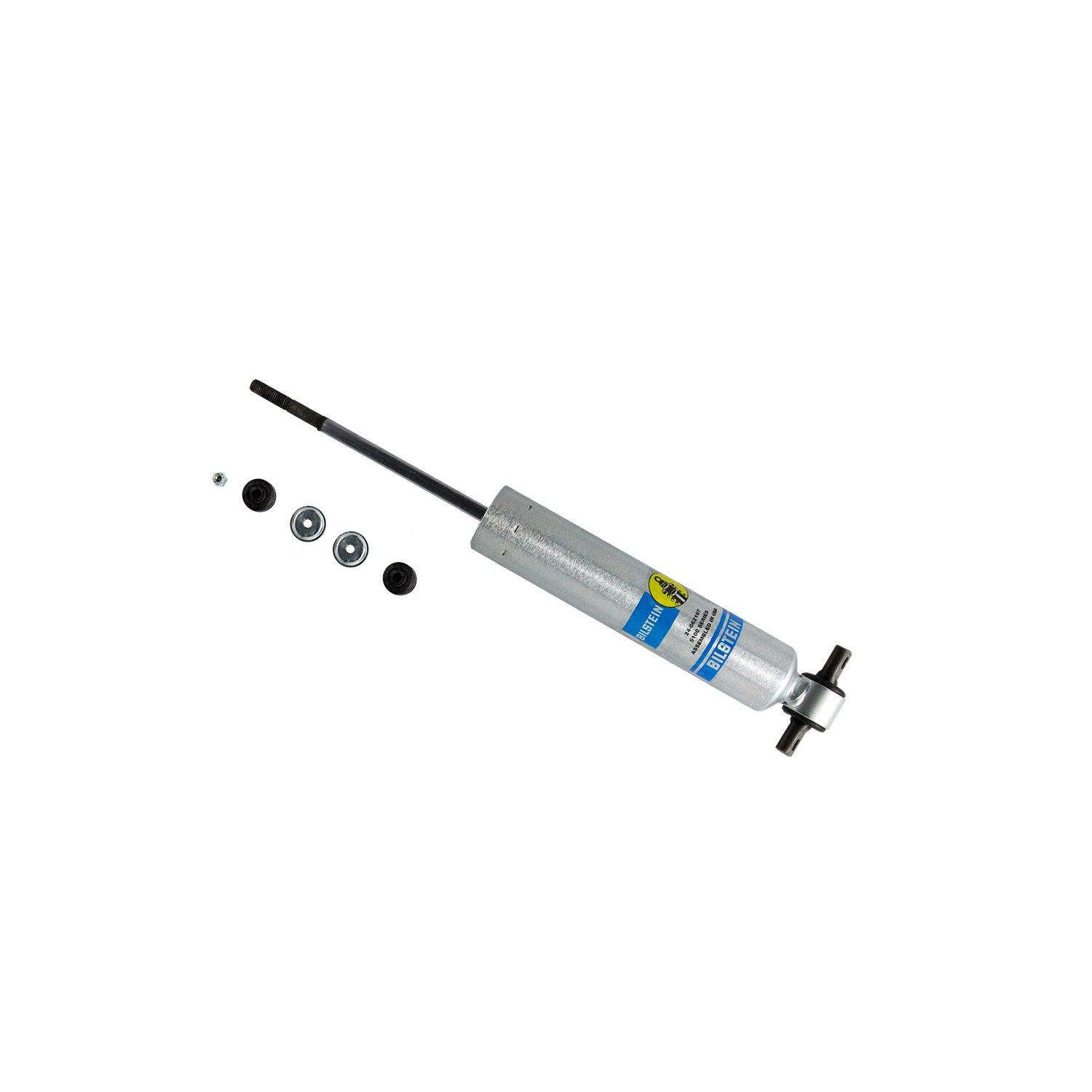

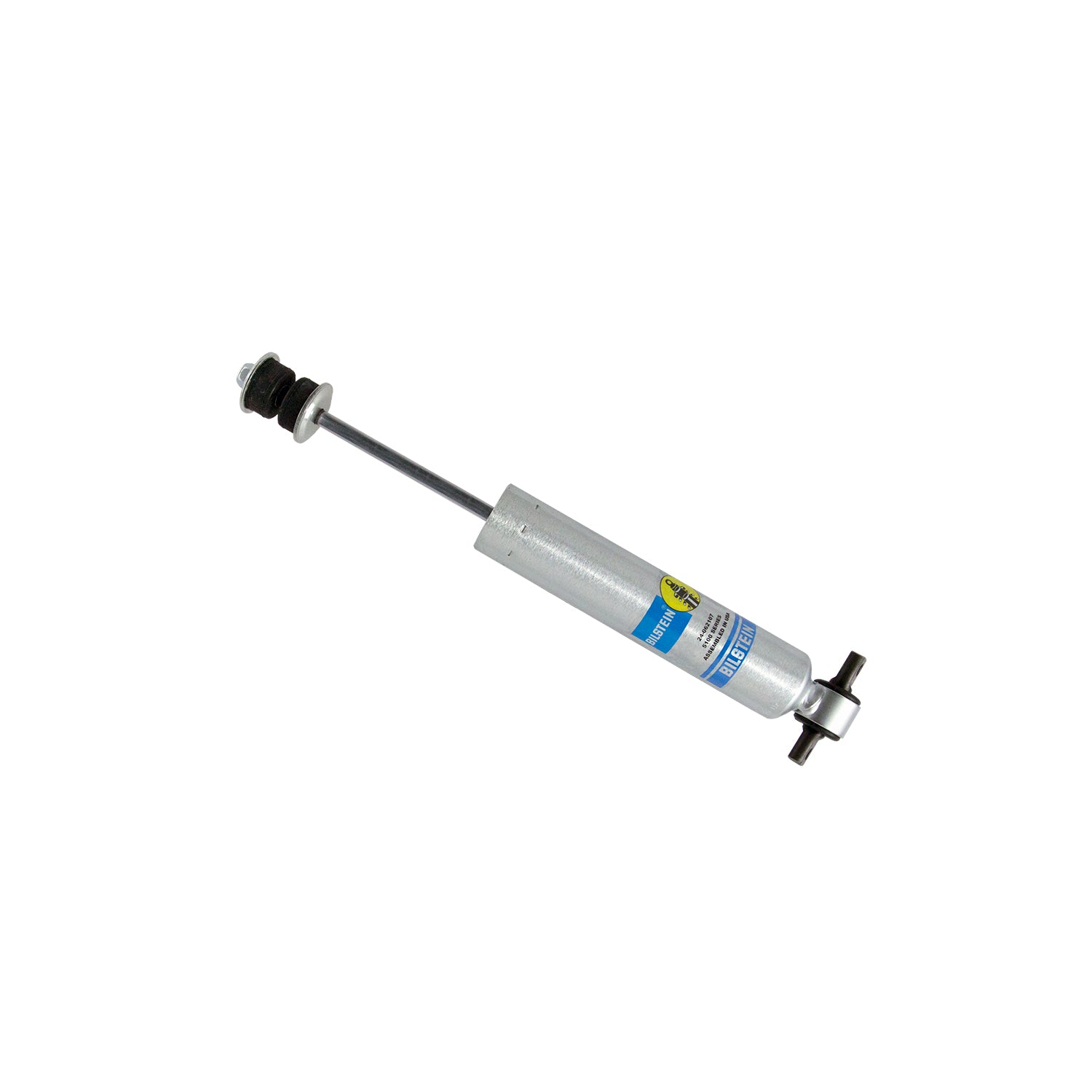

Bilstein 5100 Series 92-99 Suburban Base Front 46mm Monotube Shock Absorber - 24-062107

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Series: B8 5100
• Extended Length (mm): 392.0
• Internal Design: Monotube
• Upper Mount Type: Stem
• Body Design: Smooth Body (Non-Coilover)
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 255.0
• Shaft Diameter: 11mm
• Stroke/Travel Length (mm): 136.9
• Stroke/Travel Length (in): 5.39
• Collapsed Length (in): 10.04
• Finish: Zinc Plated
• Boot Included: No
• Extended Length (in): 15.43
• Lower Mount Type: Bar Pin
• Reservoir: No

Application

• Chevrolet C1500 1988-1999, C1500 Suburban 1992-1999, Tahoe 1995-1999, GMC C1500 1988-1999, C1500 Suburban 1992-1999, Yukon 1995-1999
