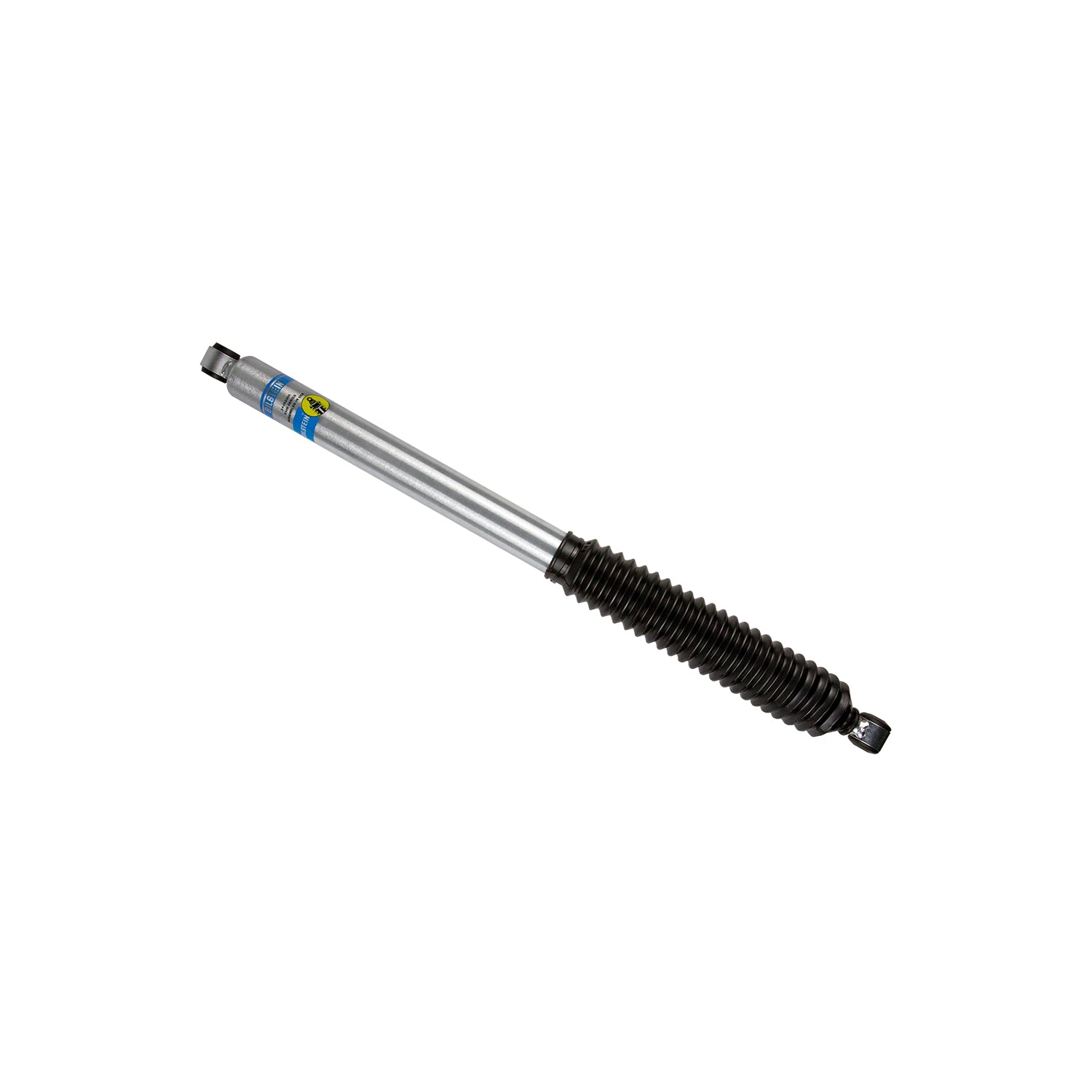

Bilstein 5100 Series 1999 Ford F-250 Super Duty Lariat Rear 46mm Monotube Shock Absorber - 24-062466

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Extended Length (mm): 813.0
• Extended Length (in): 32.01
• Upper Mount Type: Eye 16mm
• Internal Design: Monotube
• Lower Mount Type: Eye 12mm
• Series: B8 5100
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 515.0
• Stroke/Travel Length (in): 11.73
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 297.9
• Boot Included: Black Bellows
• Finish: Zinc Plated
• Collapsed Length (in): 20.28

Application

• Ford F-250 Super Duty 1999-2016, F-350 Super Duty 1999-2016
