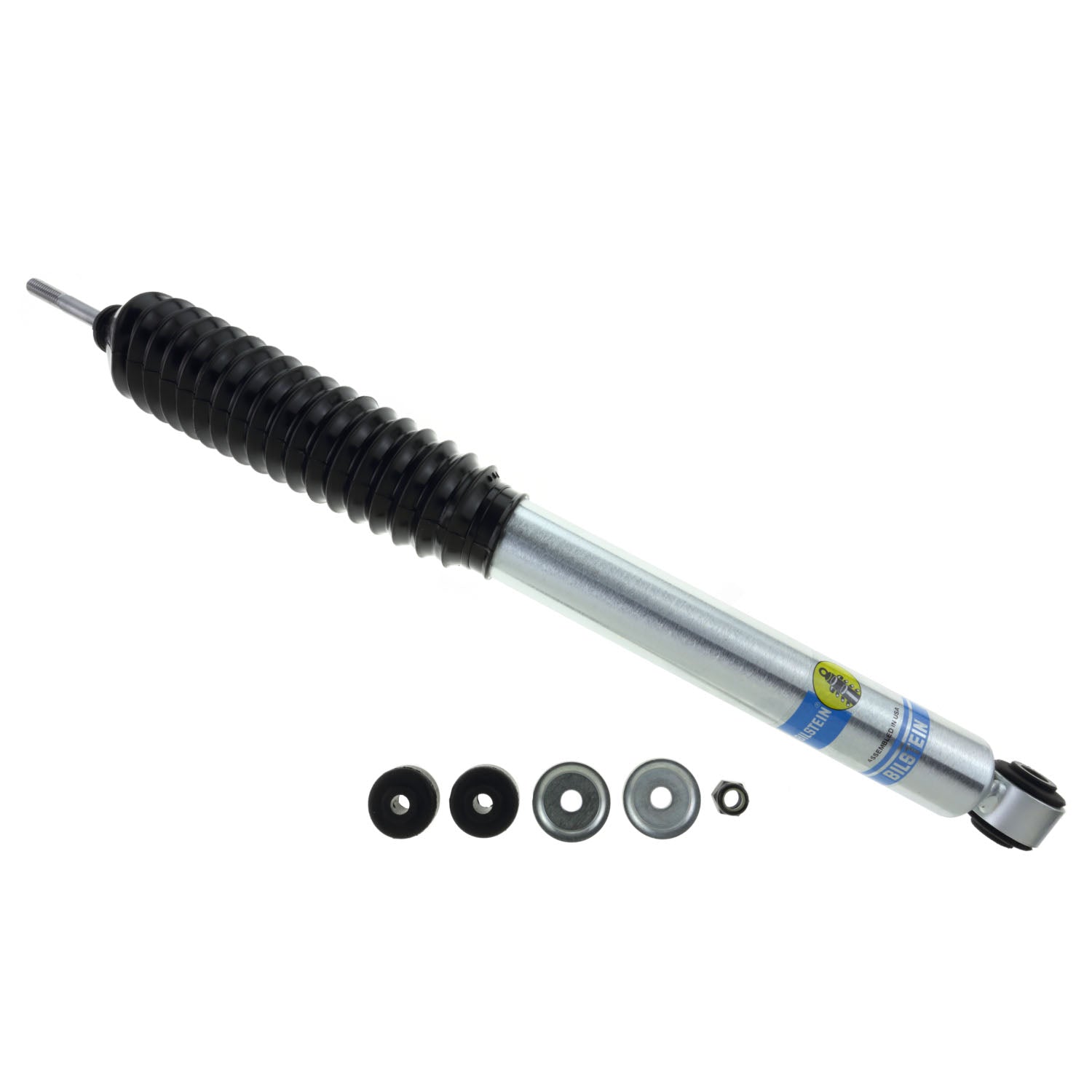

Bilstein 5100 Series 1997 Dodge Ram 1500 Laramie 4WD Front 46mm Monotube Shock Absorber - 24-185776

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Upper Mount Type: Stem
• Collapsed Length (in): 14.88
• Internal Design: Monotube
• Extended Length (in): 24.37
• Series: B8 5100
• Body Design: Smooth Body (Non-Coilover)
• Reservoir: No
• Boot Included: Black Bellows
• Extended Length (mm): 619.0
• Finish: Zinc Plated
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 378.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 241.1
• Stroke/Travel Length (in): 9.49
• Lower Mount Type: Eye 14.1mm

Application

• Dodge Ram 1500 1994-2001, Ram 1500 2006-2008, Ram 2500 1994-2010, Ram 3500 1994-2010, Ford F-250 Super Duty 2005-2016, F-350 Super Duty 2005-2016, Ram 2500 2011-2013, 3500 2011-2012
