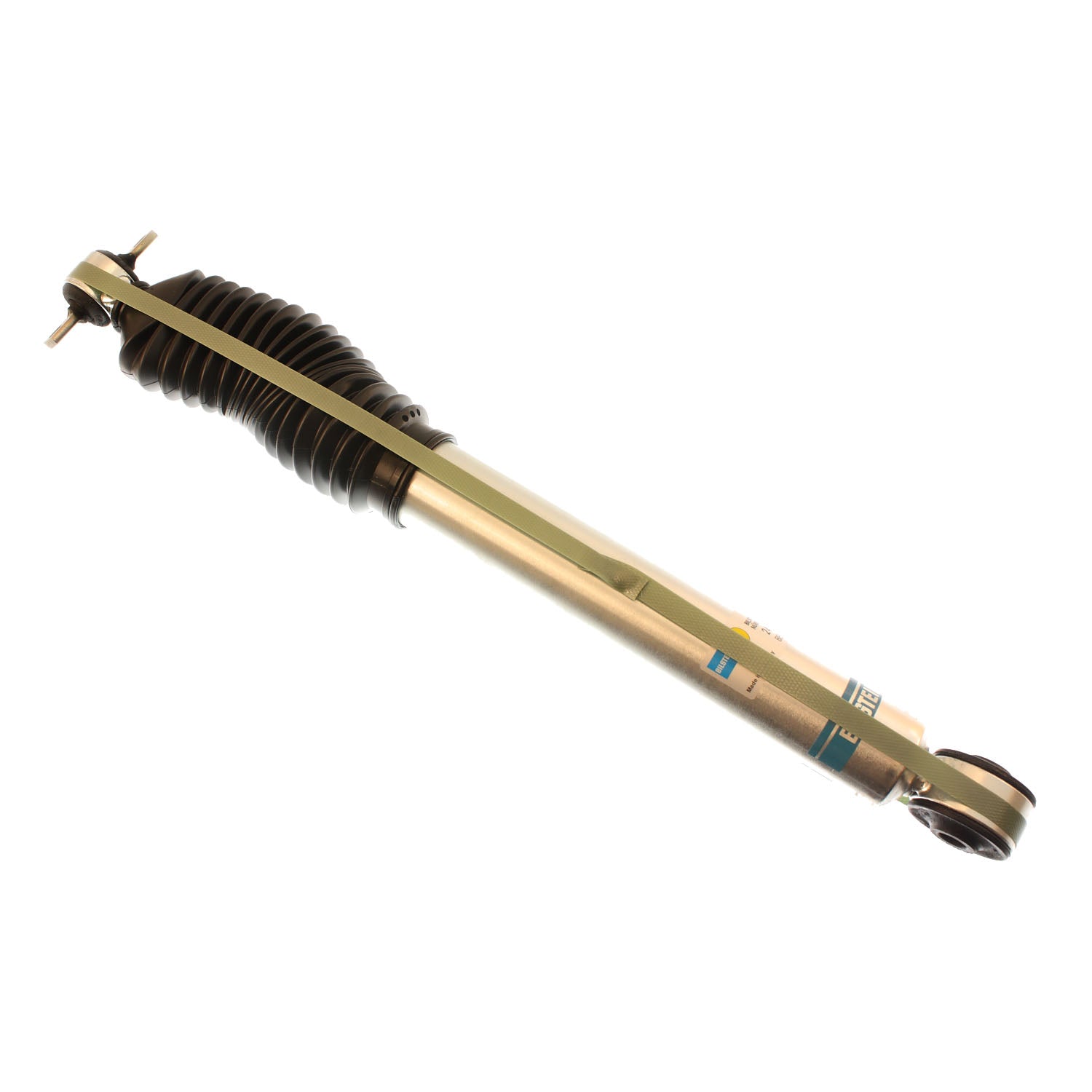

Bilstein 5100 Series 1995 Chevrolet Tahoe Base 4WD Sport Utility Rear 46mm Monotube Shock Absorber - 24-185615

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Collapsed Length (in): 16.18
• Lower Mount Type: Eye 14.1mm
• Body Design: Smooth Body (Non-Coilover)
• Series: B8 5100
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Extended Length (in): 26.20
• Piston Diameter: 46mm
• Collapsed Length (mm): 411.0
• Stroke/Travel Length (in): 10.02
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 254.5
• Boot Included: Black Bellows
• Reservoir: No
• Internal Design: Monotube
• Finish: Zinc Plated
• Upper Mount Type: Bar Pin
• Extended Length (mm): 665.5

Application

• Chevrolet Tahoe 1995-1999, GMC Yukon 1995-1999, Hummer H3 2006-2010, H3T 2009-2010
