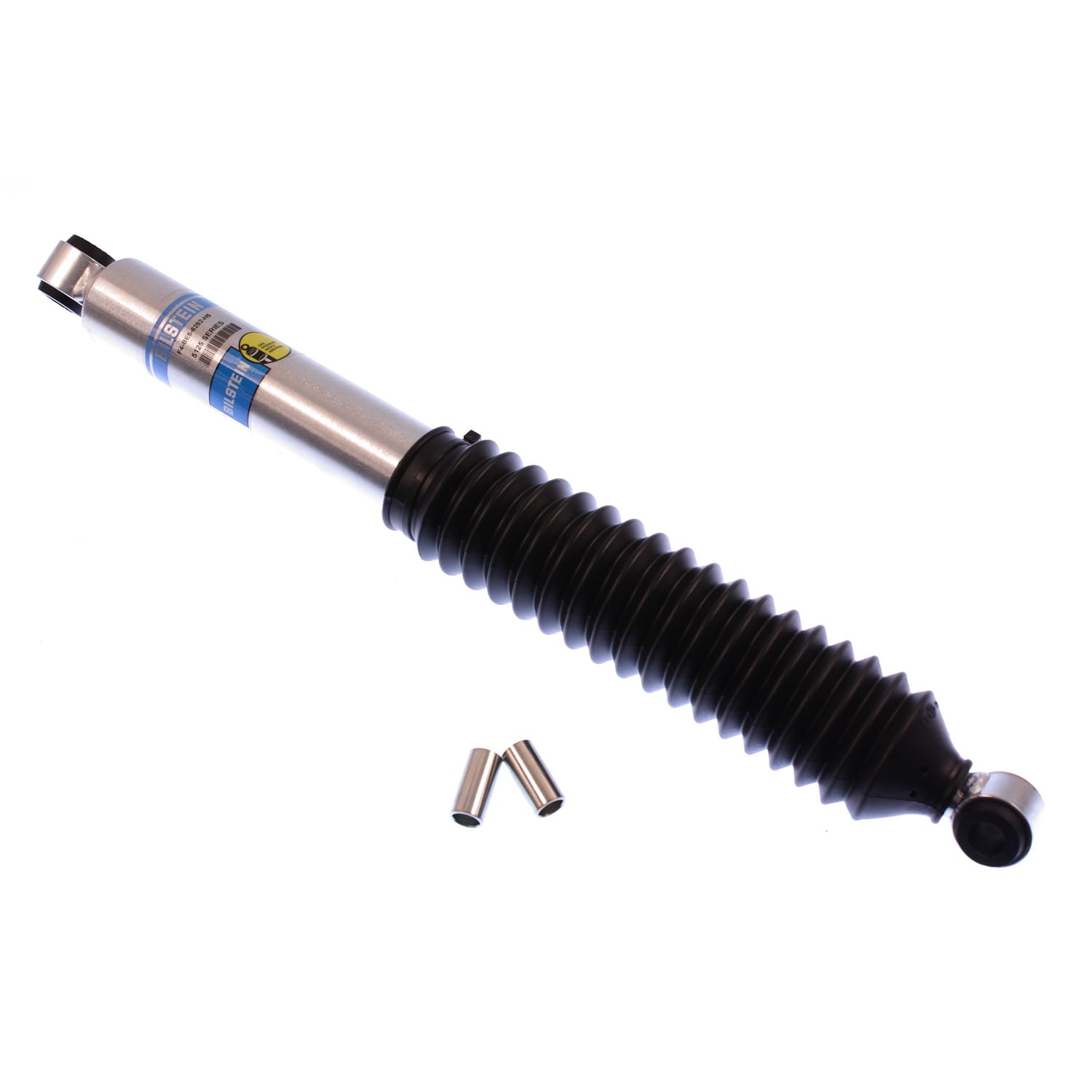

Bilstein 5100 Series 1987 Chevrolet Blazer Custom Deluxe Front 46mm Monotube Shock Absorber - 33-185590

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Upper Mount Type: Eye 5/8in
• Reservoir: No
• Boot Included: Black Bellows
• Lower Mount Type: Eye 5/8in
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Extended Length (in): 21.62
• Rebound @0.52m/S: 2495
• Extended Length (mm): 549.2
• Compression @0.52m/S: 620
• Piston Diameter: 46mm
• Collapsed Length (mm): 347.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 202.2
• Stroke/Travel Length (in): 7.96
• Series: B8 5125
• Collapsed Length (in): 13.66
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Mount Type: Eye-to-Eye
• Finish: Zinc Plated

Application

• Chevrolet Silverado 1500 1999-2006, Silverado 1500 Classic 2007, Ford Bronco 1966-1977, GMC Sierra 1500 1999-2006, Sierra 1500 Classic 2007
