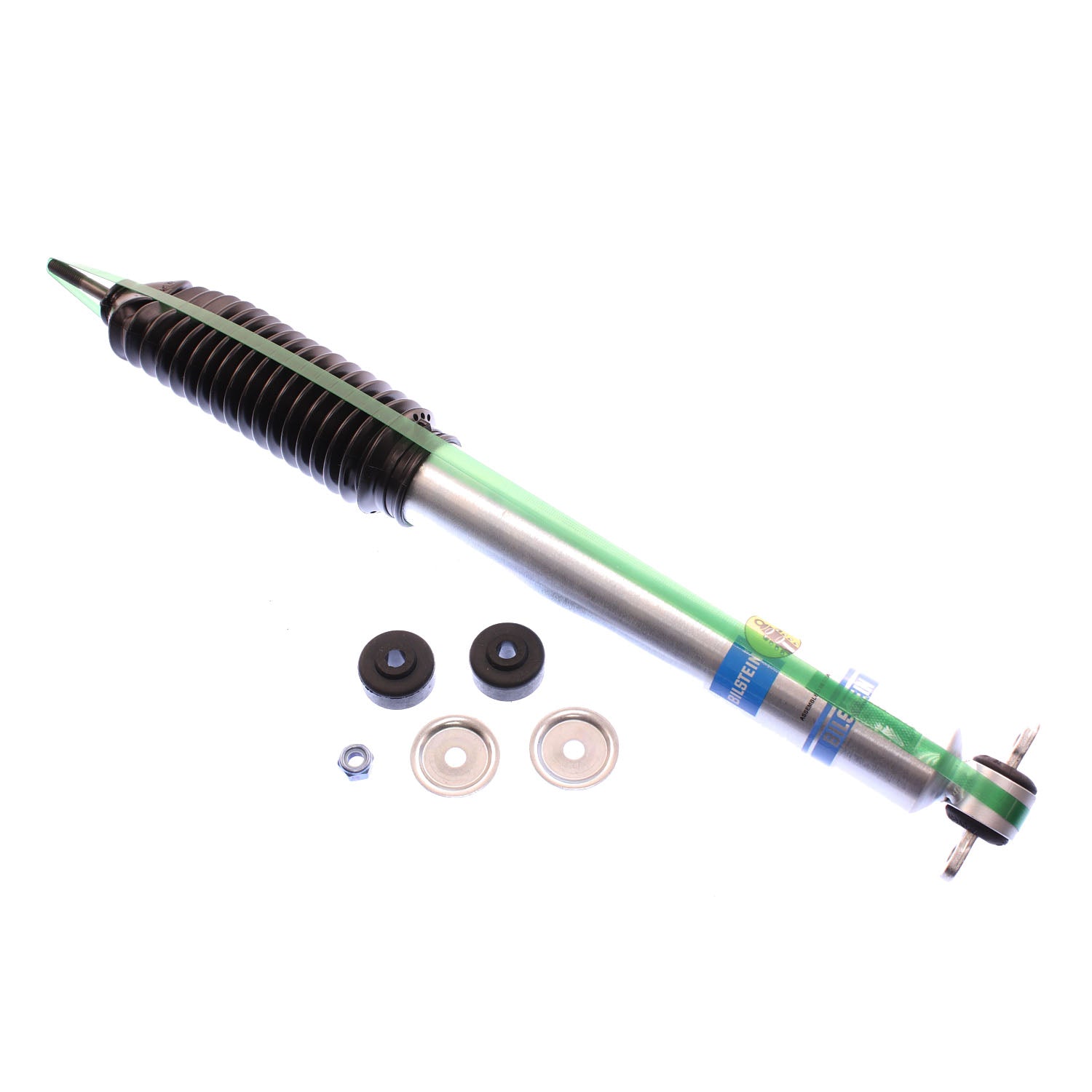

Bilstein 5100 Series 1984 Jeep Cherokee Base Front 46mm Monotube Shock Absorber - 24-188197

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Internal Design: Monotube
• Boot Included: Black Bellows
• Lower Mount Type: Bar Pin
• Series: B8 5100
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Extended Length (in): 24.63
• Extended Length (mm): 625.5
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 244.6
• Stroke/Travel Length (in): 9.63
• Collapsed Length (in): 14.98
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-Coilover)
• Upper Mount Type: Stem
• Collapsed Length (mm): 380.5
• Reservoir: No

Application

• Jeep Cherokee 1984-2001, Comanche 1986-1992, Grand Cherokee 1993-2004, Grand Wagoneer 1993, Wagoneer 1984-1990
