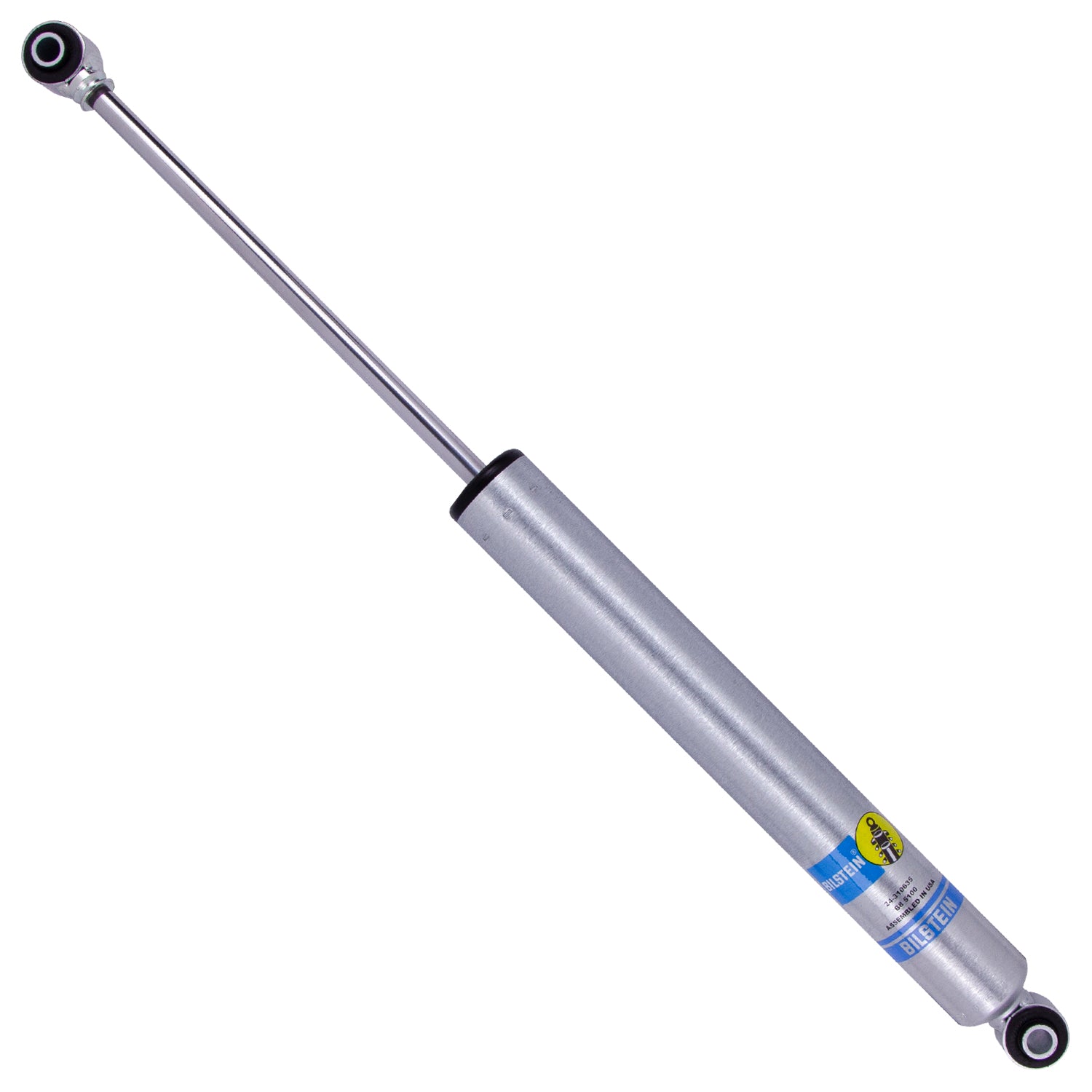

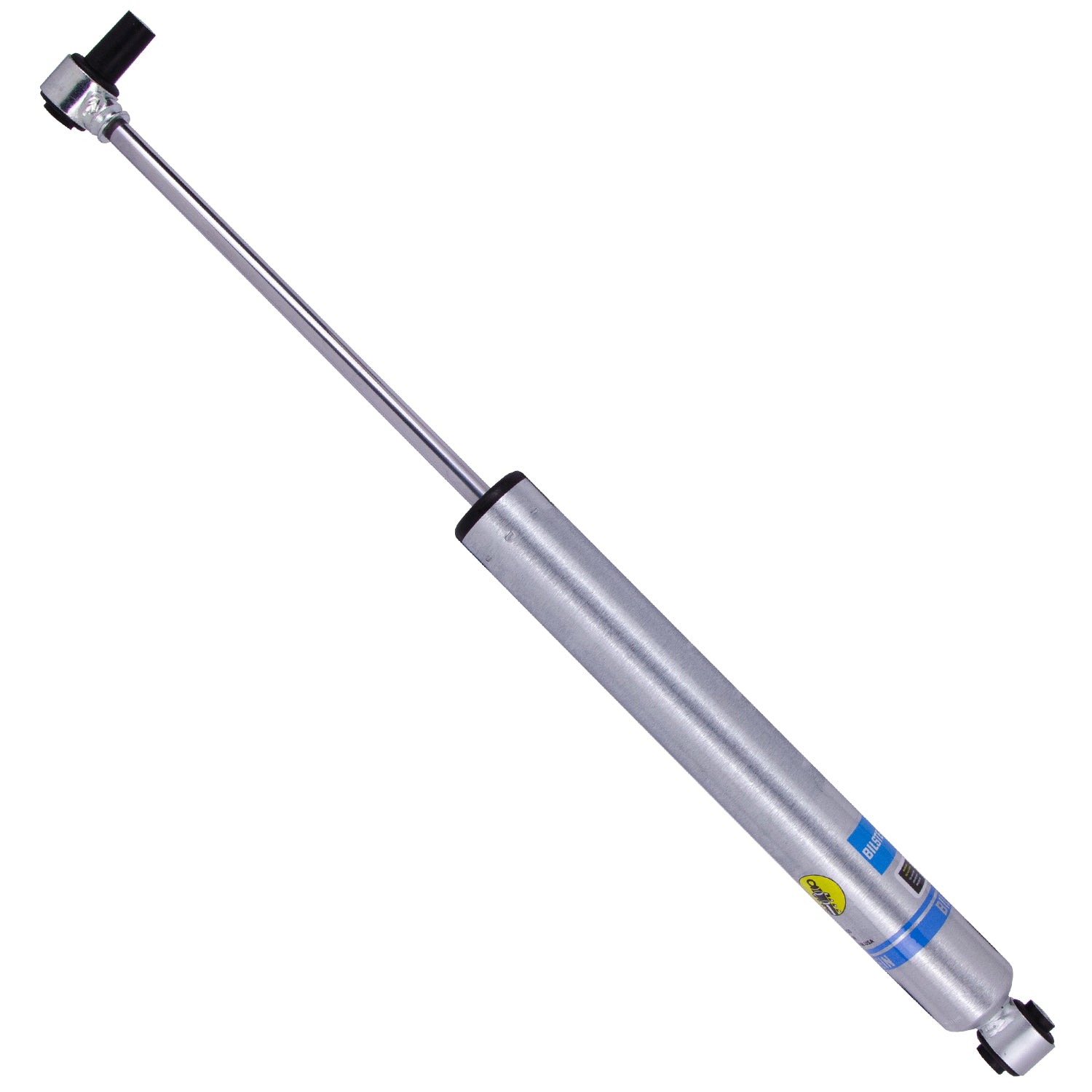

Bilstein 5100 Series 18-21 Jeep Wrangler Front Shock Absorber - 24-310635

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Upper Mount Type: Eye 12.8mm
• Internal Design: Monotube
• Extended Length (mm): 722.0
• Boot Included: No
• Collapsed Length (in): 18.31
• Adjustable Damping: Non-Adjustable
• Piston Diameter: 46mm
• Collapsed Length (mm): 465.0
• Stroke/Travel Length (in): 10.12
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 257.1
• Series: B8 5100
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-coilover)
• Reservoir: No
• Extended Length (in): 28.43
• Lower Mount Type: Eye 12.8mm
• Spring Seat Included: No

Application

• Jeep Wrangler 2018-2026
