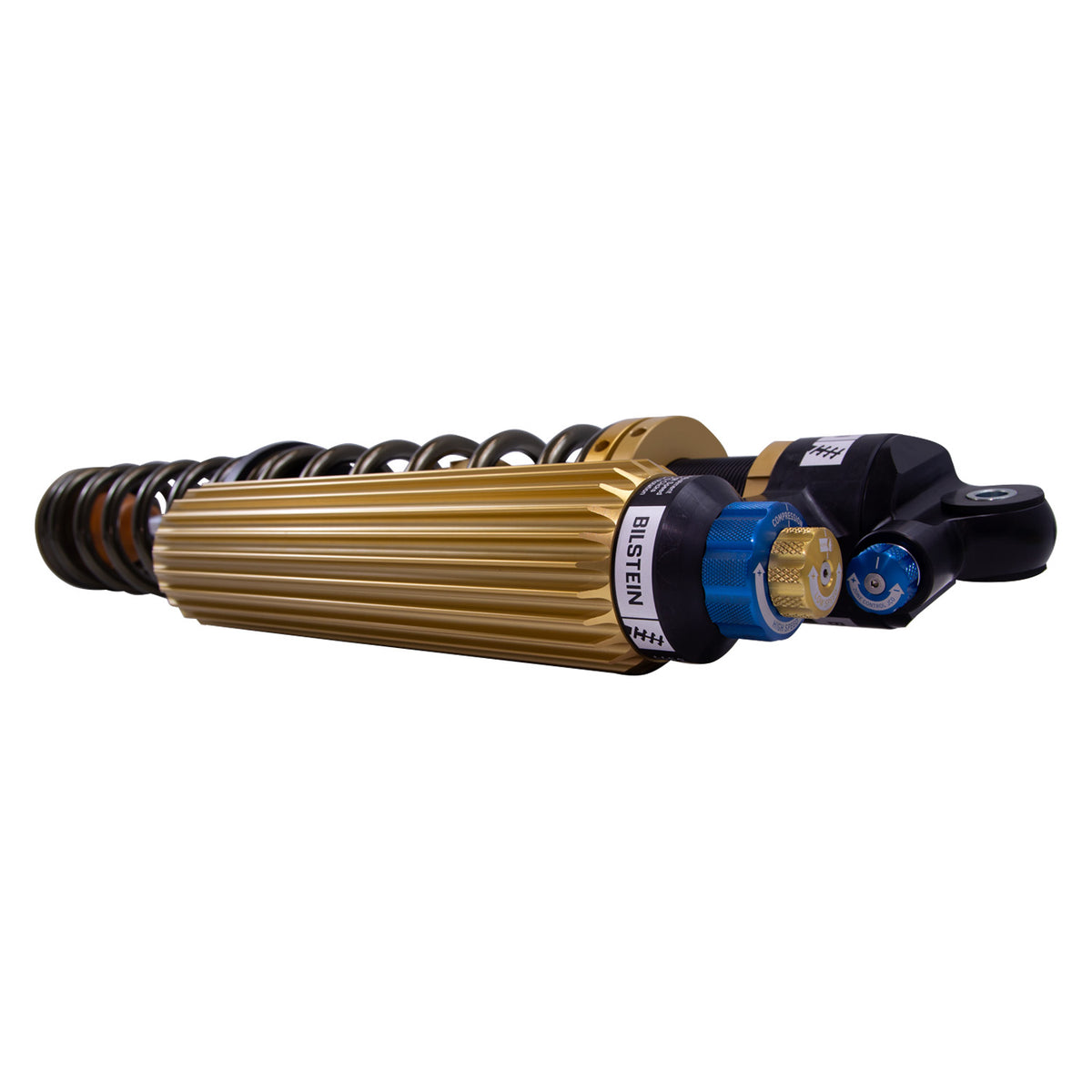

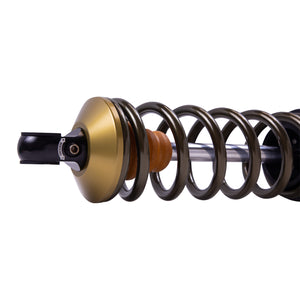

Bilstein 20-21 Can-Am Maverick X3 RS Turbo R Black Hawk Powersports Shock & Coil Spring Assembly -FR - 41-330579

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

Features

• Zone Control CR - Position Sensitive Damping

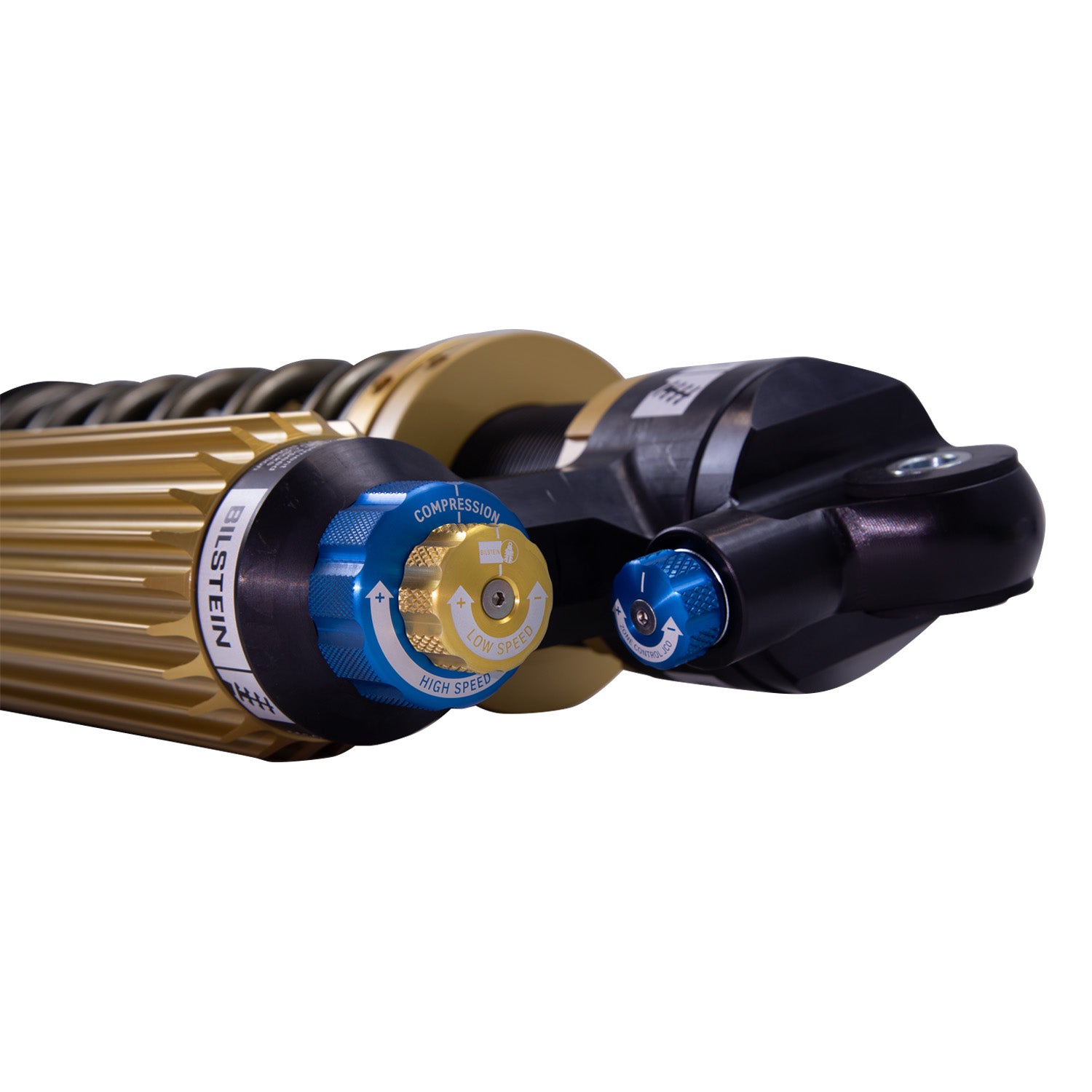

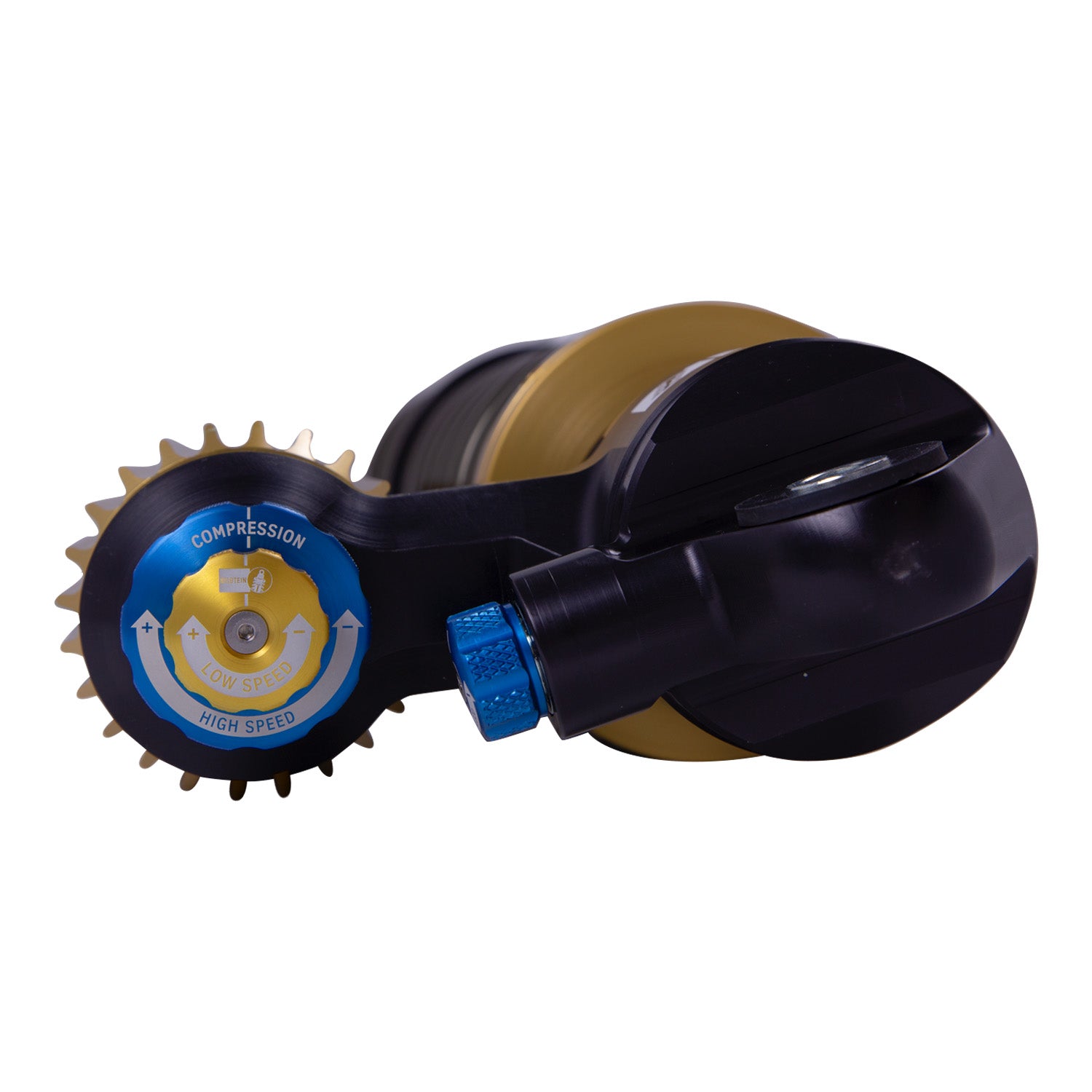

• 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound
• Direct Fit Motorsports Package

Specifications

• Boot Included: No
• Position: Front Right
• Make: Can-Am
• Model: Maverick X3
• Body Design: Threaded Body
• Lower Mount Type: Eye 12mm (ID)
• Collapsed Length (mm): 518.2
• Series: Black Hawk Powersports
• Adjustable Damping: 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
• Reservoir: Yes
• Upper Mount Type: Eye 12mm (ID)
• Body Material: Aluminum alloy
• Internal Design: Monotube
• Extended Length (mm): 809.7
• Rebound @0.52m/S: Adjustable
• Finish: Type III Hard Anodized
• Compression @0.52m/S: Adjustable
• Extended Length (in): 31.88
• Collapsed Length (in): 20.40
• Piston Diameter: 60mm
• Stroke/Travel Length (in): 11.48
• Shaft Diameter (mm): 22.0
• Stroke/Travel Length (mm): 291.6

Application

• Can-Am Maverick X3 RS Turbo R 2020-2021, Maverick X3 RS Turbo RR 2022-2023, Maverick X3 X mr Turbo R 2018-2019, Maverick X3 X mr Turbo RR 2020-2022, Maverick X3 X mr Turbo RR 72 2022-2023, Maverick X3 X rc Turbo R 2018-2019, Maverick X3 X
