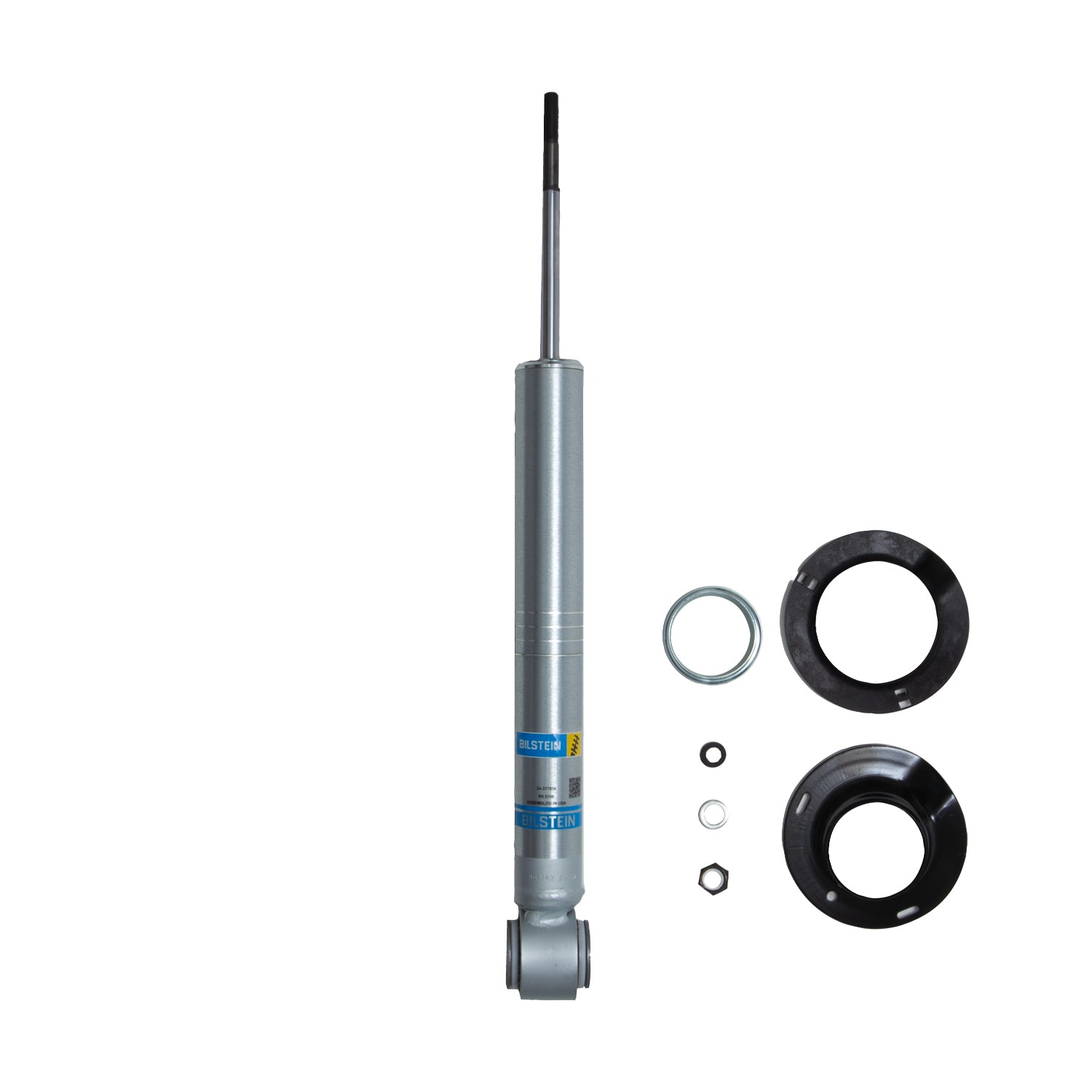

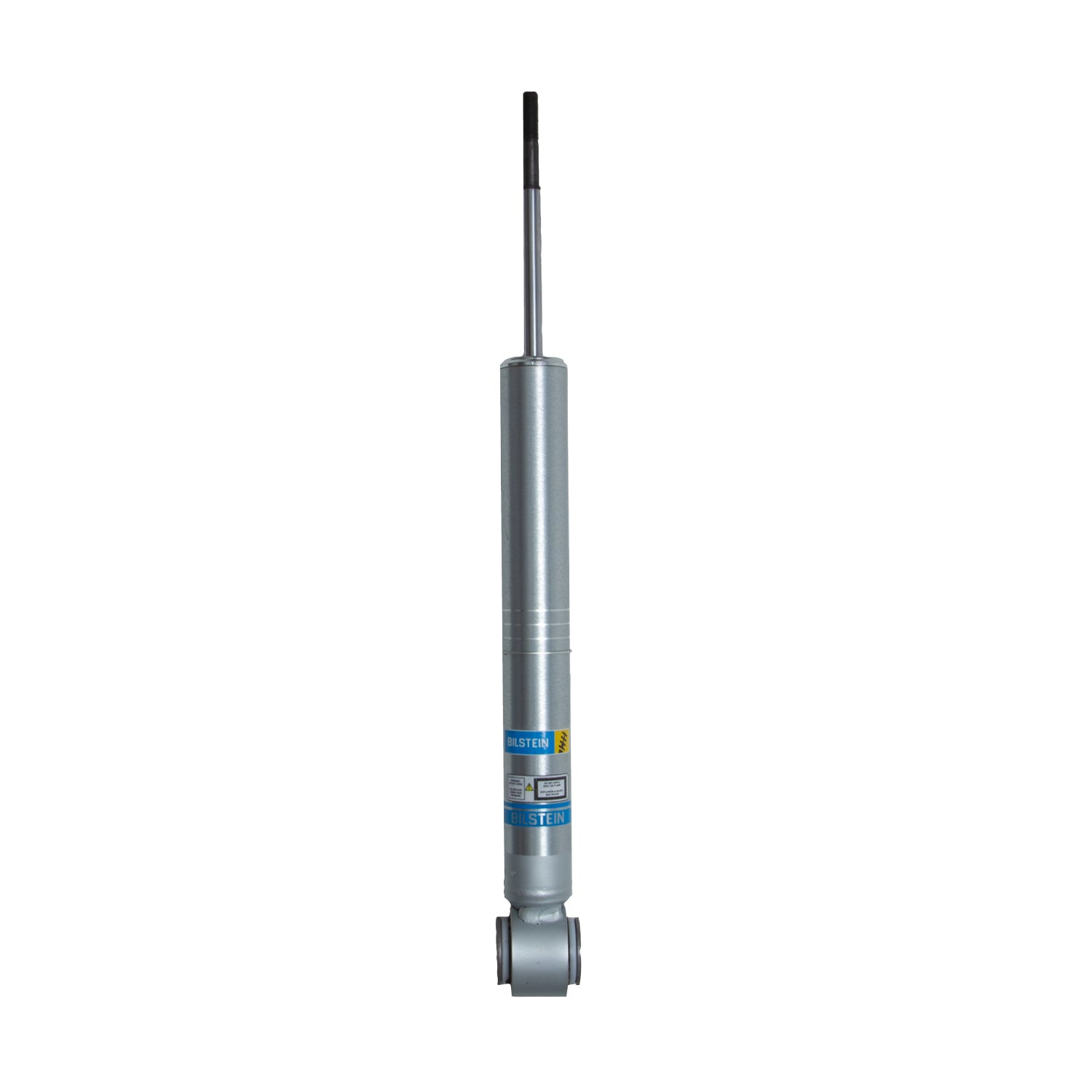

Bilstein 09-13 Ford F-150 B8 5100 (Ride Height Adjustable) Front Suspension Shock Absorber - 24-317856

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75in of lift, depending on the application

Specifications

• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Series: B8 5100 (Ride Height Adjustable)
• Boot Included: No
• Lower Mount Type: Eye 20.3mm
• Finish: Zinc Plated
• Adjustable Damping: Non-Adjustable
• Extended Length (in): 21.86
• Extended Length (mm): 555.2
• Spring Seat Included: Yes
• Upper Mount Type: Stem
• Internal Design: Monotube
• Collapsed Length (in): 16.93
• Piston Diameter: 46mm
• Collapsed Length (mm): 430.0
• Stroke/Travel Length (mm): 125.2
• Shaft Diameter: 14mm
• Stroke/Travel Length (in): 4.93

Application

• Ford F-150 2009-2013
