Fel-Pro 1267 Engine Intake Manifold Gasket Set

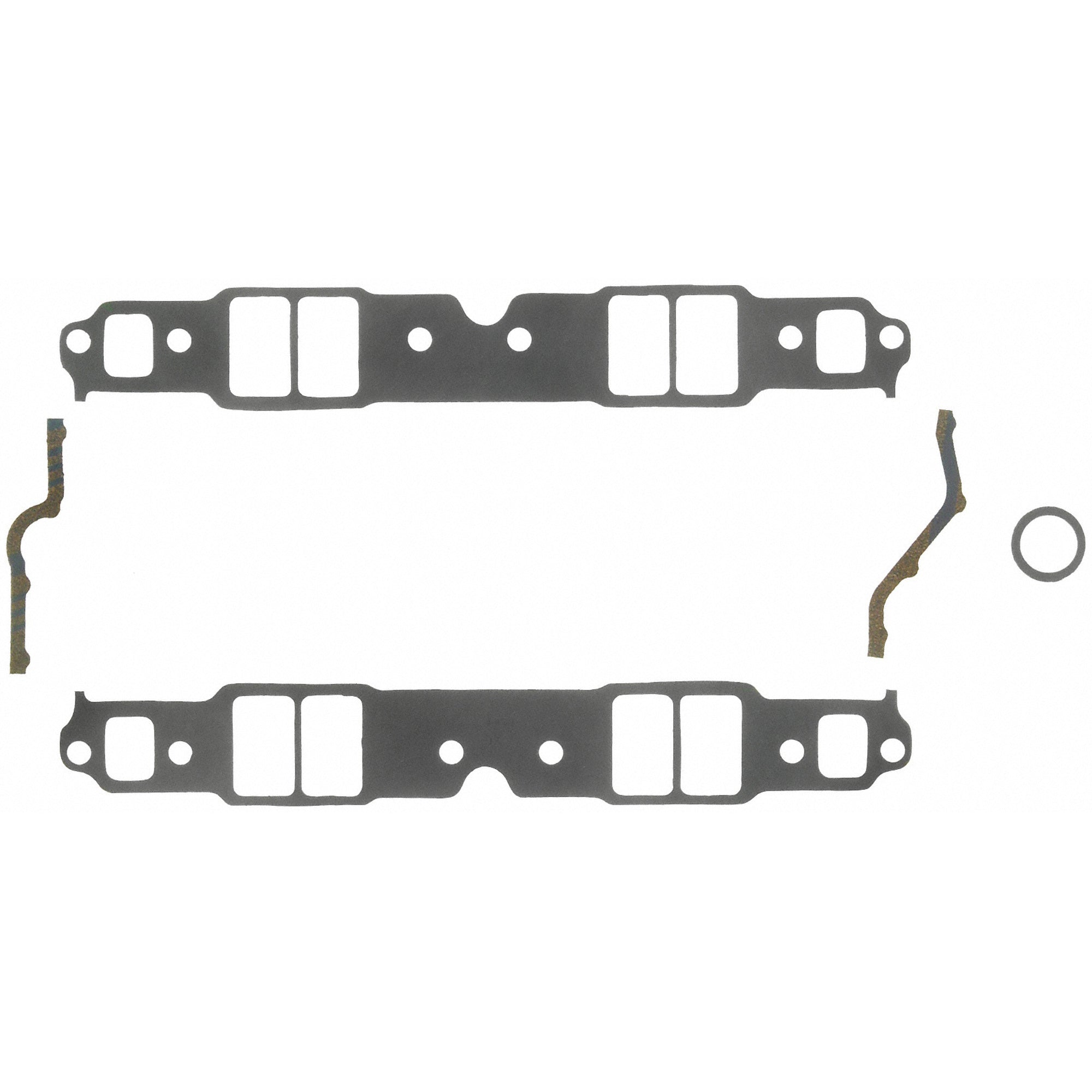

FEL-PRO 1267 Composite w/coating Engine Intake Manifold Gasket Set

Features

• Fel-Pro performance intake manifold gaskets have been tested with virtually all aftermarket cylinder head and intake manifold combinations
• Performance intake manifold gaskets designed without a metal core, to allow engine builders to trim the gasket for exact fit on modified ports
• No exhaust crossover openings or blocking shields
• For use with cast iron and aluminum cylinder heads
• Not intended for use in emission controlled vehicles

Specifications

• Material: Composite w/coating
• Thickness: 0.120 IN
• Port Shape: Rectangle
• Grade Type: Performance
• Engine Displacement: 262, 265, 267, 283, 302, 305, 307, 327, 350, 400, 400 Race
• Application Notes: Cast iron & aluminum heads w/conventional port and bolt locations - Large race port
• Product Notes: No exhaust crossover openings or blocking shields; Gaskets fit many O.E. and aftermarket heads; Brodix 12SP-S; Cutout for Brodix water fitting incl
• Engine Family: Chevrolet V8 Small Block
• Thickness (in.): 0.120 IN
• Manufacturer: GM Performance
• Port Size (in.): 1.38 x 2.28 IN

Application

• GMP Performance V8, 262 (4.3L), 265 (4.3L), 267 (4.4L), 283 (4.6L), 302 (4.9L), 305 (5.0L), 307 (5.L), 327 (5.3L), 350 (5.7L), 400 (6.6L)
