VMP 10-Rib Upgrade Kit for '11-17 Odin Supercharged Coyote with AC - 20% OD - VMP-SUP033

Odin 10-Rib "Upgrade Kit" with AC 20% OD balancer for 11-17 Coyote 5.0 L (Mustang & F-150)

Upgrade kits are for customers that already have the VMP no-grind style FEAD system that came with there Odin or Loki supercharger kit. This kit provides additionally pulleys and an upgraded tensioner to accommodate 10-rib style belts along with a new SFI approved ATI balancer designed specifically for VMP.

Afraid of belt slip? Convert your 6-Rib Odin/Loki kit to an 10-Rib belt drive system! With more ribs on your drive system, there is more surface area to help make belt slip a thing of the past. Not only are you adding more ribs, but this kit will also come with the VMP Heavy Duty Tensioner for more belt tension as well.

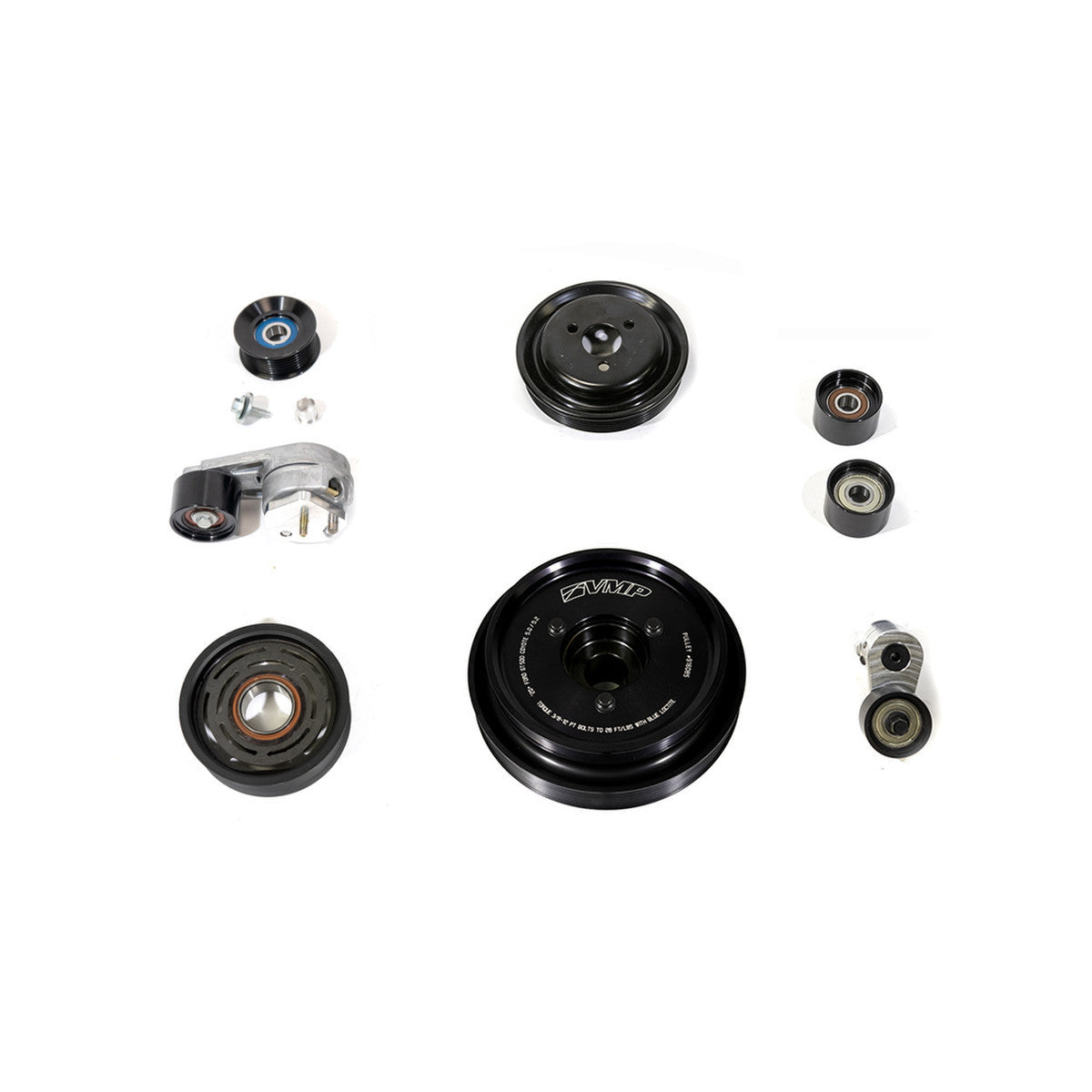

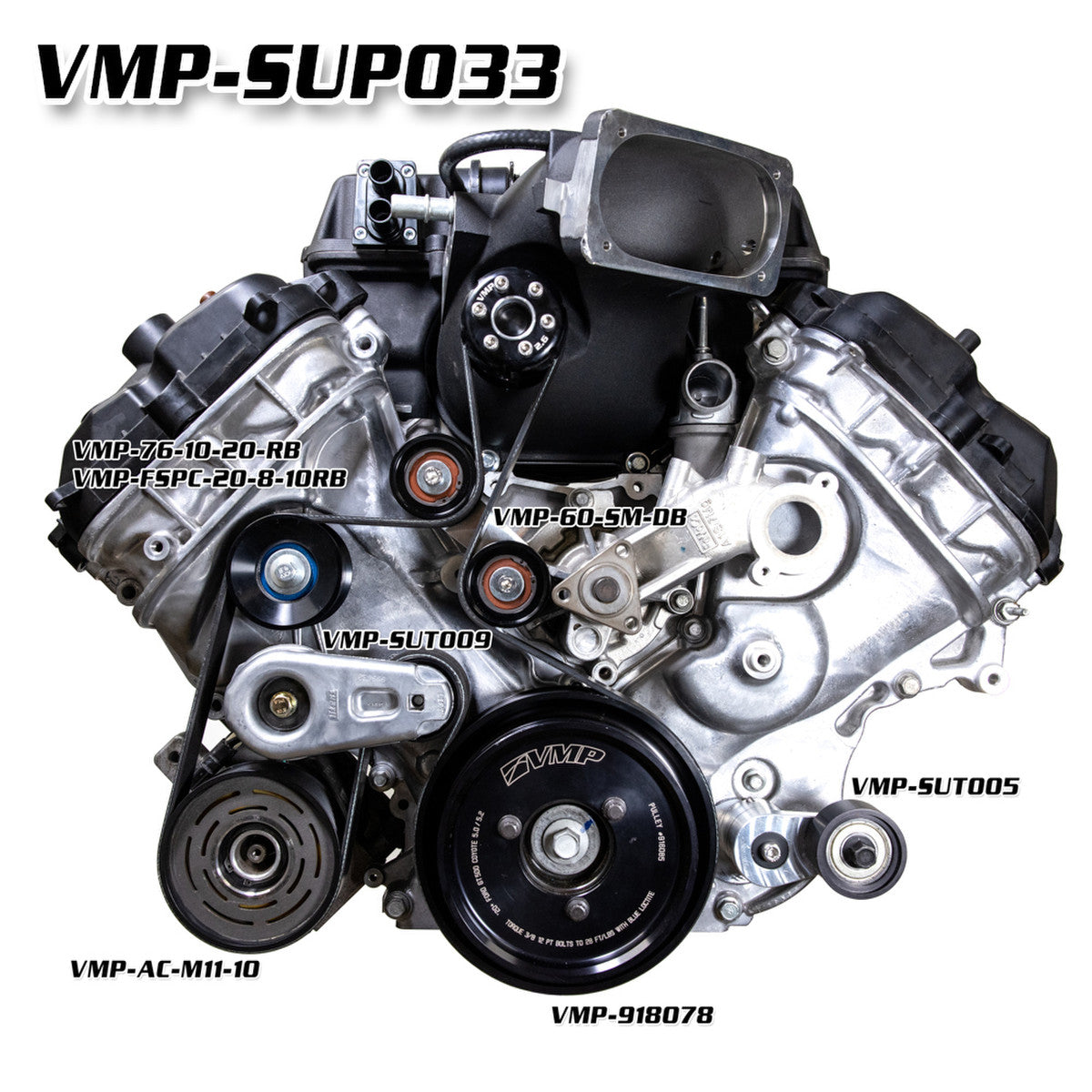

Includes:

• Odin/G3R HD Tensioner VMP-SUT009
• Super Low Profile Accessory Belt Tensioner VMP-SUT005
• ATI/VMP 20% OD balancer (new version VMP-918075)
• 10-rib AC Clutch Pulley VMP-AC-M11-10
• 3-bolt Water Pump Pulley with back lip removed VMP-SUP076
• Ribbed idler and spacer for front cover VMP-76-10-20-RB & VMP-FSPC-20-8-10RB
• VMP 60 mm double row idler pulley VMP-60-SM-DB (2 for FEAD bracket)
• 4-rib accessory belt
• Pulley bolts VMP-SUA017

All necessary hardware

**This kit does NOT include a 10-Rib Supercharger Pulley.

VMP 10-rib kits for Odin use a new hub spacer (VMP-ODP002 / .940" thick) to properly offset the supercharger pulley when using our existing line of Coyote and GT500 10-rib pulleys.

Currently available sizes / Boost psi with 20% lower

Griptec:
VMP-24-10-B-GR / 28 psi (cams required)
VMP-25-10-B-GR / 27 psi (cams required)
VMP-26-10-B-GR / 26 psi (cams required)
VMP-27-10-B-GR / 24 psi
VMP-28-10-B-GR / 22 psi
VMP-29-10-B-GR / 20 psi

Standard:
VMP-24-10-B / 28 psi (Griptec recommended, cams required)
VMP-25-10-B / 27 psi (Griptec recommended, cams required)
VMP-26-10-B / 26 psi (Griptec recommended, cams required)
VMP-27-10-B / 24 psi
VMP-28-10-B / 22 psi
VMP-29-10-B / 20 psi
VMP-30-10-B / 18 psi
VMP-31-10-B / 17 psi
VMP-32-10-B / 16 psi
VMP-33-10-B / 15 psi
VMP-34-10-B / 14 psi
VMP-36-10-B / 12 psi

*Stage 3 ported blowers will make 2psi over standard Stage 2.  Stage 3 porting is required to make over 24psi.

*The balancer converts to a 4-rib accessory belt (included, for replacements use stock 2020 GT500 Ford KR3Z-8620-B / JK4682 / Bando 4PK1715).  Install belt on front 4-ribs of water pump and alternator pulley.

*Supercharger belt not included

*All parts may be purchased individually using the above PNs

Available VMP 10-rib pulleys:

 Installation Video:
