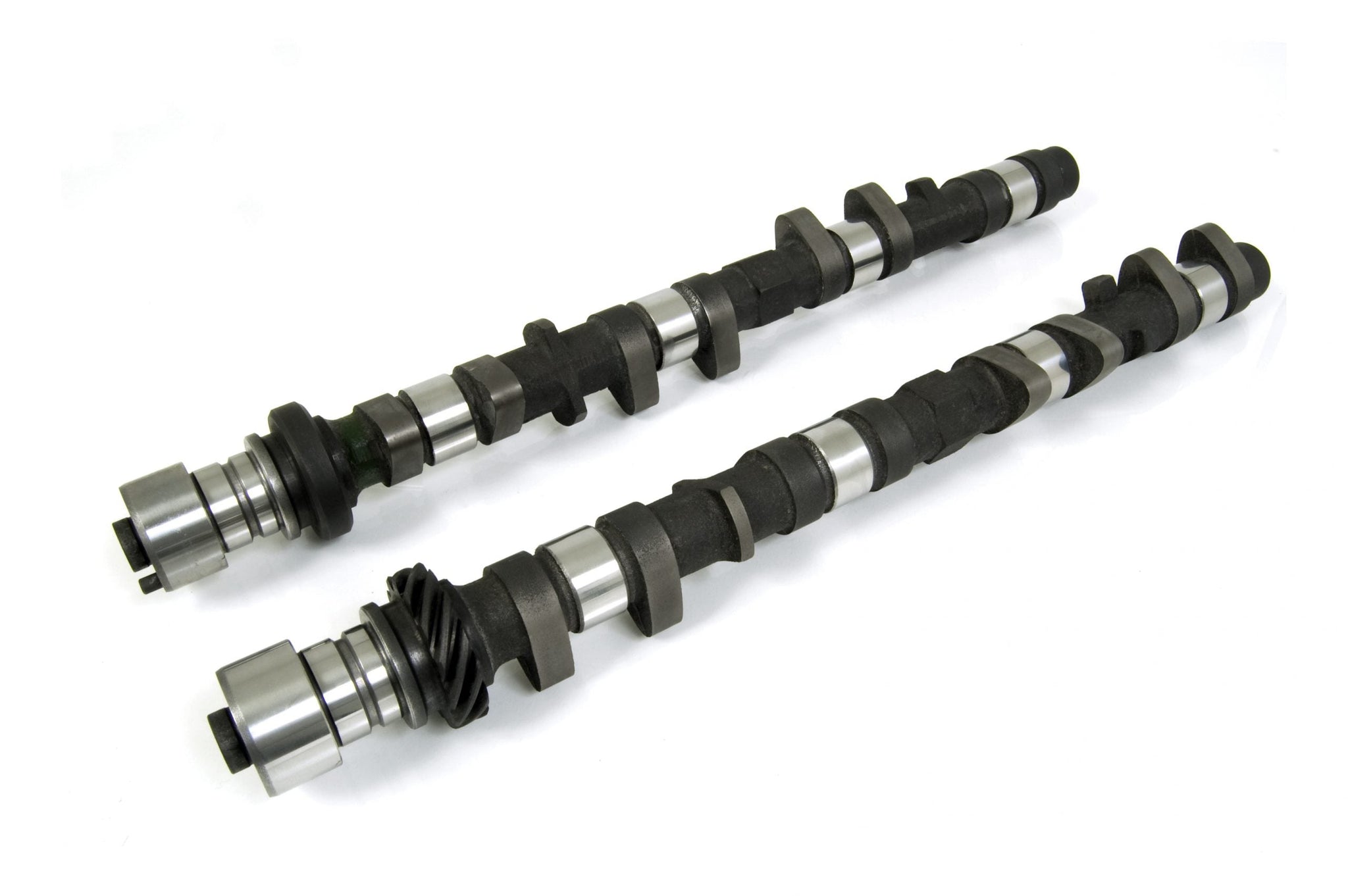

Piper Cams Camshaft - Rally (Toyota)

SKU: SKU: TOY16VBP300B

Profile: BP300.

Application: Rally.

Unit Type: Blank.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 4 kg
Application Rally
Power Band 3000-8000
Duration Inlet 300°
Duration Exhaust 300°
Valve Inlet Lift .351" 8.89mm
Valve Exhaust Lift .349" 8.84mm
Timing Inlet 44 - 76
Timing Exhaust 76 - 44
Full Inlet Lift 106°
Full Exhaust Lift 106°
TDC Inlet Lift .144" 3.62mm
TDC Exhaust Lift .142" 3.57mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • Toyota MR2 MK1 1.6 16v 4AGE
