SKU: SKU: MET457B
Profile: 457.
Application: BRISCA MINISTOCK.
Unit Type: Blank.
Designed to be used with a 20mm restrictor.

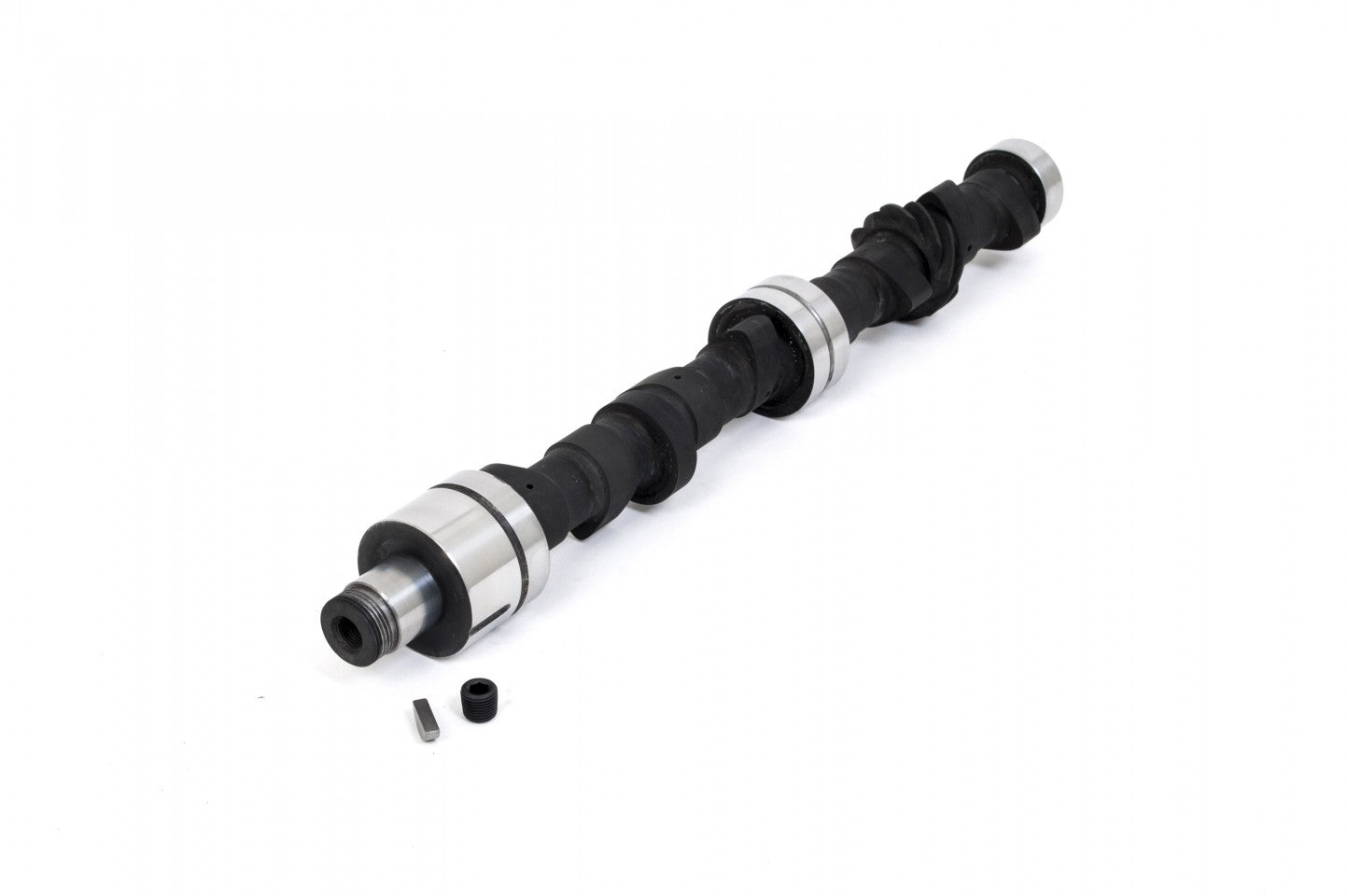

Blank camshafts are only available as A+ Series (Metro slot type oil pump drive) and have drilled lobes for additional lubrication.
Download:-
Right click link and select 'Save link as' to download.
Click link to open in a new tab.
Please check the end float of the camshaft when using non O.E replacement oil pump, as additional machining may be required to the pump.
| Weight | 2 kg |
|---|---|
| Application | Race |
| Power Band | 3000-7500 |
| Duration Inlet | 276° |
| Duration Exhaust | 284° |
| Valve Inlet Lift | .400" 10.16mm |
| Valve Exhaust Lift | .400" 10.16mm |
| Timing Inlet | 32 - 64 |
| Timing Exhaust | 68 - 36 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .103" 2.62mm |
| TDC Exhaust Lift | .093" 2.36mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
