SKU: SKU: MAZMX16BP270HR
Profile: BP270.
Application: Fast Road.

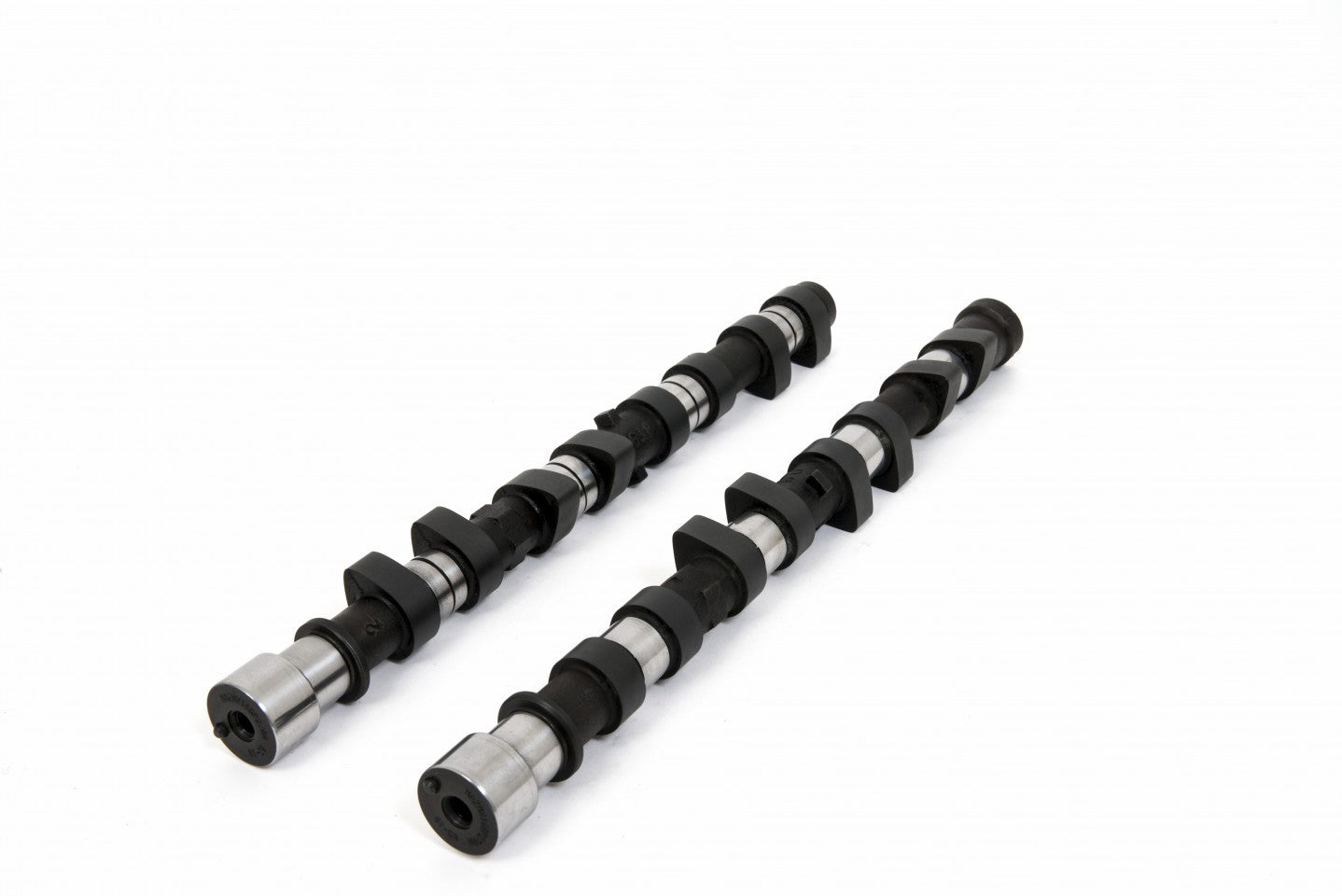

Unit Type: Re-Profiled Camshafts.
Note: This profile suits the 1600cc Mk1 Non VVTI BP engine.
Note:These are re-profile camshaft only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.
Note: To suit engines utilising hydraulic followers.
Note: Mechanical profiles available upon request. Piper 'Top Hat Shims' will be required to keep within service shim sizes when using mechanical profiles.
| Weight | 3 kg |
|---|---|
| Application | Fast Road |
| Power Band | 1500-6500 |
| Power Increase | 10BHP |
| Duration Inlet | 238° |
| Duration Exhaust | 256° |
| Valve Inlet Lift | .336" 8.53mm |
| Valve Exhaust Lift | .325" 8.26mm |
| Timing Inlet | Sep-49 |
| Timing Exhaust | 58 - 18 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .016" 0.41mm |
| TDC Exhaust Lift | .028" 0.70mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
