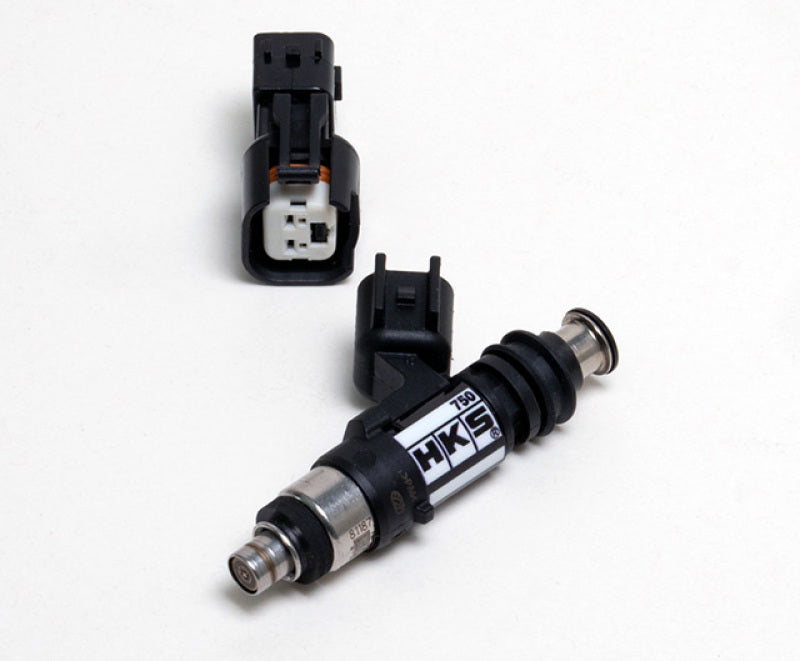

HKS Honda S2000 99-05 F20C AP1 Injector Upgrade Kit - 750cc - 14002-AH001

■Features

• 6 jet injection hole.
• Improved injector performance has increased the output volume, while shorting the invalid injection time compared to the previous 650 cc (yellow) type.
   (Voltage 14V and Fuel pressure 300 kPa　Previous 650 cc: 1350 μsec >>> New 750 cc: 1030 μsec).
• A conversion harness is provided. It can be connected to the factory harness without modification.
• O-rings (2-piece) and spacer (backup ring) have been included to the fuel line connector for improved sealing.
• All injectors are tested. 4 injectors with similar performance are combined into one kit for one vehicle.

■Inactive Injection Time

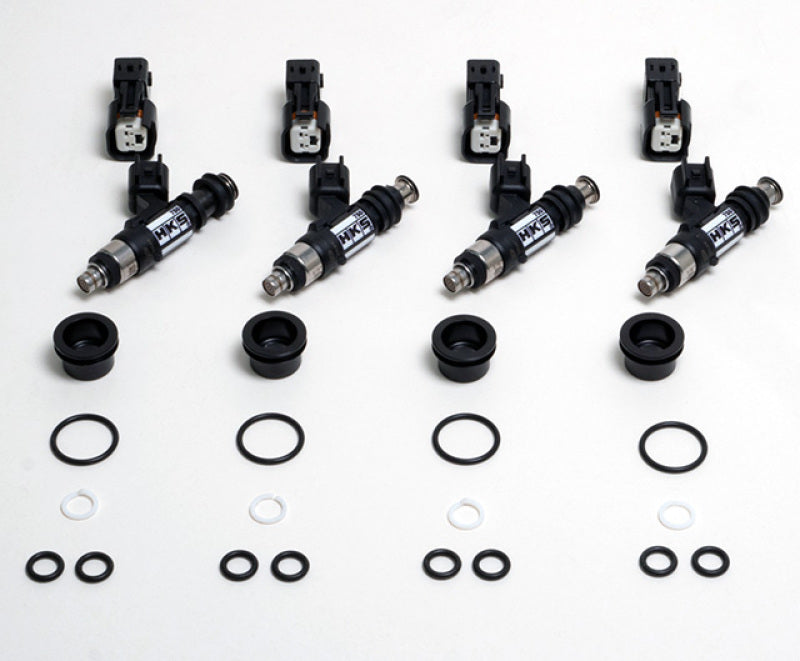

■Components

• Injector (x4)
• Conversion Connector
• O-Ring
• Backup Ring (Spacer)
• Head-side Collar, etc.

■Note

• Please upgrade fuel pump and fuel rail according to vehicle specifications.
