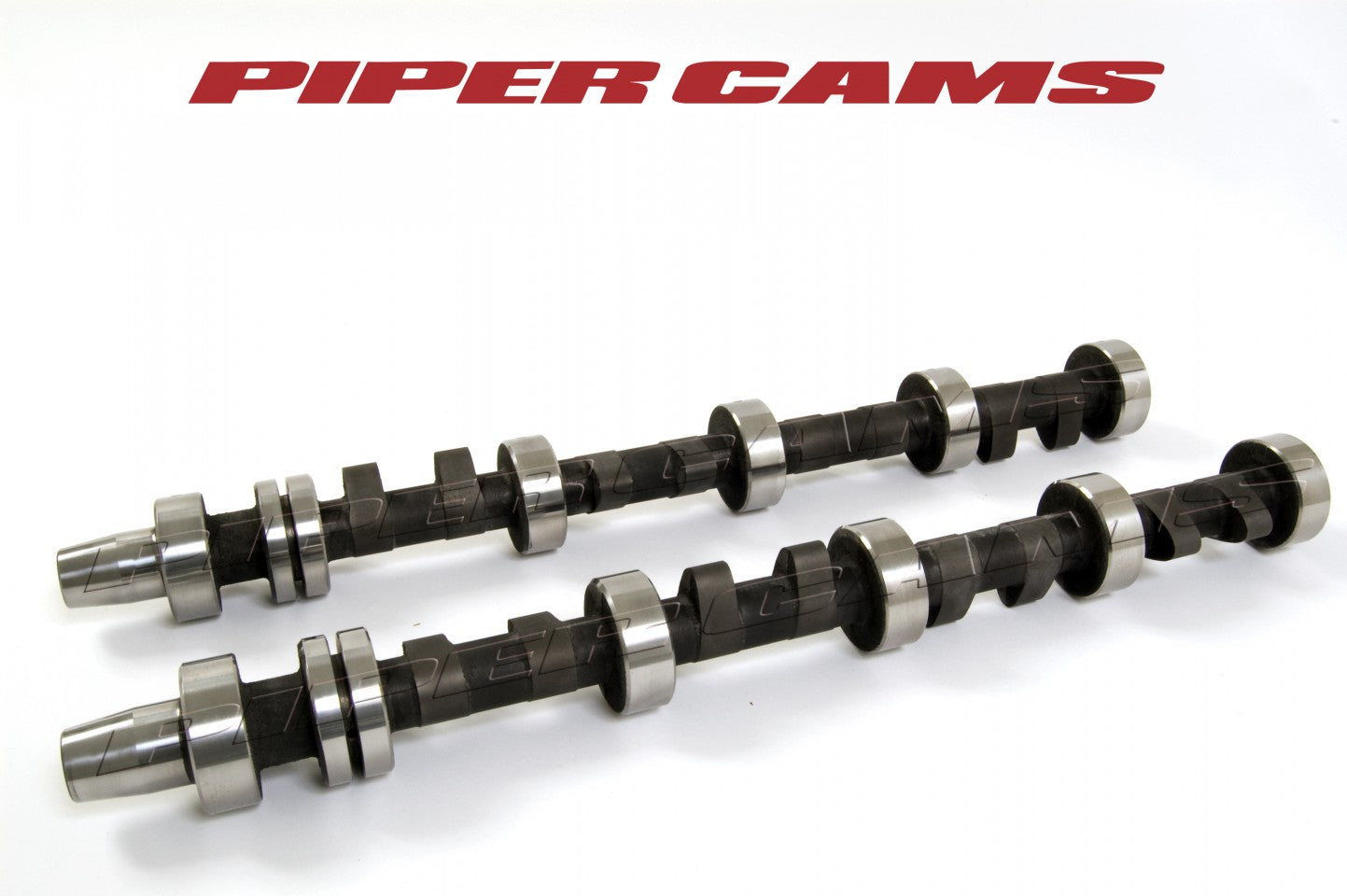

Piper Cams Camshaft - Race (Ford)

SKU: SKU: BDAL1B

Profile: L1.

Application: Race.

Unit Type: Blank.

Download:-

Timing Data.

Right click the link and select 'Save link as' to download.

Click link to open in a new tab.

Specifications

Weight 3 kg
Application Race
Duration Inlet 304°
Duration Exhaust 304°
Valve Inlet Lift .400" 10.16mm
Valve Exhaust Lift .400" 10.16mm
Timing Inlet 46 - 78
Timing Exhaust 78 - 46
Full Inlet Lift 106°
Full Exhaust Lift 106°
TDC Inlet Lift .134" 3.40mm
TDC Exhaust Lift .134" 3.40mm
Valve Inlet Clearance .010" .25mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • BDA / BDG / BDT
