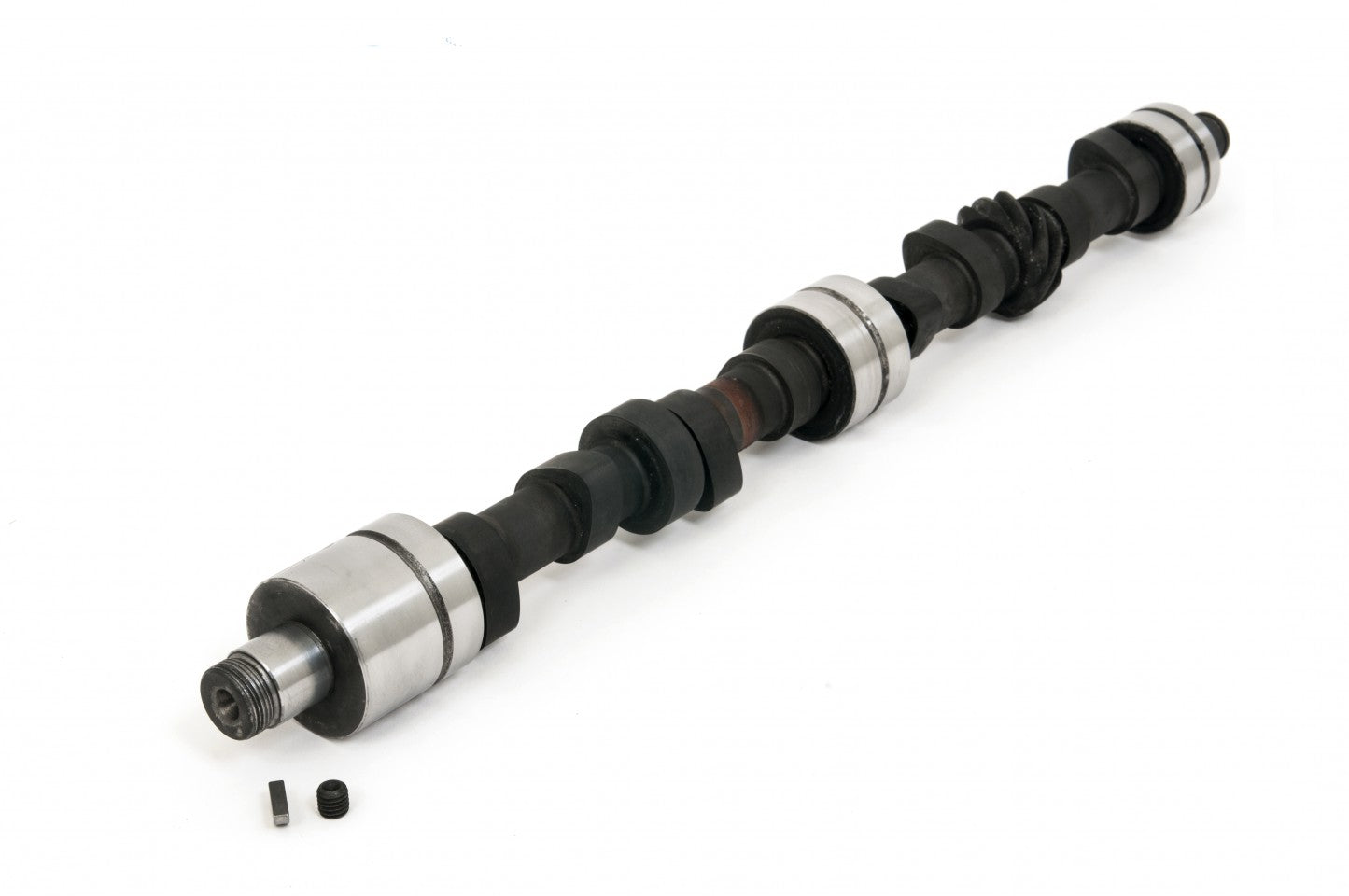

Piper Cams Camshaft - Race (BMC)

SKU: SKU: B851B

Profile: 851

Application: Ultimate Road.

Unit Type: Blank.

Note: For use with MGC diameter followers only.

Download:-

Fitting Guide.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Race
Power Band 3500-7800
Duration Inlet 328°
Duration Exhaust 328°
Valve Inlet Lift .537" 13.65mm
Valve Exhaust Lift .535" 13.60mm
Timing Inlet 60 - 88
Timing Exhaust 88 - 60
Full Inlet Lift 104°
TDC Inlet Lift .200" 5.07mm
TDC Exhaust Lift .198" 5.04mm
Valve Inlet Clearance .015" .38mm
Valve Exhaust Clearance .017" .43mm

Vehicle Application

  • B Series 18V Model POST 71
  • B Series PRE 71
