SKU: SKU: ICO58715C-700

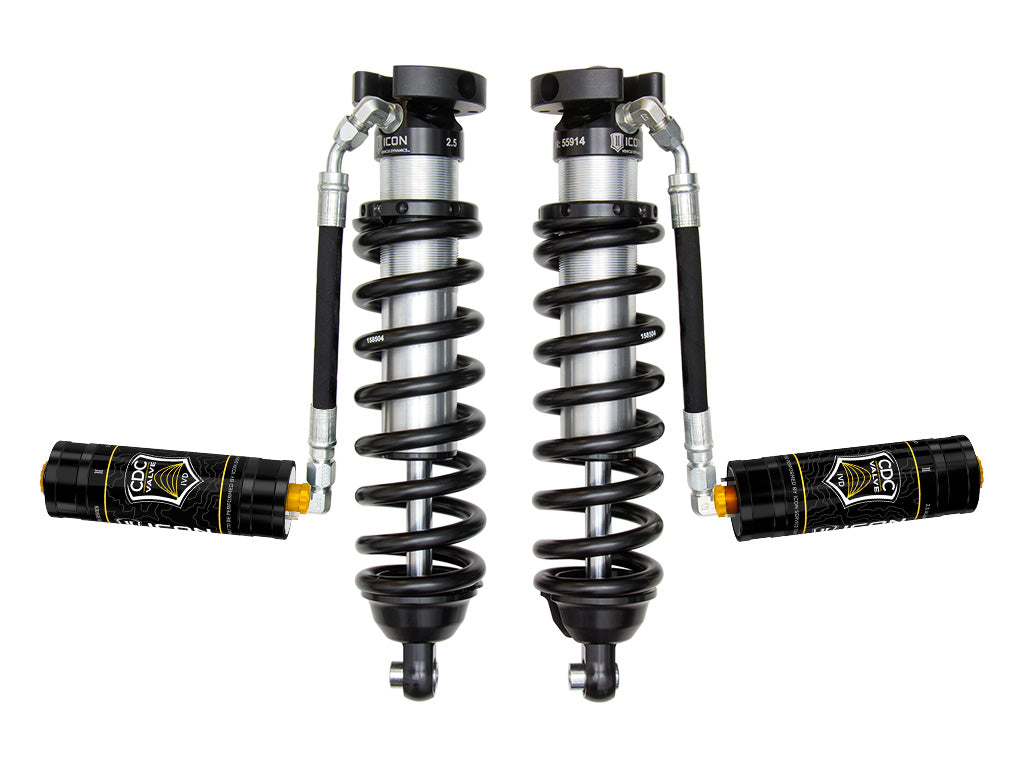

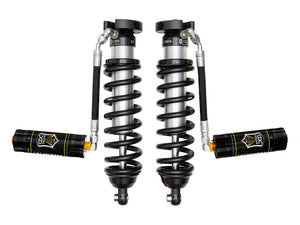

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Damping | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.5 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Extended Length | 19.85 IN |
| Gas Charged | yes |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Spring Rate Type | Linear |
| Travel Length | 5.36 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT |
