SKU: SKU: ZORZONC43F

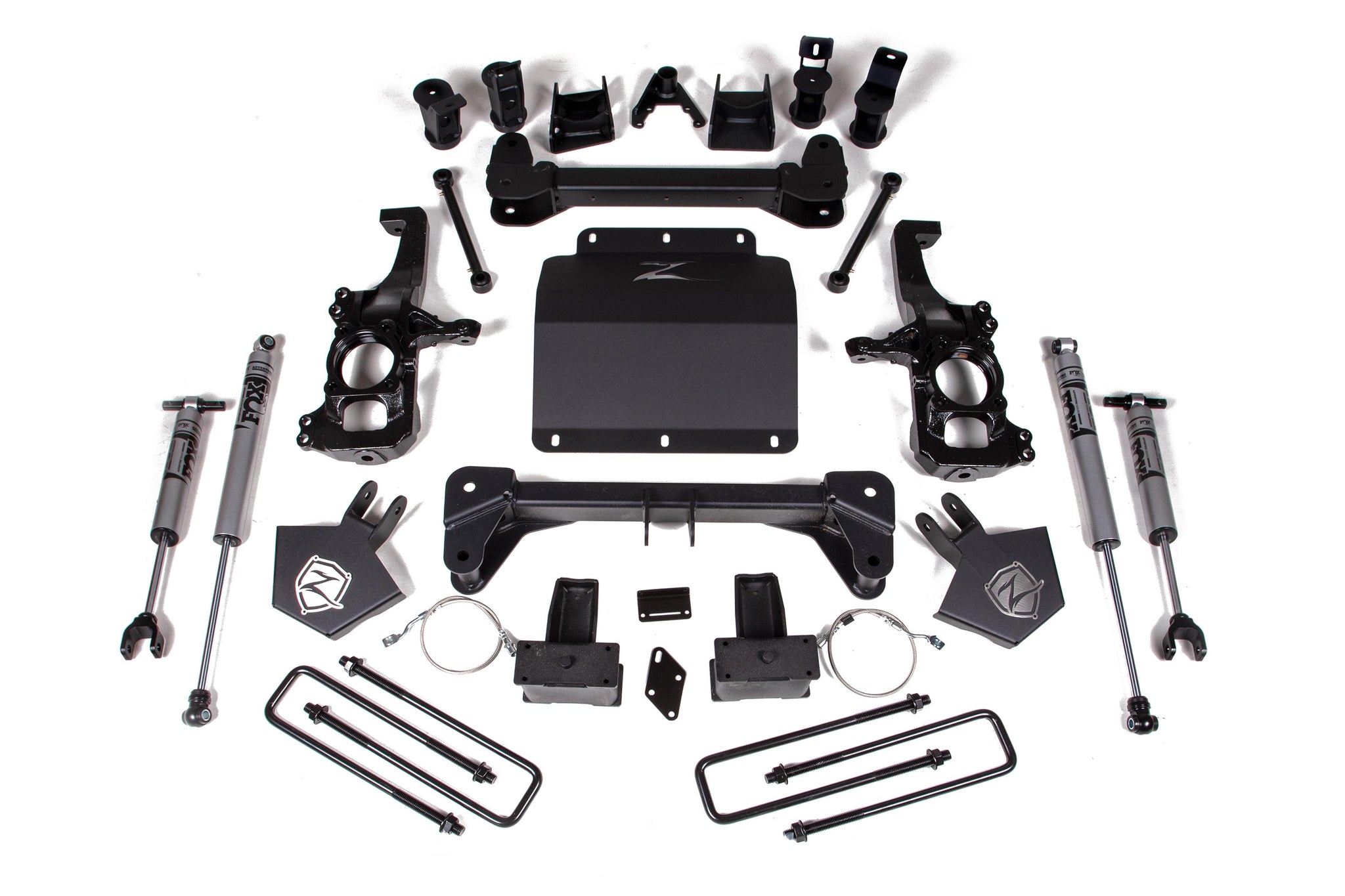

Take your GM 2500/3500HD to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to differential relocation and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
| Installation Difficulty | 4 out of 5 |
| Wheel Size 3 | 17 x 9 |
| Wheel Size 2 | 20 x 10 |
| Wheel Size | 20 x 9 |
| Requires Welding | No |
| Requires Metal Cutting | Yes |
| Max Tire Size 3 | 35 x 12.5 |
| Max Tire Size 2 | 35 x 12.5 |
| Max Tire Size | 37 x 12.5 |
| Material | 1/4" Steel |
| Lift Type | Suspension |
| Rear Lift Method | Block Kit |
| Front Lift Method | Knuckle & Drop Cross-Member |
| Rear Lift Height | 4.5" |
| Front Lift Height | 5" |
| Adjustable | No |
| Installation Time | 6-8 hrs |
| Fmvss Certification | N/A (See notes) |
| Accommodates Factory Wheels | See Notes |
| Finish | Powdercoat |
| Back Spacing 3 | 4.5-4.625" |
| Back Spacing 2 | 5-5.5" |
| Back Spacing | 5-5.5" |
Warranty: Limited
