Zone Offroad 19-24 GM 1500 4in Suspension System w/ Fox 2.0 ADV Series Rear Shocks - ZONC67F

SKU: SKU: ZORZONC67F

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

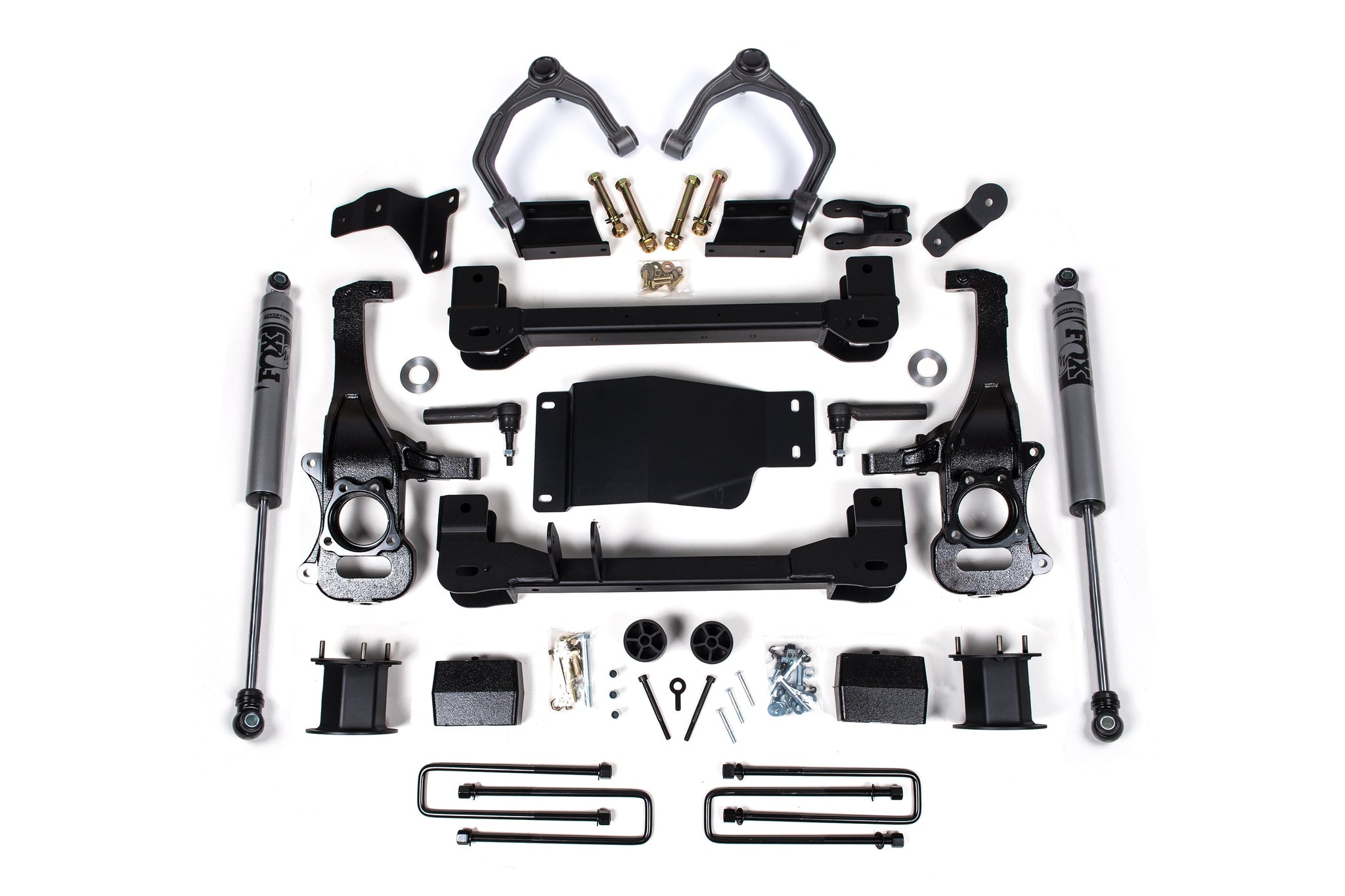

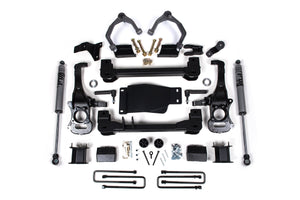

Take your Silverado/Sierra 1500 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, Adventure Series upper control arms and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Features

  • High strength 1/4" thick steel crossmembers with differential skid plate
  • Corrects geometry while offering more ground clearance than other kits on the market
  • Specially designed steering knuckles offer improved strength while correcting steering angles to maintain ESC compatibility
  • Maintains ride quality and handling characteristics with bolt-in ready fully welded strut spacers
  • Can be used with 17" aftermarket wheels or stock 20" wheels (doesn't require 4.5" BS wheels like other kits)
  • Factory Protection Plus included
  • Allows clearance for 33" tires
  • Lifts and levels the front to back stance

Specifications

Required Tools Reciprocating Saw; Welding Equipment; 36mm Socket; Grinder/Sanding Disc
Back Spacing See Associated Comments
Installation Time 8 hrs
Adjustable No
Front Lift Height 4"
Rear Lift Height 3"
Front Lift Method Strut Spacers
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Max Tire Size See Associated Comments
Requires Metal Cutting Yes
Requires Welding No
Wheel Size See Associated Comments
Installation Difficulty Difficult (4 out of 5)
Finish Powdercoat
Material Steel
Title Zone 4 Inch Suspension Lift Kit | Fox Adventure Shocks

Warranty: Limited
