Zone Offroad 14-18 Chevy/GMC 1500 Silverado/Sierra 4WD 6.5in Strut - Alum/Stamped Arms - ZONC60N

SKU: SKU: ZORZONC60N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

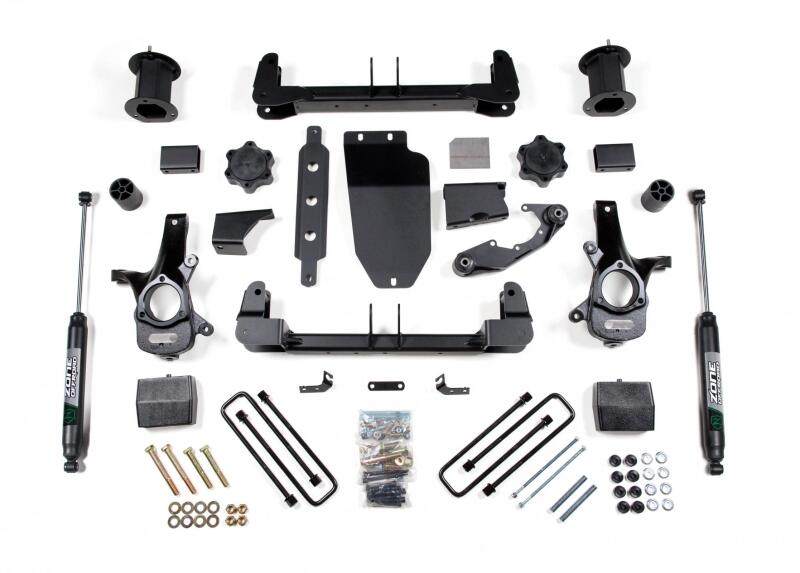

Take your Silverado/Sierra 1500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers, skid plates and steering knuckles to Nitro series gas struts for improved performance with a lifted and leveled out stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Features

  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance
  • FMVSS No.126 compliant to work with your vehicle's stability & traction control systems without lighting up your dash like a Christmas tree
  • High-strength, 1/4" steel construction crossmembers and ductile iron steering knuckles to optimize operating angles
  • Nitro series full length gas struts improve ride quality and offroad damping
  • Multi-point differential relocation brackets and heavy duty skid plate improve CV operating angles and offer added protection
  • Kits are proudly made in the USA

Specifications

Rear Lift Method Cast Blocks
Required Tools Welding Equipment; Wrenches: Standard
Requires Metal Cutting Yes
Requires Welding Yes
Wheel Size 20 x 9
Wheel Size 2 18 x 9
Wheel Size 3 17 x 9
Accommodates Factory Wheels See Notes
Adjustable No
Back Spacing 5-5.75"
Back Spacing 2 5"-5.25"
Back Spacing 3 5"
Finish Powdercoat
Front Lift Height 6.5"
Front Lift Method Replacement Strut
Installation Difficulty 4 out of 5
Installation Time 8 hrs
Lift Type Lift Kit
Material Steel
Max Tire Size 35 x 12.5
Max Tire Size 2 35 x 12.5
Max Tire Size 3 35 x 12.5
Rear Lift Height 5"

Warranty: Limited
