SKU: SKU: ZORZONC12F

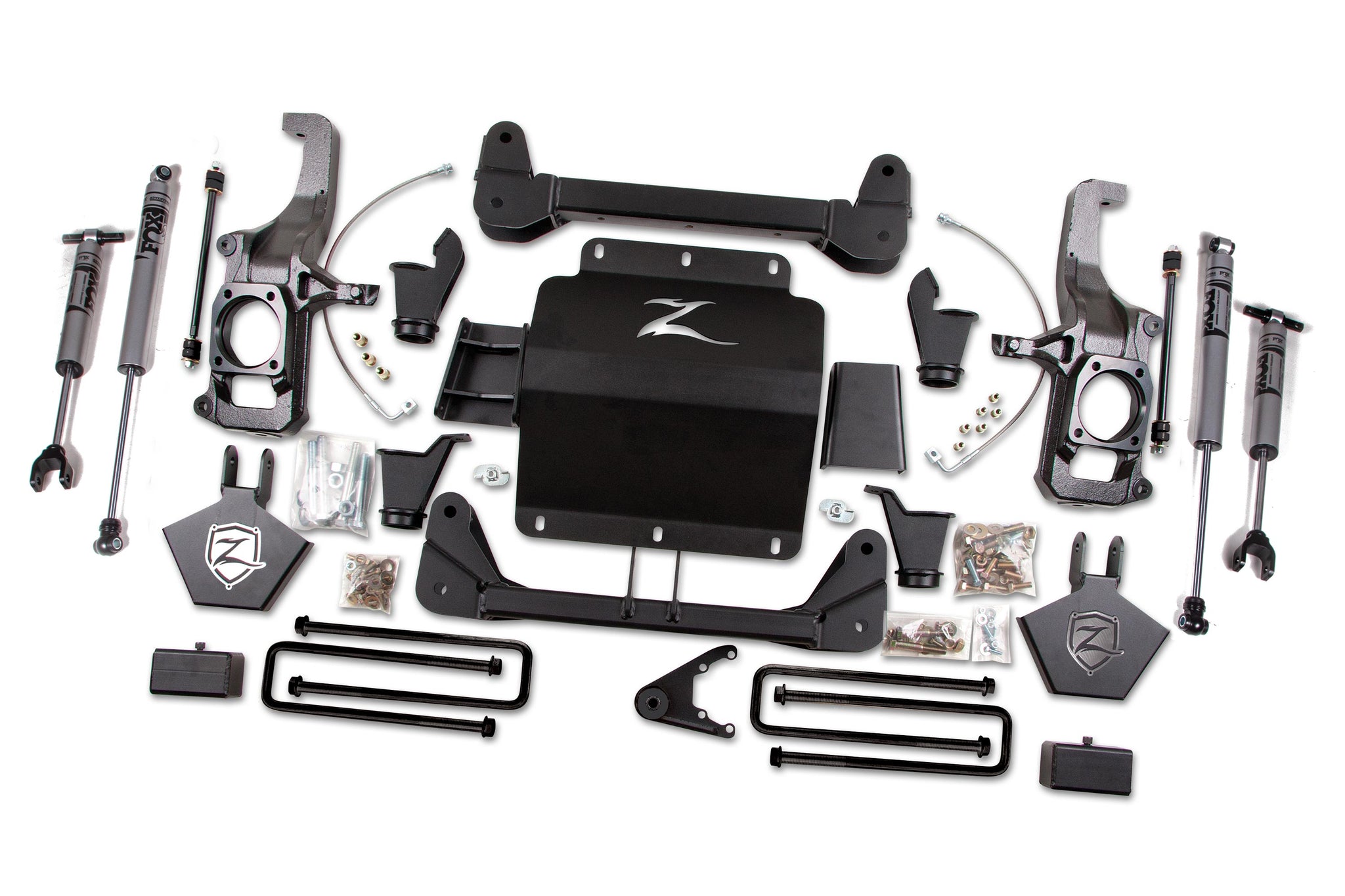

Turn heads and drop jaws with this 5" lift kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 2011 - 2019 Chevy/GM 2500HD /3500HD truck. If you’re going to do it, do it right.
| Installation Difficulty | 4 out of 5 |
| Wheel Size 3 | 20 x 9 |
| Wheel Size 2 | 20 x 9 |
| Wheel Size | 17 x 9 |
| Requires Welding | No |
| Requires Metal Cutting | Yes |
| Max Tire Size 3 | 35 x 12.5 |
| Max Tire Size 2 | 285 x 65 |
| Max Tire Size | 35 x 12.5 |
| Material | Steel |
| Lift Type | Lift Kit |
| Rear Lift Method | Cast Blocks |
| Front Lift Method | Torsion Bar Drop |
| Rear Lift Height | 3" |
| Front Lift Height | 5" |
| Adjustable | No |
| Installation Time | 7 hrs |
| Accommodates Factory Wheels | See Notes |
| Finish | Powdercoat |
| Back Spacing 3 | 6" |
| Back Spacing 2 | 6" |
| Back Spacing | 4.75" |
Warranty: Limited
