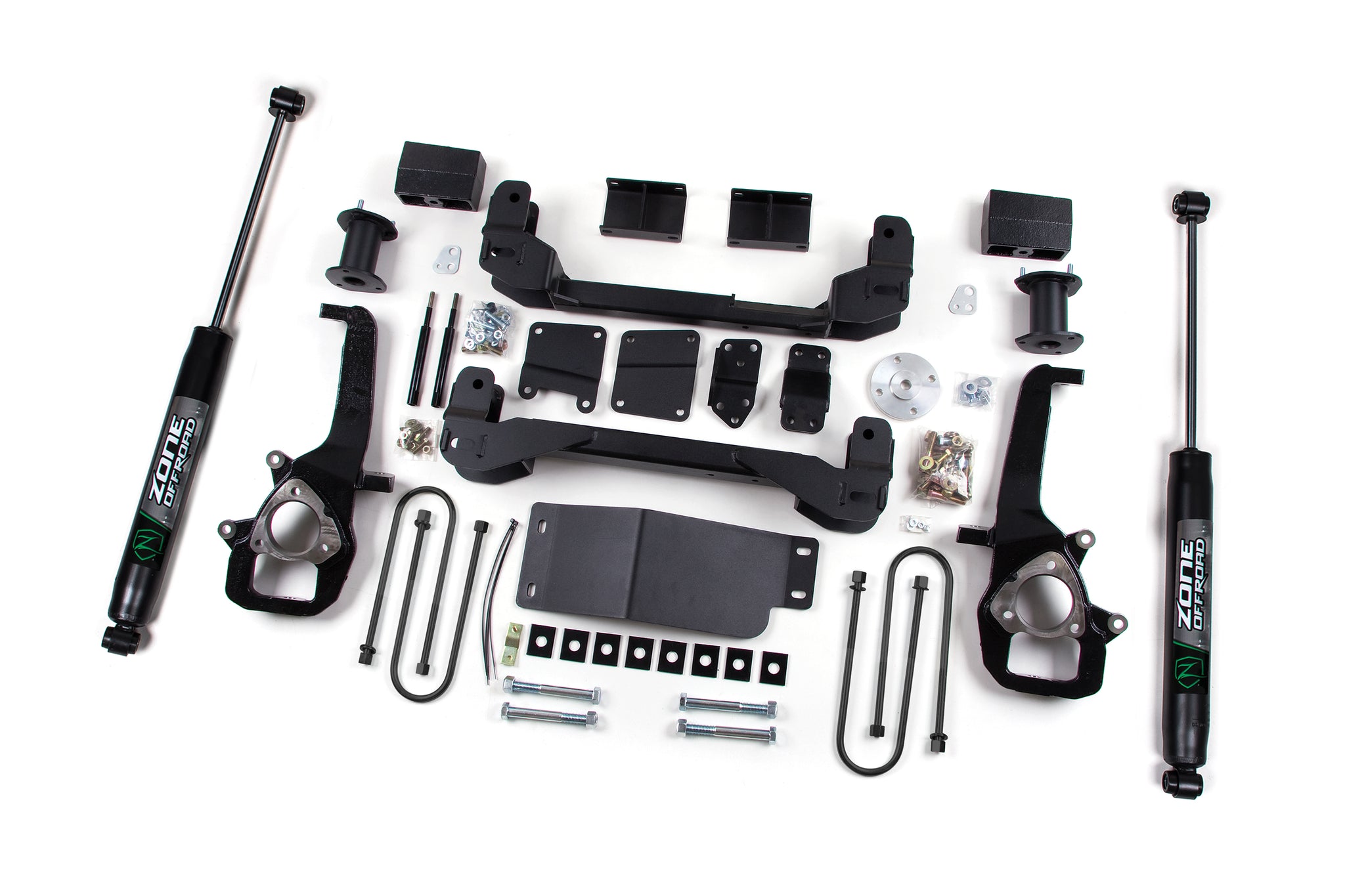

Zone Offroad 06-08 Dodge 1500 4in Suspension System - ZOND3N

SKU: SKU: ZORZOND3N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Make a statement with this 4"Lift Kit that will let you clear those 35" tires. The strut top spacer combined with the rear block kit drastically reduces installation time as well as maintains the factory ride quality for your 4WD 2006 - 2008 Dodge / Ram 1500 Truck.

Features

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential relocation brackets to correct CV operating angle
  • Differential skid plate offers improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Bump stop, sway bar, and brake line relocation brackets to correct operating angles

Specifications

Installation Difficulty 3 out of 5
Wheel Size 3 20 x 9
Wheel Size 2 18 x 9
Wheel Size 17 x 9
Requires Welding No
Requires Metal Cutting No
Max Tire Size 3 35 x 12.5
Max Tire Size 2 35 x 12.5
Max Tire Size 35 x 12.5
Lift Type Lift Kit
Rear Lift Method Cast Blocks
Front Lift Method Strut Spacers
Rear Lift Height 3"
Front Lift Height 4"
Adjustable No
Installation Time 8 hrs
Accommodates Factory Wheels No
Finish Powdercoat
Back Spacing 3 5"
Back Spacing 2 5"
Back Spacing 4.5"

Warranty: Limited
