Zone Offroad 03-06 Jeep TJ 4in Suspension System - ZONJ11N

SKU: SKU: ZORZONJ11N

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

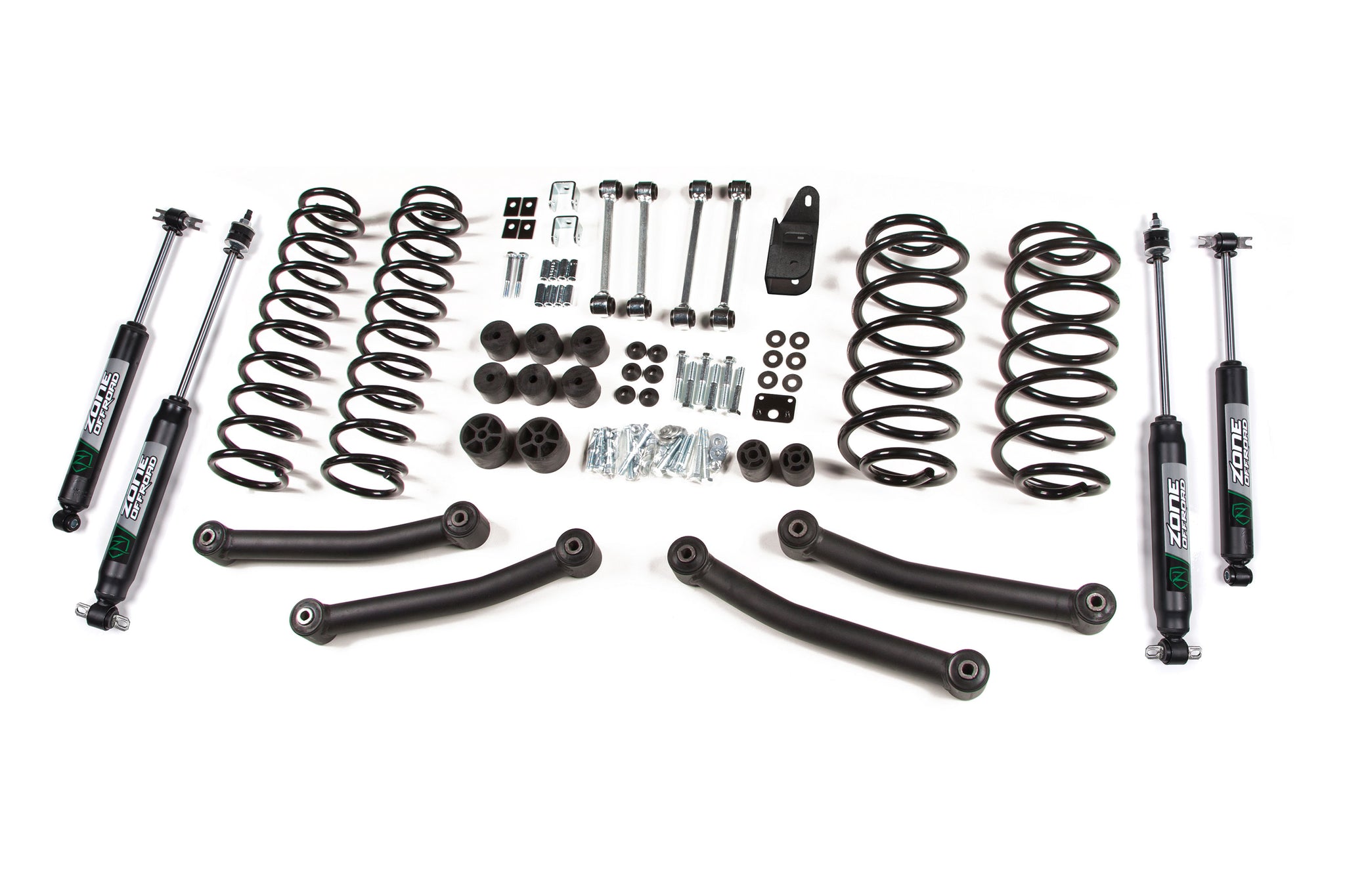

Want the perfect combination of off road performance and on road handling? This 4" Suspension Lift lets you clear 33" tires and have the ground clearance and wheel travel you want when you venture off road. Fits 4WD 2003 - 2006 Jeep Wrangler (TJ).

Features

  • Bump stop extensions properly limit up-travel, protecting your vehicle
  • Full length replacement coil springs add additional ride height while maintaining ride quality
  • Heavy-duty lower control arms improve strength and articulation while correcting caster
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll
  • Rear track bar bracket correctly positions rear axle under vehicle
  • Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft

Specifications

Rear Lift Height 4"
Rear Lift Method Coil Springs
Requires Metal Cutting No
Requires Welding No
Wheel Size 15 x 8
Wheel Size 2 16 x 8
Wheel Size 3 17 x 9
Accommodates Factory Wheels Yes
Adjustable No
Back Spacing 3.5"
Back Spacing 2 3.5"
Back Spacing 3 3.5"
Front Lift Height 4"
Front Lift Method Coil Springs
Installation Difficulty 3 out of 5
Installation Time 6 hrs
Lift Type Lift Kit
Max Tire Size 33 x 12.5
Max Tire Size 2 33 x 12.5
Max Tire Size 3 33 x 12.5

Warranty: Limited
