SKU: SKU: FOX980-02-246

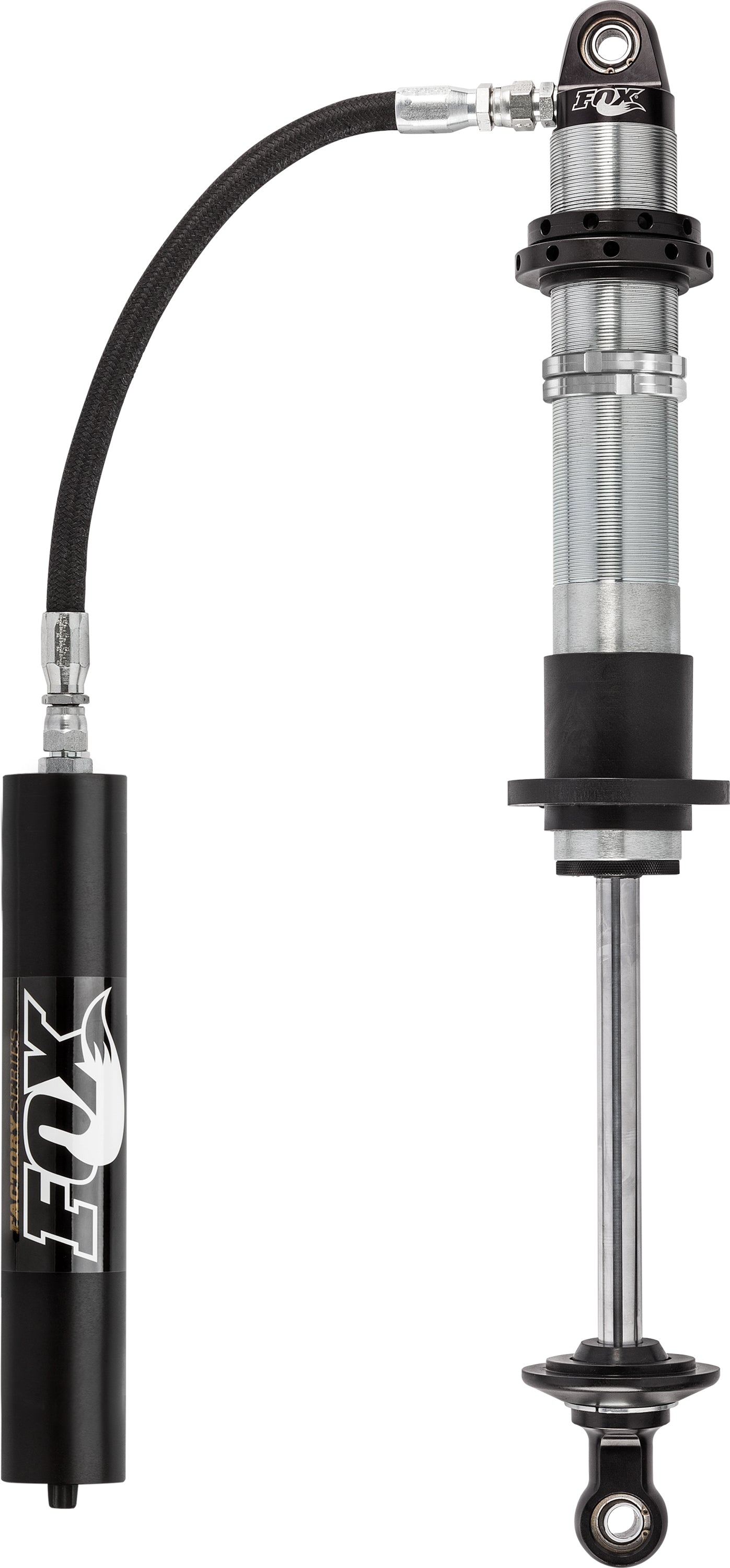

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Fully rebuildable and serviceable.
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.
Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.
Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
| Body Diameter (in) | 2.5 |
| Top Mount | Eyelet |
| Type | Coil-Over |
| Reservoir Type | Remote |
| Series | Factory Race |
| Body Material | Steel |
| Bottom Mount | Eyelet |
| Compressed Length (in) | 16.09 IN |
| Extended Length (in) | 23.96 IN |
| Travel (in) | 7.87 IN |
