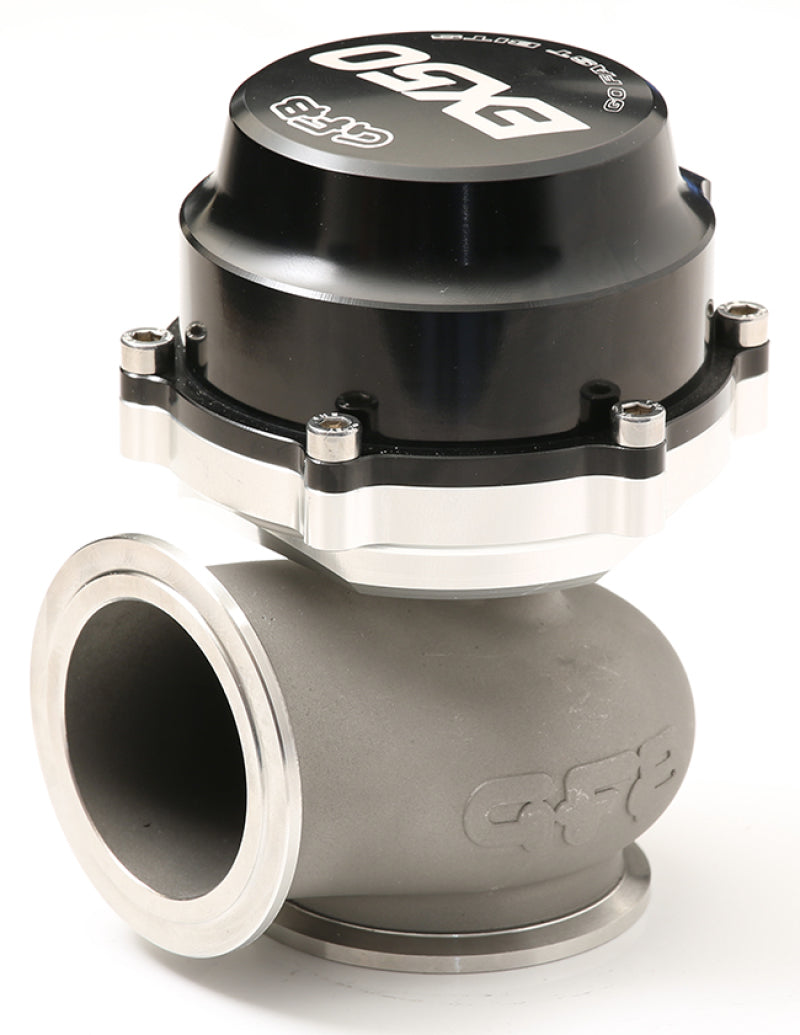

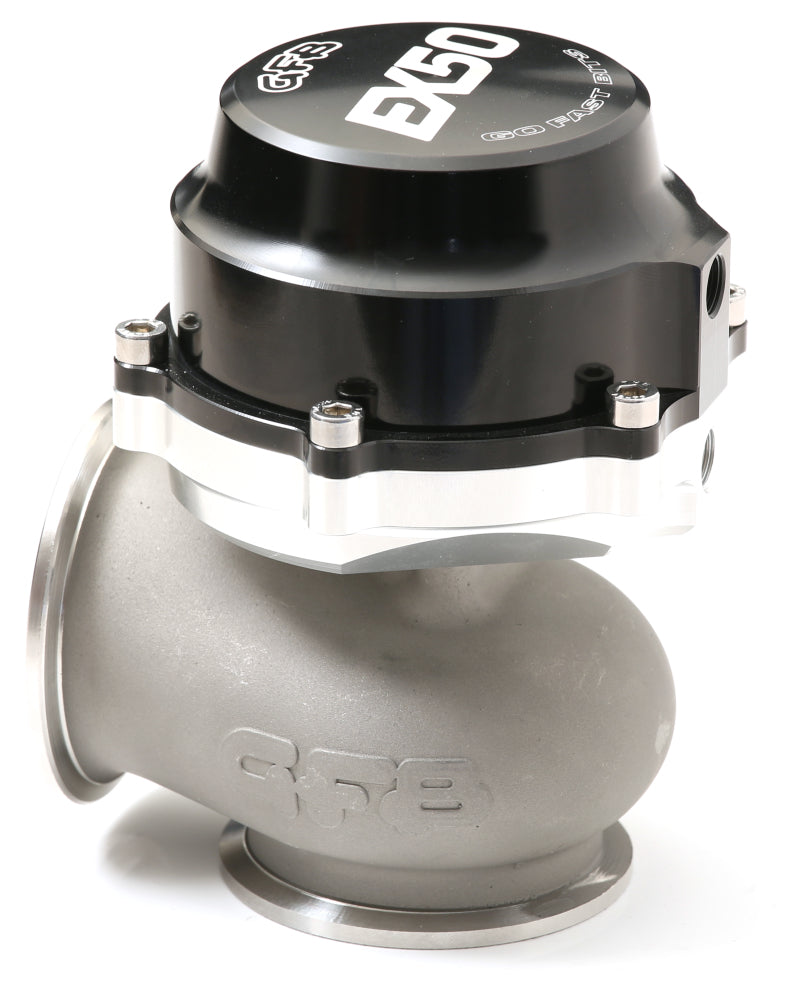

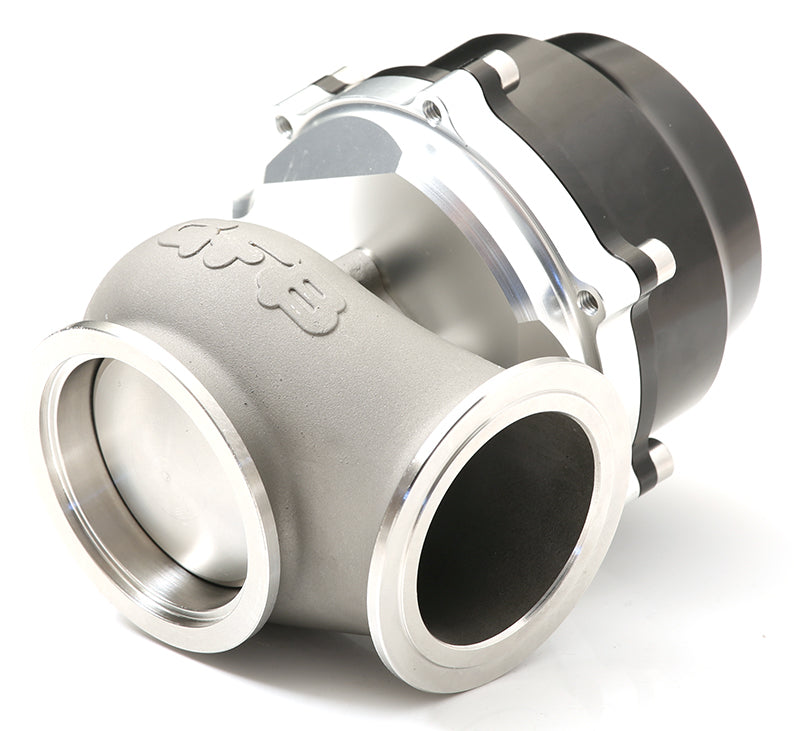

GFB EX50 50mm V-band Wastegate - 7001

EX 50mm wastegate: Universal

Why?

The 7001 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 50MM VALVE, ? V-BAND INLET AND OUTLET, ? 133MM OVERALL HEIGHT, ? SUPPLIED WITH 13PSI (OUTER) SPRING, ? ADDITIONAL SPRINGS AVAILABLE ARE 7PSI (INNER) AND 9PSI (MIDDLE), ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURES OF 7, 9, 13, 16, 20, 22 AND 29PSI,

Features

• Most compact wastegate range on the market. Body
• valve
• seat and all mounting hardware is CNC machined from high-temp stainless steel. Actuator housing CNC machine from billet 6061-T6 aluminuim. Manufactured In Australia under ISO 9001

50mm V-band style external wastegate.

Warranty: Limited lifetime

Proudly Australian.
