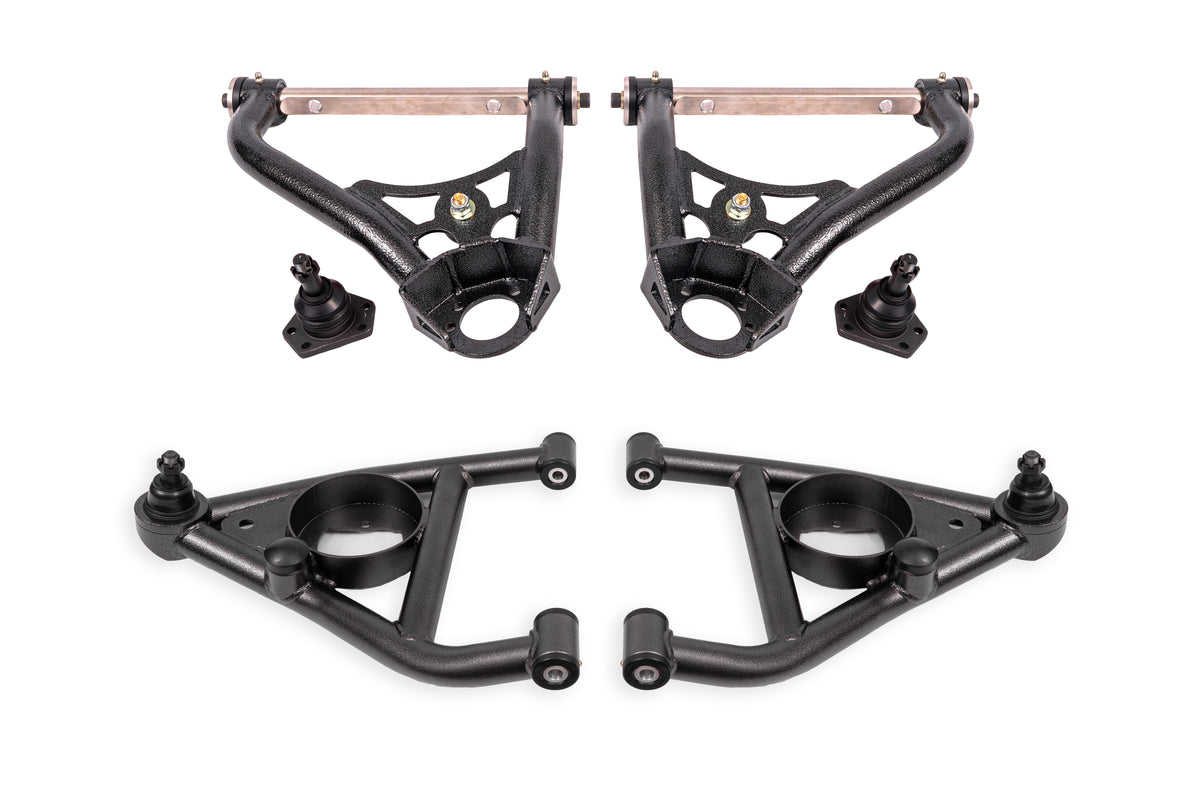

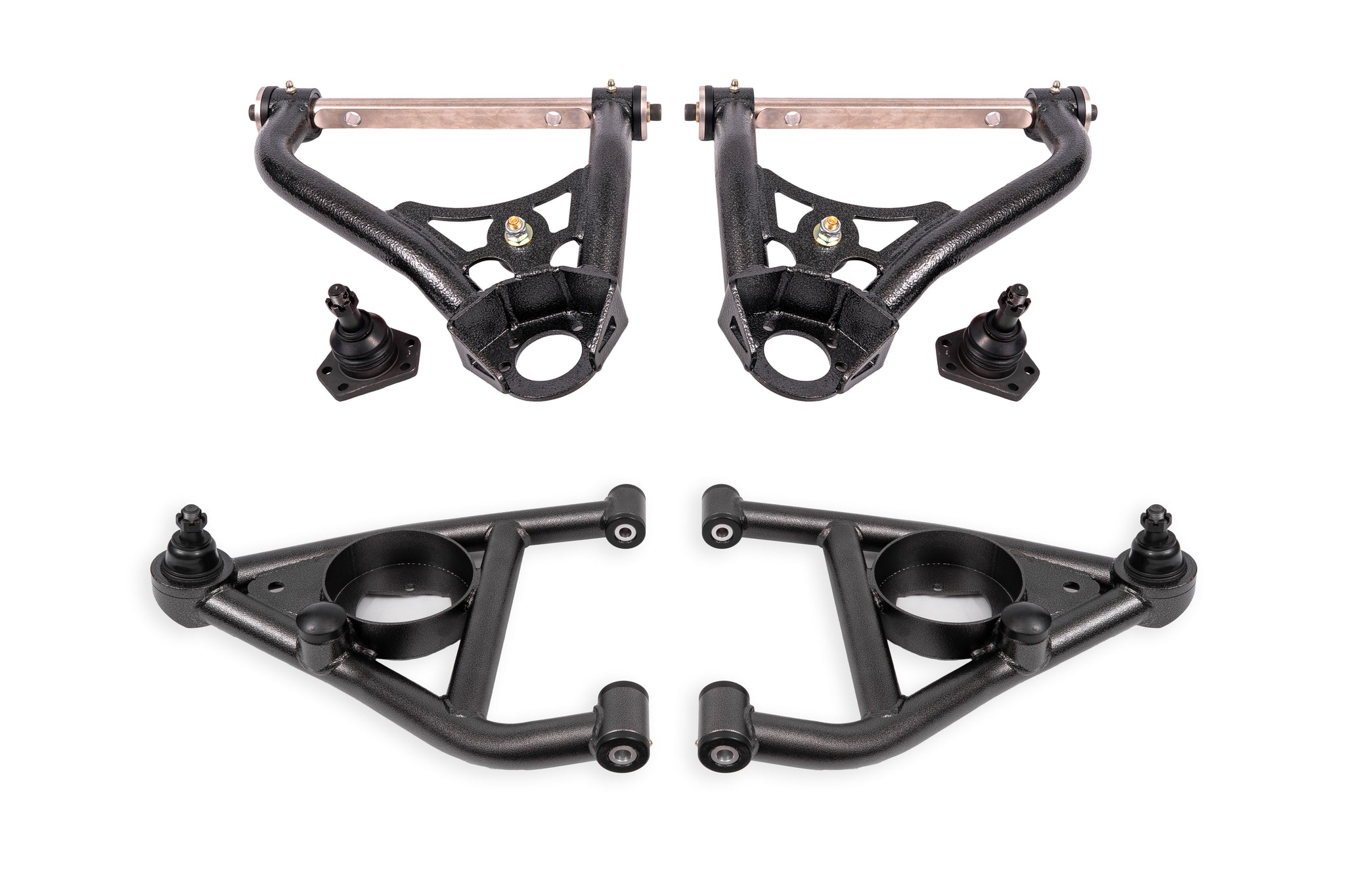

BMR 67-69 GM F-Body / 68-74 X-Body Non-Adj. Upper & Lower A-Arms (Polyurethane) - Black Hammertone - AAK311H

Improve handling and front-end stability on your 1967-1969 F-Body and 1968-1974 X-Body with an A-Arm Kit from BMR's suspension! Factory A-arms and bushings can cause deflection, resulting in changes in alignment and reduced performance. BMRs A-Arm Kit (AAK311) featuring Non-Adjustable Upper (AAU311) and Lower A-Arms (AAL311) greatly improve steering feel and response and is designed for street performance, drag racing, and handling applications. When performance is a must, rely on BMR's suspension!

Features

• Designed for vehicles where the bump stops are located on the front sides of the lower A-arms
• Manufactured from heavy-duty 1.25-inch, 0.095-inch wall and 1.625-inch, 0.120-inch wall DOM tubing
• Laser-cut, CNC-formed plate steel braces
• Greaseable, internally fluted Delrin bushings
• Includes new ball joints
• Preassembled with new polyurethane bump stops
• Dual-offset cross-shafts for minimizing shim stack on AAU311
• Eliminates A-arm deflection
• Non-adjustable
• Requires less shim stack for negative camber than factory arms
• Provides 4 additional degrees of positive caster
• Additional header clearance
• Improves geometry and increases lateral grip during cornering situations
• Available in red or black hammertone powder coat for long lasting good looks
• 4-5 hour installation time
• Proudly designed in the USA!
• Proudly made in the USA!

📄 AAK311.pdf (Installation Guide)
