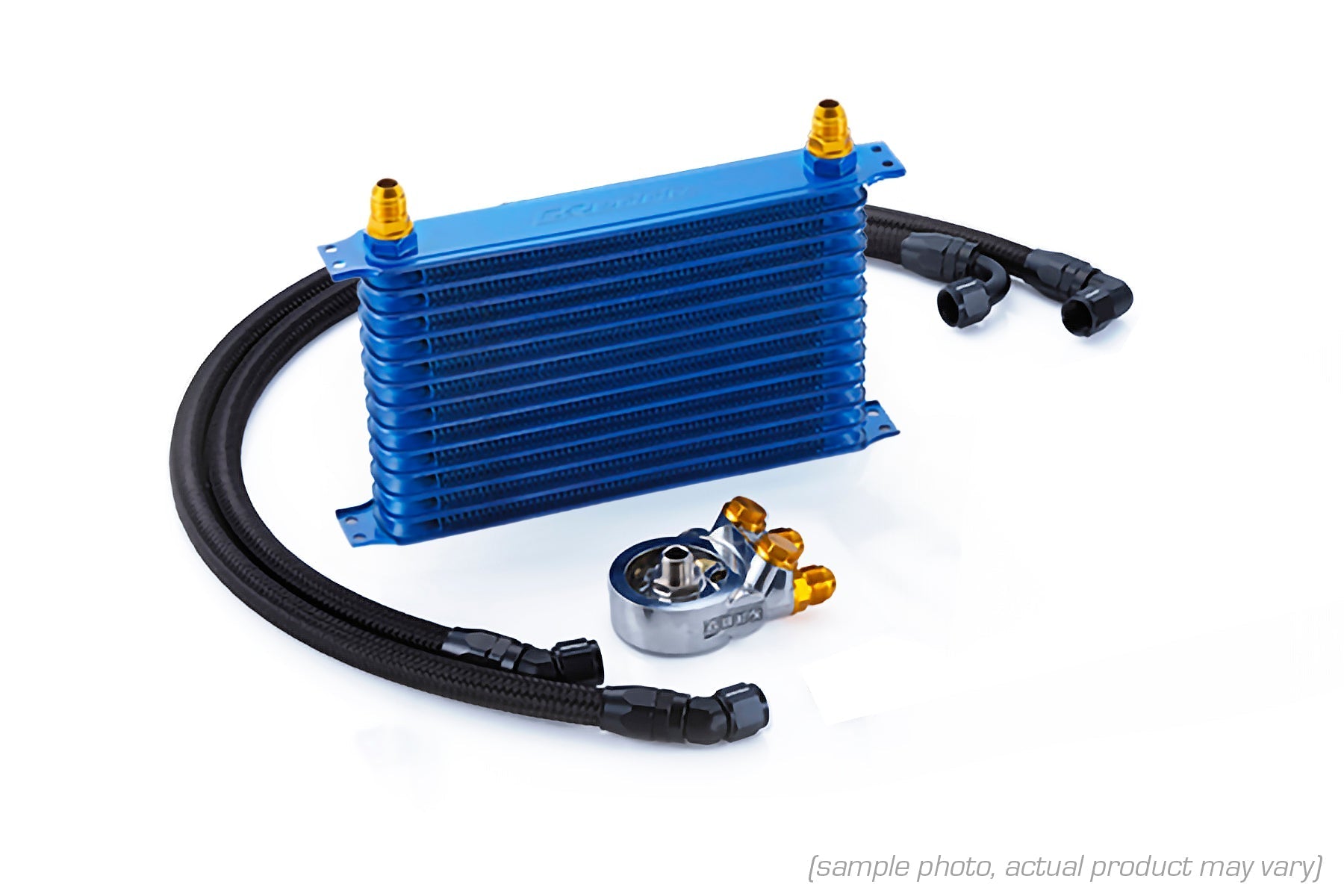

GReddy 83-87 Toyota AE86 4A-GE 13-Row Oil Cooler Kit with Shroud - 12014602

Oil cooler kit STD 13row for AE86 Corolla (4A-GEU)

Product features

• This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Requires Trust EX manifold (genuine EX manifold not acceptable). AT vehicles unverified.
• Core type: NS1310G
• Thermostat: Built-in block
• Core installation location: In front of Radiator
• Center bolt size: 3/4-16UNF

Compatible models: JDM AE86

• Vehicle model: Corolla
• E/G model: 4A-GEU
• Year: 1983 05 〜 1987 05
• CODE:12014602

remarks:

• Reinforce requires cutting modification
• Radiator upper air guide plate requires modification.

• Engines with center bolt size 3/4-16 UNF (GReddy oil filtersOX-01, OX-02, and OX-03 are compatible).
