SKU: SKU: HKS31029-AT005

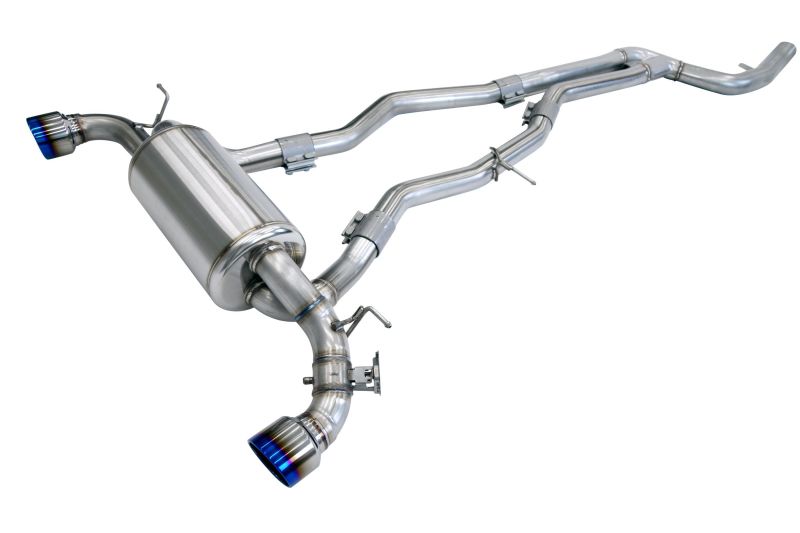

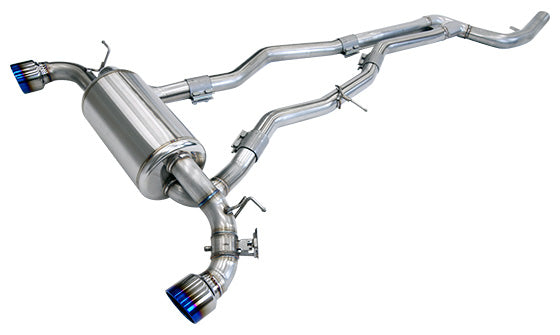

Super Turbo Muffler
Vehicle: GR SUPRA
Application
Specifications
GR SUPRA 3BA-DB22 Comply with a Japanese vehicle inspection Having both maintaining a comfortable sporty sound along with suppressing unpleasant sounds that occurred at the normal rpm range. Straight structure without narrow part achieved low back pressure and it meets the strict noise regulations in Japan. Stock Exhaust Valve Compatible Employing the structure that allows the reinstallation of the stock exhaust valve motor. Switching Sports/Normal mode can continue to use from the stock muffler. Cert. No. JARI10200019P Vehicle GR SUPRA Model DB22 Engine B48B20B Model Year 19/05 - 22/09 Shape of muffler SSR (Super Turbo Muffler) Main material S304 Diameter of tip 110 L&R Diameter of center pipe 70 x 2 (*1) Close noise level Stock 81 HKS 91 About road clearance(*2) Clearance 110mm Portion of the kit Mid pipe Remarks *ハイパーマックスツーリング装着車 Product Weight 24.1kg Remarks • For SZ-R grade. ･ W/O Center Silencer. • 3BA-DB26 made after Oct. 2022 does not comply with Japanese car inspection regulations. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. Howeve
Source: HKS Japan · Detail page
