SKU: SKU: HKS32016-AH031

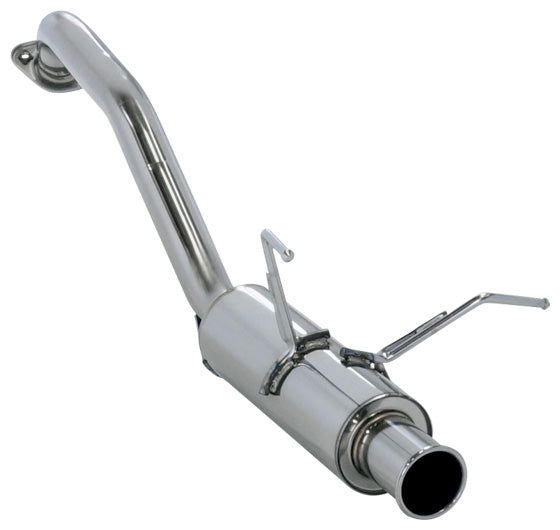

HKS Silent Hi-Power GP5 LEB-H1 FIT HYBRID
Experience the sporty appearance and robust sound
of a naturally aspirated engine with the straight structure that provides a snappy response and robust sound quality of a naturally aspirated engine. The straight structure has little exhaust resistance, and is inspection-compliant, so you can use it with peace of mind.
| Certification number | JQR10141052 |
|---|
| Model name | fit |
|---|---|
| Model | GK5 |
| Engine type | L15B |
| Model year | 13/09 - 20/01 |
| Muffler shape |
HP (TYPE-H) (silent Hi-Power) |
|
|---|---|---|
| Main Material | S304 | |
| Tail Outer Diameter | 65 | |
| Intermediate Pipe Diameter | 50 (※1) | |
| Nearby exhaust noise | normal | 80 |
| HKS | 92 | |
| Regarding ground clearance when installed (※2) | Number | 180mm |
| Kit target area | Main Shell | |
| remarks | ||
| HKS product weight | ||
Main only. Not compatible with 4WD and CVT. Cannot be installed on vehicles with Mugen rear under spoiler. Can be installed on vehicles manufactured after June 2017 by using genuine rubber "18215-S84-A30" or HKS rubber "17459-002100".
*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).
*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.
Note: Hooks, brackets, and stays are subject to change without notice.
*Exhaust volume at idling
