SKU: SKU: HKS32018-AF013

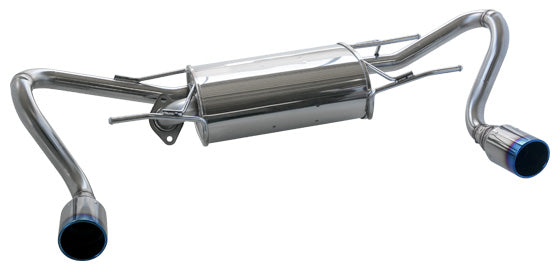

HKS LEGAMAX Premium GP7 IMPREZA SPORT
Powerful large-diameter titanium tail and pleasant boxer sound
By placing large-diameter titanium tails on the left and right,
the Impreza Sport is given a powerful form, creating a wild and sporty atmosphere
. This premium vehicle has been silenced mainly for city driving so that it does not lose comfort even when carrying a large number of people on trips or for pick-up and drop-off. You can enjoy a
mild boxer sound at low speeds in the city and a pleasant boxer sound at high speeds on highways and mountain passes.
| Certification number | JQR10151226 |
|---|
| Model name | Impreza Sports |
|---|---|
| Model | GP7 |
| Engine type | FB20 |
| Model year | 11/11 - 16/09 |
| Muffler shape |
Ti-1 (Titan) (LEGAMAX Premium) |
|
|---|---|---|
| Main Material | S304 | |
| Tail Outer Diameter | 90L&R | |
| Intermediate Pipe Diameter | 50-45 x 2 (※1) | |
| Nearby exhaust noise | normal | 75 |
| HKS | 83 | |
| Regarding ground clearance when installed (※2) | Number | 145mm |
| Kit target area | Intermediate shell | |
| remarks | ||
| HKS product weight | ||
*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).
*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.
Note: Hooks, brackets, and stays are subject to change without notice.
*Exhaust volume at idling
LEGAMAX Premium
Vehicle: IMPREZA SPORT
Application
Specifications
IMPREZA SPORT DAA-GPE Cert. No. JQR10151226 Vehicle IMPREZA SPORT Model GPE Engine FB20-MA1 Model Year 15/06 - 16/09 Shape of muffler Ti-1 (Titan) (LEGAMAX Premium) Main material S304 Diameter of tip 90L&R Diameter of center pipe 50-45 x 2 (*1) Close noise level Stock 76 HKS 83 About road clearance(*2) Clearance 145mm Portion of the kit Center silencer Remarks Product Weight Remarks For vehicle with stock bumper for Hybrid model. Rear bumper skirt does not compatible. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
Source: HKS Japan · Detail page
