SKU: SKU: HKS80310-AZ003
Application
Specifications

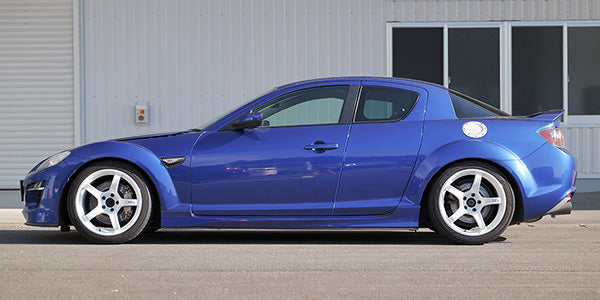

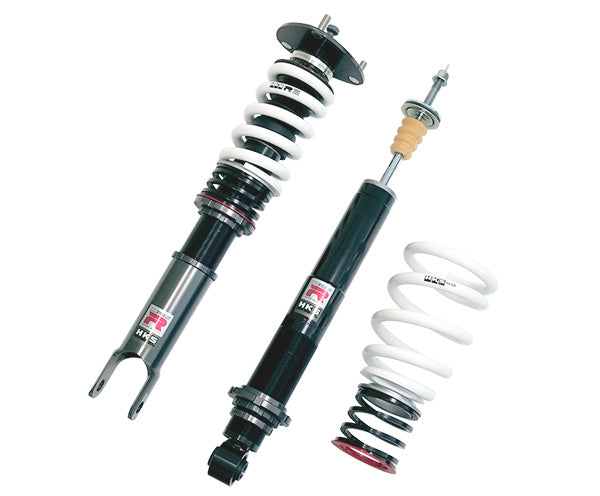

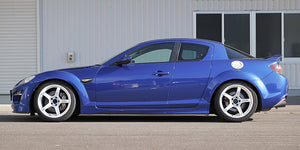

RX-8 SE3P The fun of controlling it at will and the versatility to adapt to anything from circuits to winding roads The ultimate multi-performer with a refined ride feel
Features

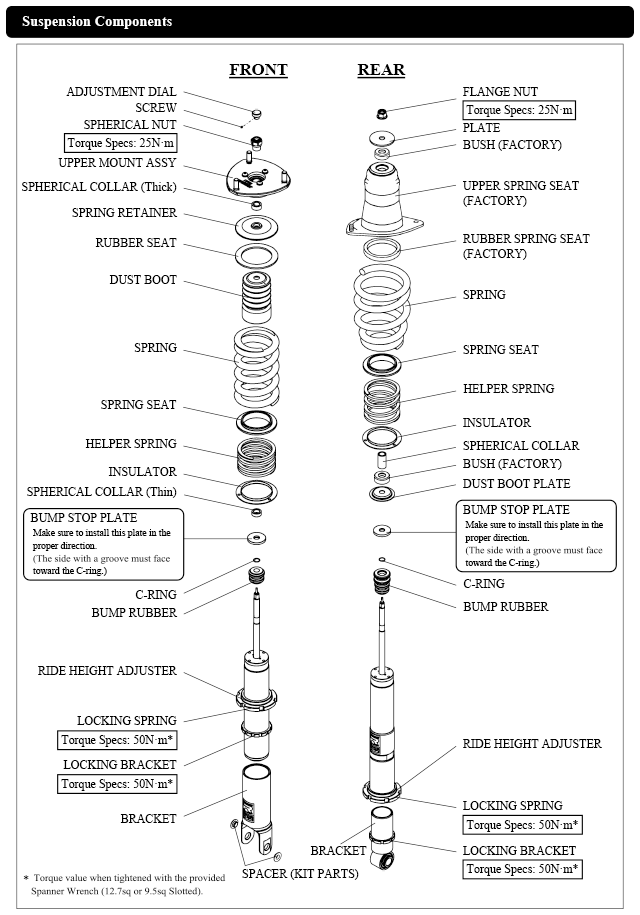

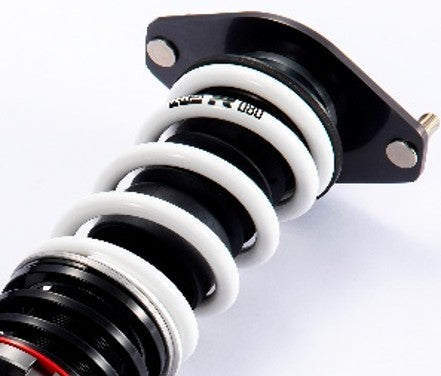

Utilizing the latest technology, we have succeeded in achieving a higher spring rate, while keeping everyday use in mind, and have been able to improve driving performance. The structural weaknesses of the rear have been resolved with new dedicated parts, allowing for a wide range of vehicle height adjustment and the use of longer springs. Compared to the MAX IV SP, the shape has evolved to make vehicle height adjustment easier, as it does not require removing and installing the springs to adjust the rear height. The adoption of a new dedicated rear part, the helper spring, ensures sufficient extension stroke, and is designed to increase grip of the inside rear tire on the circuit. Application Engine 13B-MSP Model Year 03/04 - 12/06 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Stock Inverted/Normal type Normal Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Impossible Damping force adjustment with wire - 〇 Helper spring (Spring rate N/mm) 〇 (19.8) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Lo
Source: HKS Japan · Detail page
