SKU: SKU: HKS80260-AT004
Vehicle: Model
Application
Specifications

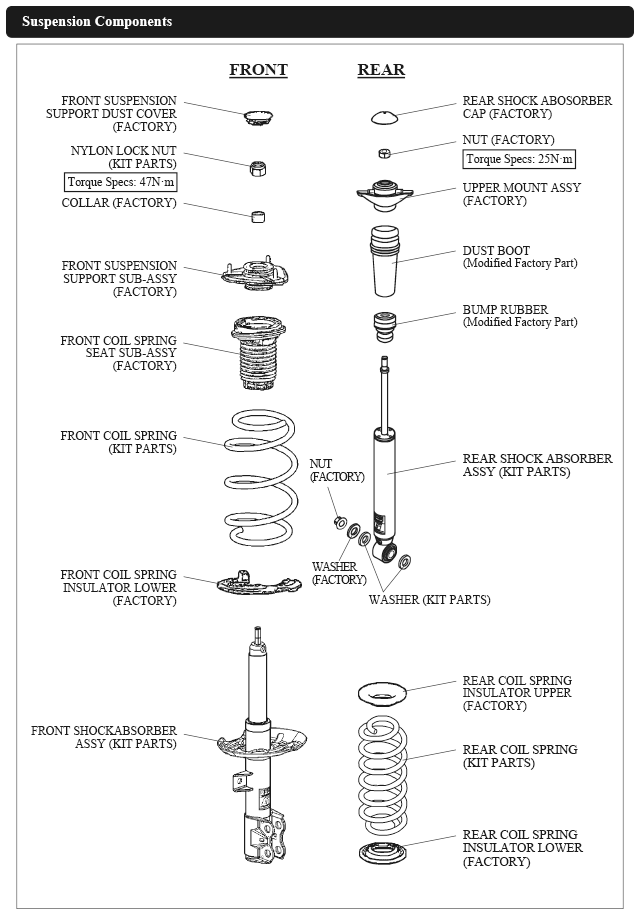

PRIUS ZVW51 ~ For Obsession with High Quality ~ Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design. for PRIUS (ZVW50/ZVW51) ＜Product Basic Structure＞
Single

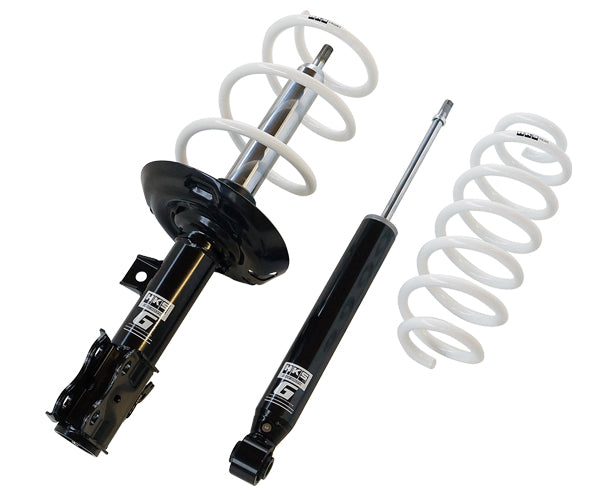

Tube Damper Assembly
Special
Low-down Style Spring *The stock upper mounts are used.
Features
Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height. The front stock design inverted mono tube damper delivers high rigidity and reliable handling performance. Damper setting was performed with the best spring rate to ensure better ride quality and comfort so a driver won’t be tired even in long time driving. The excessive body roll of a vehicle during cornering and unstable driving in high speed driving are reduced to deliver a well-balanced ride quality and handling.
Kit
Parts Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks F: Rebound/Compression R: Rebound/Compression PRIUS ZVW51 2ZR-FXE(2ZR-1NM) 15/12 -22/12 G F=25(2.6)/R=37(3.8) Special/Special 324/108 343/127 -21 -18 80260-AT004 Make to order item 2WD [ CLOSE ]
Source: HKS Japan · Detail page
