SKU: SKU: HKS80300-AT030
S (-2025)
Application
Specifications

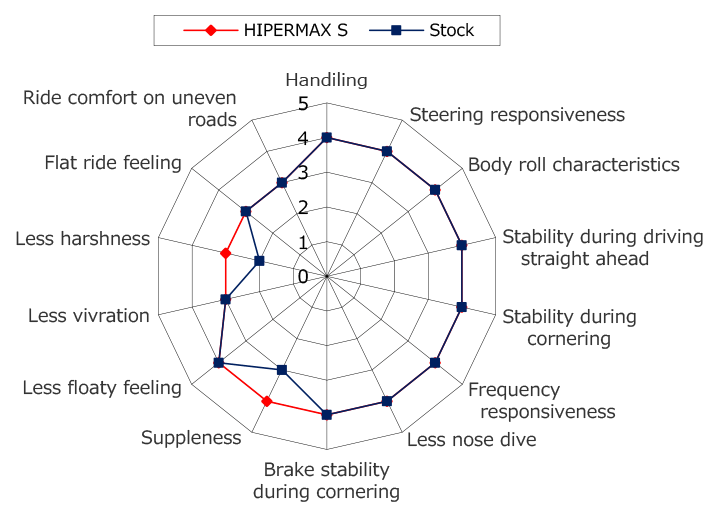

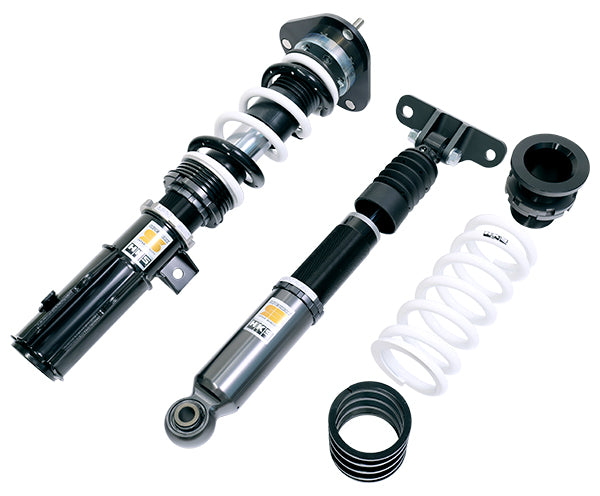

GR COROLLA GZEA14H The long-awaited pillow ball upper mount version of the HIPERMAX S for GR Corolla is here! With the same high performance of the HIPERMAX S, camber adjustment is now possible (up to approx. 4°), greatly increasing flexibility in setup and wheel matching. HKS has focused on improving everyday ride comfort while maintaining the excellent handling characteristics of the stock suspension, aiming to deliver a superior driving feel. The ride height is set to strike the perfect balance between stylish appearance and comfort. From daily commuting to weekend drives, this suspension system is designed to handle it all with ease and versatility. With redesigned internal components, it offers enhanced durability and comes with a 3-year/60,000 km warranty. The system is also overhaul-compatible, and with full after-sales support, you can enjoy long-term use with confidence. Application Engine G16E-GTS Model Year 22/12 - Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Impossible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) 〇 (7.6) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivab
