SKU: SKU: HKS80330-AF020P
Application
Specifications

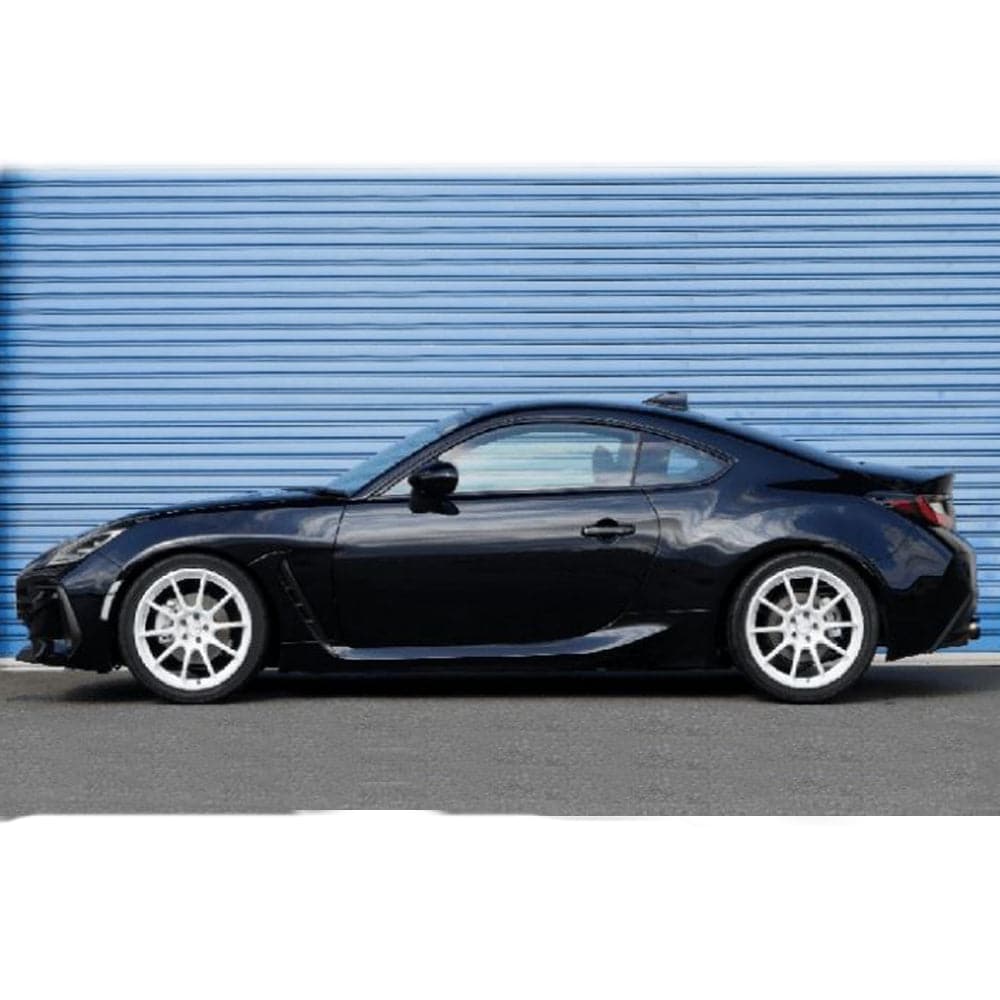

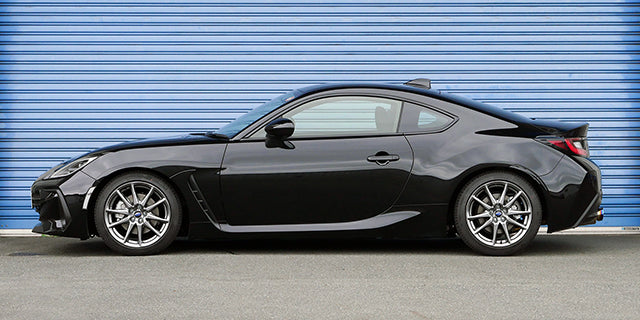

BRZ ZD8 A New Dimension of Driving Comfort Application Engine FA24 Model Year 21/08 - Remarks MT, with pillow ball upper mounts on the front. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 636 ← 663 ～ 614 663 ～ 614 Against stock -27 ← 0 ～ -49 0 ～ -49 REAR Ride height *1 642 ← 670 ～ 609 670 ～ 609 Against stock -28 ← 0 ～ -61 0 ～ -61 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehicle. Kit
Source: HKS Japan · Detail page
