SKU: SKU: GFB8050

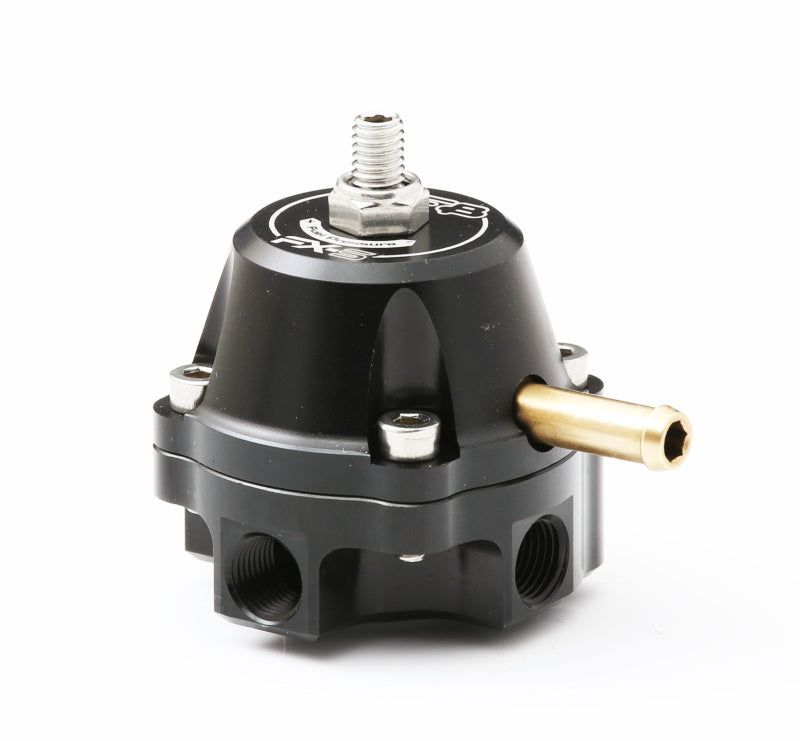

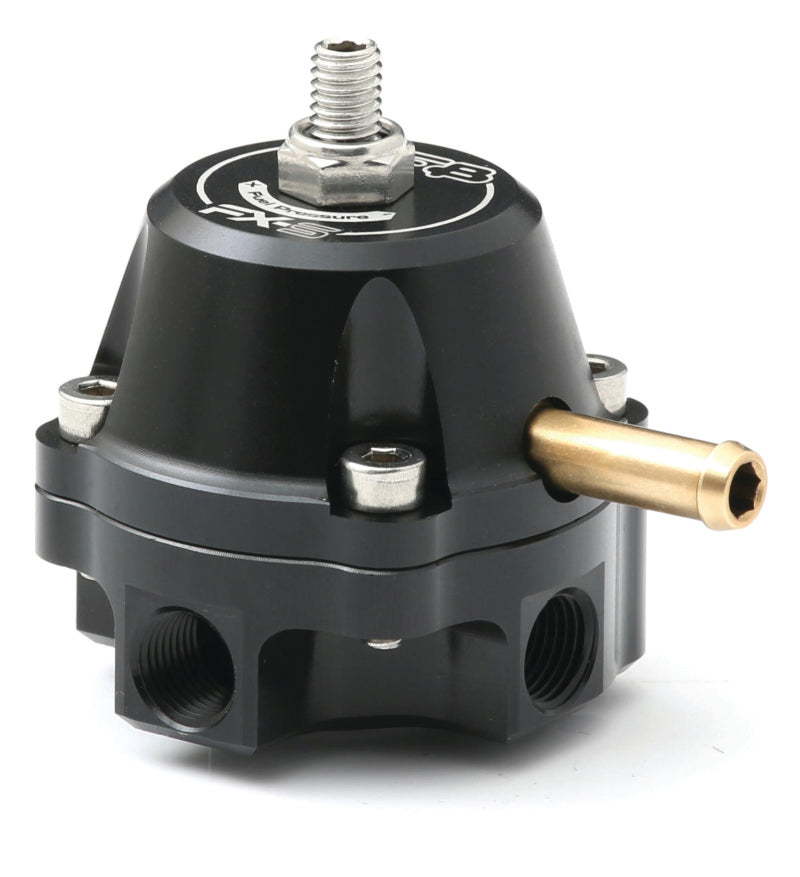

Fuel Pressure Regulator-compact & large flow Universal
Unlike others that use a metal-to-metal valve seat, the FX regulators feature a replaceable soft Teflon valve seat that helps retain fuel pressure longer after the car is shut down for easier re-starting. We even went to the trouble of adding an o-ring sealed spring hat to ensure no boost/vacuum leakage through the spring adjusting screw
All FX regulators have a 1:1 fuel pressure rise rate and a base pressure range from 28-72psi (2-5BAR). GFB's Fuel Pressure Regulators are built with the same precision, machining quality, and reliability that is the foundation of all GFB products. The multiple ports allow for a variety of fuel system setups including multiple rails and gauge/pressure sensor monitoring
Internally, like all GFB products you'll find unique features and small touches that make the difference between a good product, and a great one. For example, we use a double-layer, double-reinforced diaphragm with a burst strength exceeding 1000psi (68BAR)!, The inlet ports can be used in any configuration for fuel inlet (i.e. multiple rails) and pressure measurement (i.e. mechanical gauge and/or electronic pressure sensor). This allows great flexibility for installation because the fuel lines and gauge/sensor can be mounted in the most appropriate inlet port.
FX-S Street version Fuel Pressure Regulator is capableof flowing enough fuel for up to 800hp,and features four 1/8" NPT inlet ports and one 1/8" NPT outlet port The compact size of the GFB FX regulators conceals a large flow capacity.
Warranty: Limited lifetime
Proudly Australian.
