SKU: SKU: EDE174022

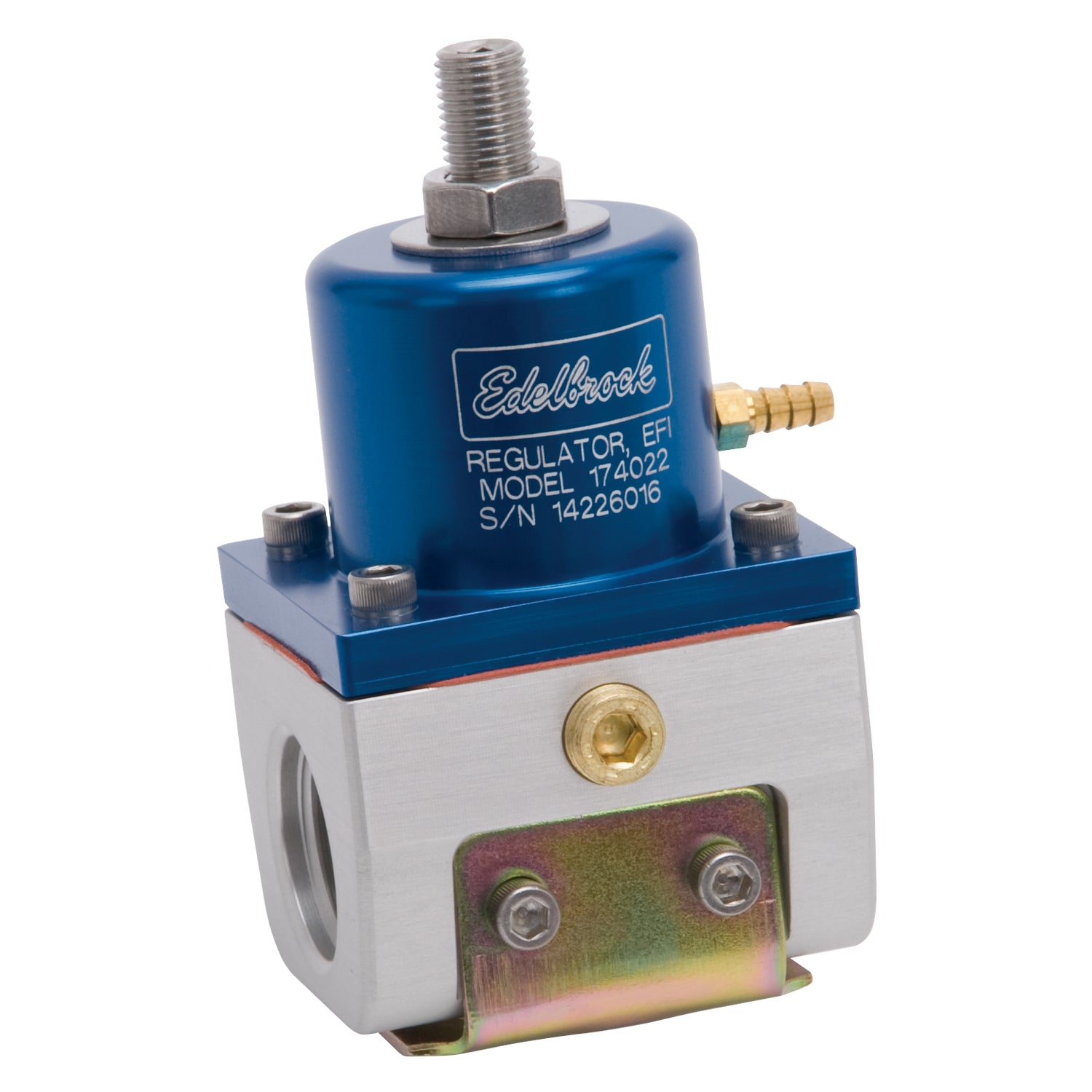

Edelbrock fuel pressure regulators #174022 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.
Edelbrock fuel pressure regulators #174022 is machined from high quality aluminum. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Will hold fuel pressure for at least 20 min after pump shutdown.
| Mounting Type | Bracket |
| Inlet Port Diameter | -10.0 IN |
| Outlet Type | Port |
| Adjustable | Yes |
| Maximum Pressure Reading | 90 PS |
| Gauge Port | Yes |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Port Quantity | 4 |
| Outlet Port Diameter | -10.0 IN |
| Inlet Type | Port |
California Prop 65 Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
